L800/L801 Revision A
Disassembly/Reassembly Ink Supply Tank Assy 64
Confidential
1.6.6 Ink Supply Tank Assy 1.6.7 Ink Supply Tank Tube Assy

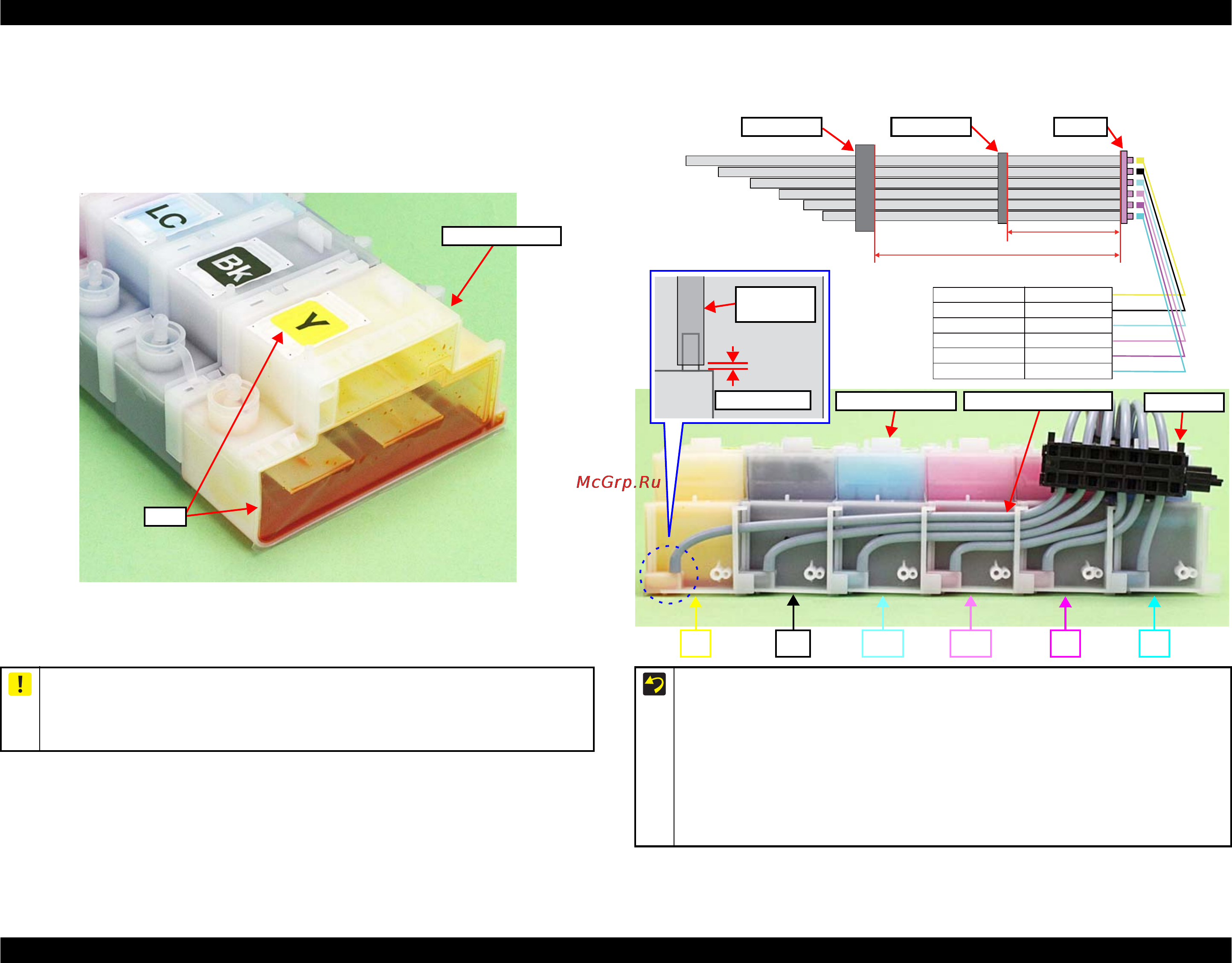

Be careful not to damage or peel off the film of the Ink Supply Tank.
Be careful about how to place the Ink Supply Tank Assy in order to prevent printing
failure from occurring. (See “How to place the Ink Tank Assy when disassembling/
reassembling” (p.10).)
Film
Ink Supply Tank
Route the Ink Supply Tank Tubes with the red lines facing upward (as viewed when
the Ink Supply Tank Assy is installed on the printer) and connect them to the Ink
Supply Tank Assy without any twist.
When connecting the Ink Supply Tank Tubes to the Ink Supply Tank, confirm the
color indicated on the film of the Ink Supply Tank, and take care not to connect them
with wrong joints.
When connecting the Ink Supply Tank Tubes to the Ink Supply Tank, insert the tubes
to the full and make sure the gaps between the end of tubes and the tank are 0.5 mm
long or less.
Black
Magenta
Yellow
Cyan
120 ± 1 mm
359 ± 4 mm
280 ± 3 mm
Light Magenta 310 ± 3 mm
388 ± 4 mm
258 ± 3 mm
Light Cyan 333 ± 3 mm
211 ± 1 mm
Ink Supply
Tank Tube
0.5 mm or less
Valve Case Tube Clamp Joint
Valve Case
Ink Supply Tank Tubes
CMLMLCBkY
Ink Supply Tank
