L800/L801 Revision A
Disassembly/Reassembly APG Unit 41
Confidential

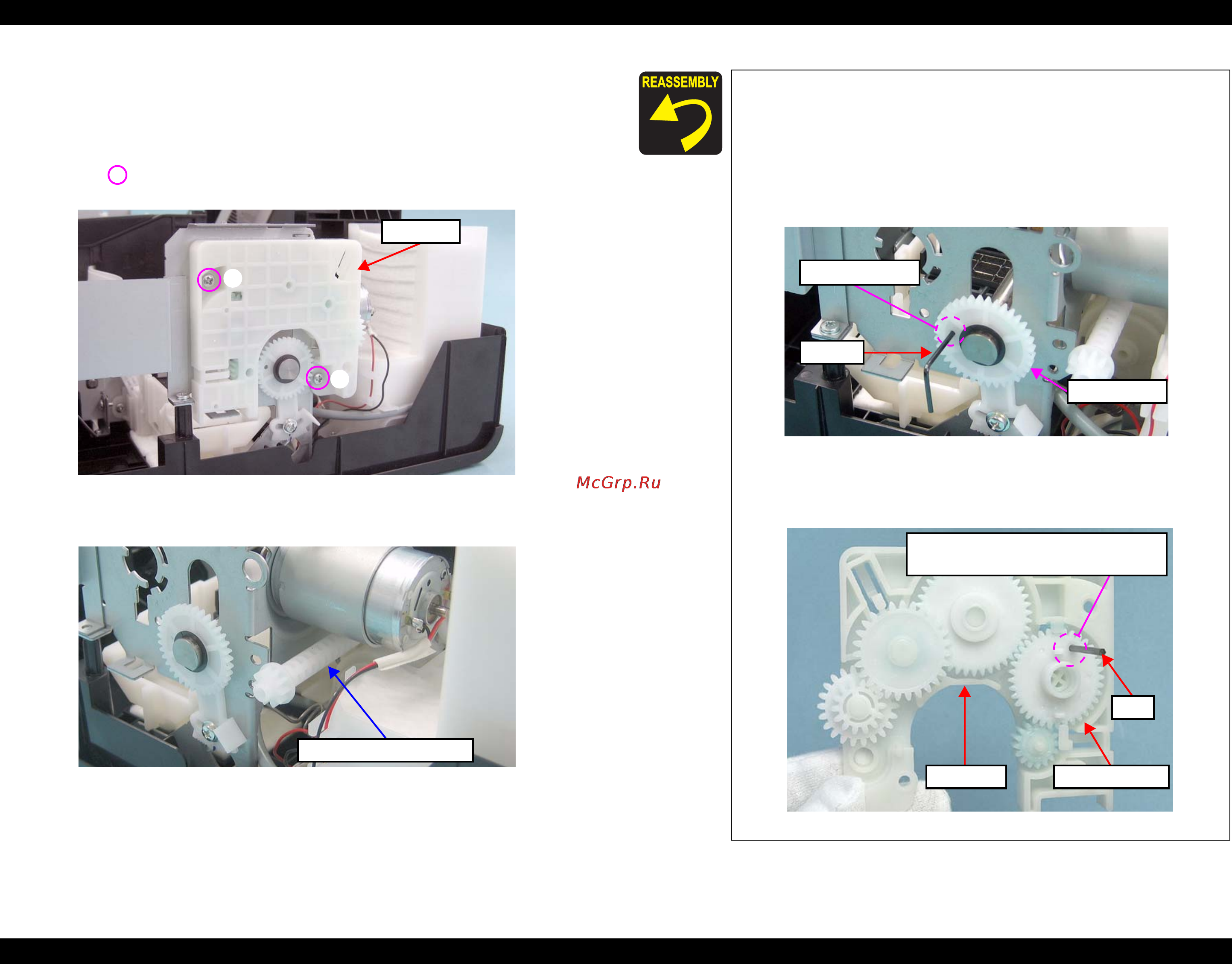

1.5.4 APG Unit
Removal procedure
1. Remove the two screws taking care not to lose the gears, and remove the APG
Unit.
• Screw : C.B.S. M3x6 (tightening torque: 7-9 kgf.cm)
(The numbers shown in the figure indicate the order of tightening the screws.)
Figure 1-57. Removing the APG Unit
2. Remove the Combination Gear (10, 15.2).
Figure 1-58. Removing the Combination Gear (10, 15.2)
1
2
APG Unit
Combination Gear (10,15.2)
Lubrication is required. See the page given below for the
lubrication information.
Lubrication of APG Unit (p.93)
Install the APG Unit following the procedure below.
1. Put a pin (thinner than Ø2mm) through the positioning
holes of the Main Frame and the right PG Cam on the CR
Shaft.
Figure 1-59. Reinstalling the APG Unit (1)
2. Put the pin through the positioning holes of the Spur gear
28.8 and the APG Unit.
Figure 1-60. Reinstalling the APG Unit (2)
Pin (1)
Positioning Hole
Right PG Cam
Spur Gear 28.8
APG Unit
Pin
Front: Positioning Hole of Spur Gear 28.8
Back: Positioning Hole of APG Unit
