L800/L801 Revision A
Disassembly/Reassembly PF Scale Cover / PF Scale Sheet 66
Confidential
1.6.10 PF Scale Cover / PF Scale Sheet 1.6.11 Tube Guide Sheet / Tube Guide Sheet Sub

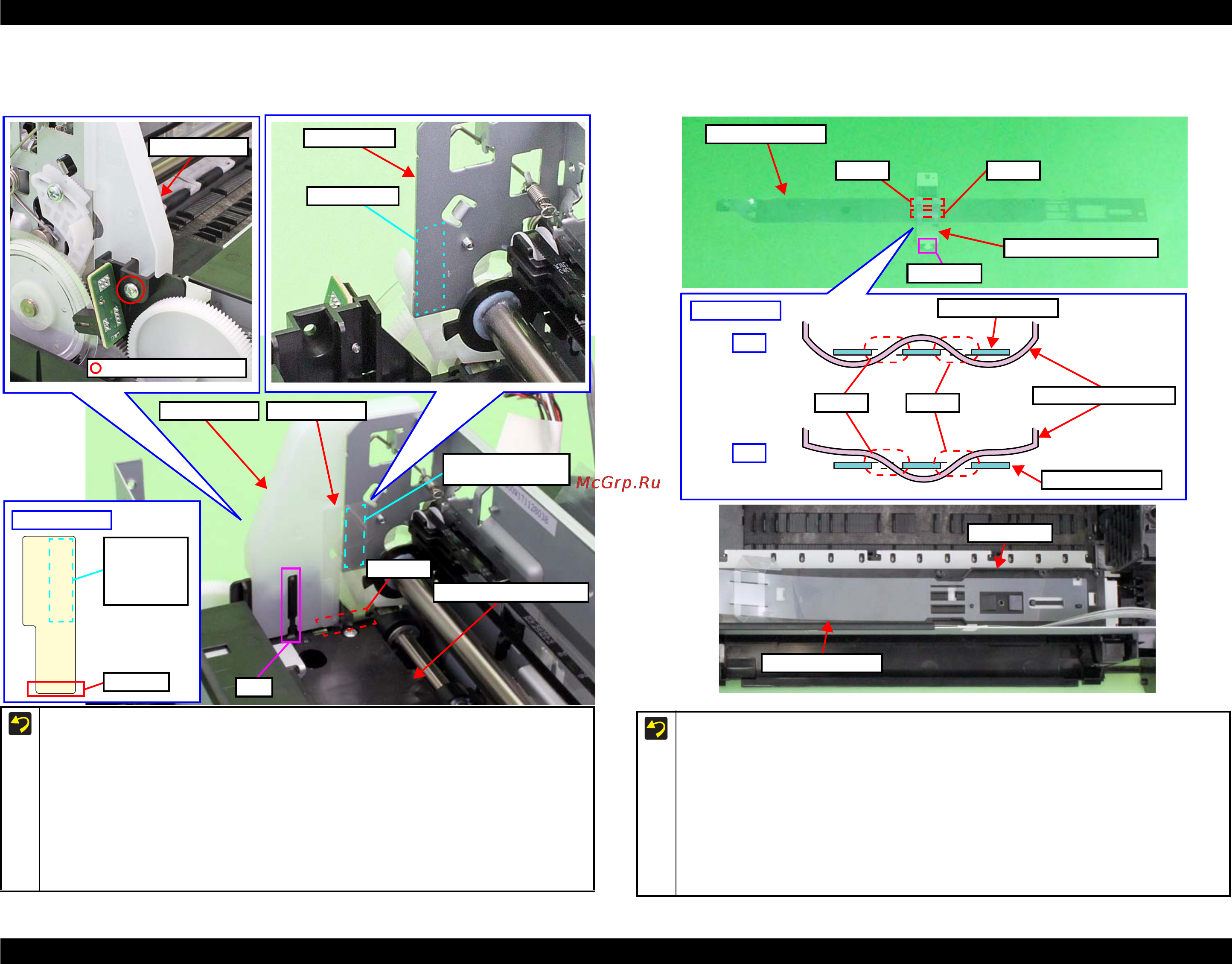

Follow the procedure below when attaching the PF Scale Cover/PF Scale Sheet.
1. Wipe off the area on the Main Frame shown above using a cloth moistened with
alcohol.
2. Align the PF Scale Cover with the rib of the Front Paper Guide Assy, and attach the
PF Scale Cover.
3. Align the screw holes of the PF Scale Cover and Front Paper Guide Assy, and secure
the PF Scale Cover with the screw (x1).
4. After the alcohol dried out completely, insert the section A of the PF Scale Sheet into
the groove of the Front Paper Guide Assy, and then attach it with double-sided tape.
Wiping Area
Main Frame
CBP. 3X8 (5-7kgf.cm)
PF Scale Cover
PF Scale Cover PF Scale Sheet
Groove
Front Paper Guide Assy
Rib
Double-sided tape
attachment position
Double-sided
tape
attachment
position
Section A
PF Scale Sheet
Refer the figure above and follow the procedure below when attaching the Tube
Guide Sheet Sub to the Tube Guide Sheet.
1. Insert the section A of the Tube Guide Sheet Sub into the hole 1 of the Tube Guide
Sheet from the bottom.
2. Insert the section A of the Tube Guide Sheet Sub into the hole 2 of the Tube Guide
Sheet from the top.
When attaching the Tube Guide Sheet to the Tube Guide, while keeping the Tube
Guide Sheet Sub attached on the Tube Guide Sheet, align the holes of the Tube Guide
Sheet with the protrusions of the Tube Guide.
Hole 2
Section A
Hole 1
Tube Guide Sheet
Tube Guide Sheet Sub
OK
Cross Section
NG
Hole 2
Tube Guide Sheet Sub
Tube Guide Sheet
Tube Guide Sheet
Hole 1
Tube Guide Sheet
Tube Guide
