L800/L801 Revision A
Confidential

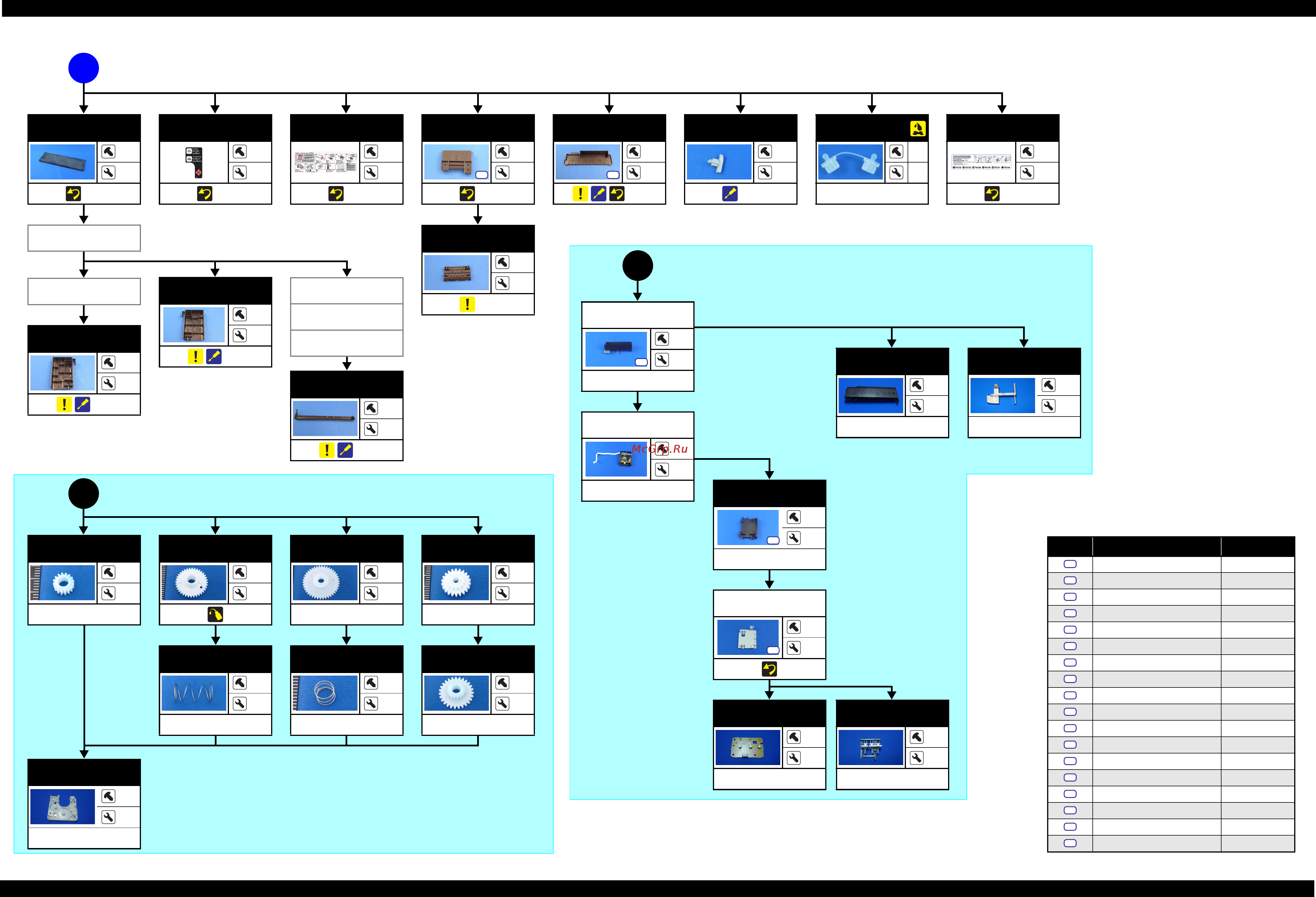

Disassembly/Reassembly Disassembling/Reassembling Flowchart 19
Cover Joint
---
2
(p 63)
Right Cover
Valve Lever
Left Cover
Screw type/torque list
Symbol Screw type Torque
C.B.P. 2.6X8 3.5-4.5kgf.cm
C.B.P. 2.6X8 3-5kgf.cm
C.B.P. 3X10 3-5kgf.cm
C.B.P. 3X10 5-7kgf.cm
C.B.P. 3X6 3-5kgf.cm
C.B.P. 3X8 5-7kgf.cm
C.B.P.(P2) 3X8 5-7kgf.cm
C.B.S 3X6 5-7kgf.cm
C.B.S. (P2) 3X8 6-8kgf.cm
C.B.S. (P4) 3X6 7-9kgf.cm
C.B.S. (P4) 3X6 9-11kgf.cm
C.B.S. 3X10 4-6kgf.cm
C.B.S. 3X6 4-6kgf.cm
C.B.S. 3X6 5-7kgf.cm
C.B.S. 3X6 7-9kgf.cm
C.P. 3X4 3-5kgf.cm
C.P. 3X6 3-5kgf.cm
C.P. 3X6 4-6kgf.cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
Decoration Belt
Left
---
---
---
Panel Cover
---
---
---
Housing Panel
Assy
---
---
---
Panel Board
---
1
---
Panel Shield
Plate
2
---
S3
Panel Cover
Assy
2
---
---
S3
Compression
Spring 0.97
---
---
---
Compression
Spring 2.25
---
---
---
Combination
Gear 12.8.27
---
---
---
Combination
Gear 14.22
---
---
---
Spur Gear 33.6
---
---
---
Spur Gear 28.8
---
---
Bottom Cover
Tube Valve
Holder Front
---
---
(p 62)
Right Cover
---
7
(p 63)
Left Cover
---
7
(p 63)
Tube Valve
Holder Rear
3
6
(p 62)
S5
Valve Lever
---
2
(p 62)
Cap
---
---
---
Bottom Cover
8
---
(p 63)
S5
Valve Posit i o n
Label
---
---
(p 61)
Refilling Ink
Label
---
---
(p 61)
2
A
Top Cove r
---
2
(p 61)
“ 1.5.4 APG Unit (p41)”
APG Holder
---
---
---
3
“ 1.4.2 Panel Assy/ Cover Open Sensor (p30)”
(p 18)
(p 18)
(p 18)
Valve Lever
Open Sensor
Holder
1
4
---
S3
Panel Unit
---
---
---
Top Cover Label
---
---
(p 61)
Spur Gear 12.8
---
---
---
