L800/L801 Revision A
Disassembly/Reassembly P/S Assy 34
Confidential
1.4.3 P/S Assy
Removal procedure
1. Peel off the acetate tape and remove the ferrite core from the groove of the
Housing Lower.
2. Remove the screw that secures the P/S Assy, and remove the P/S Assy from
the Housing Lower.
• Screw : C.B.P M3x10 (tightening torque: 5-7 kgf.cm)

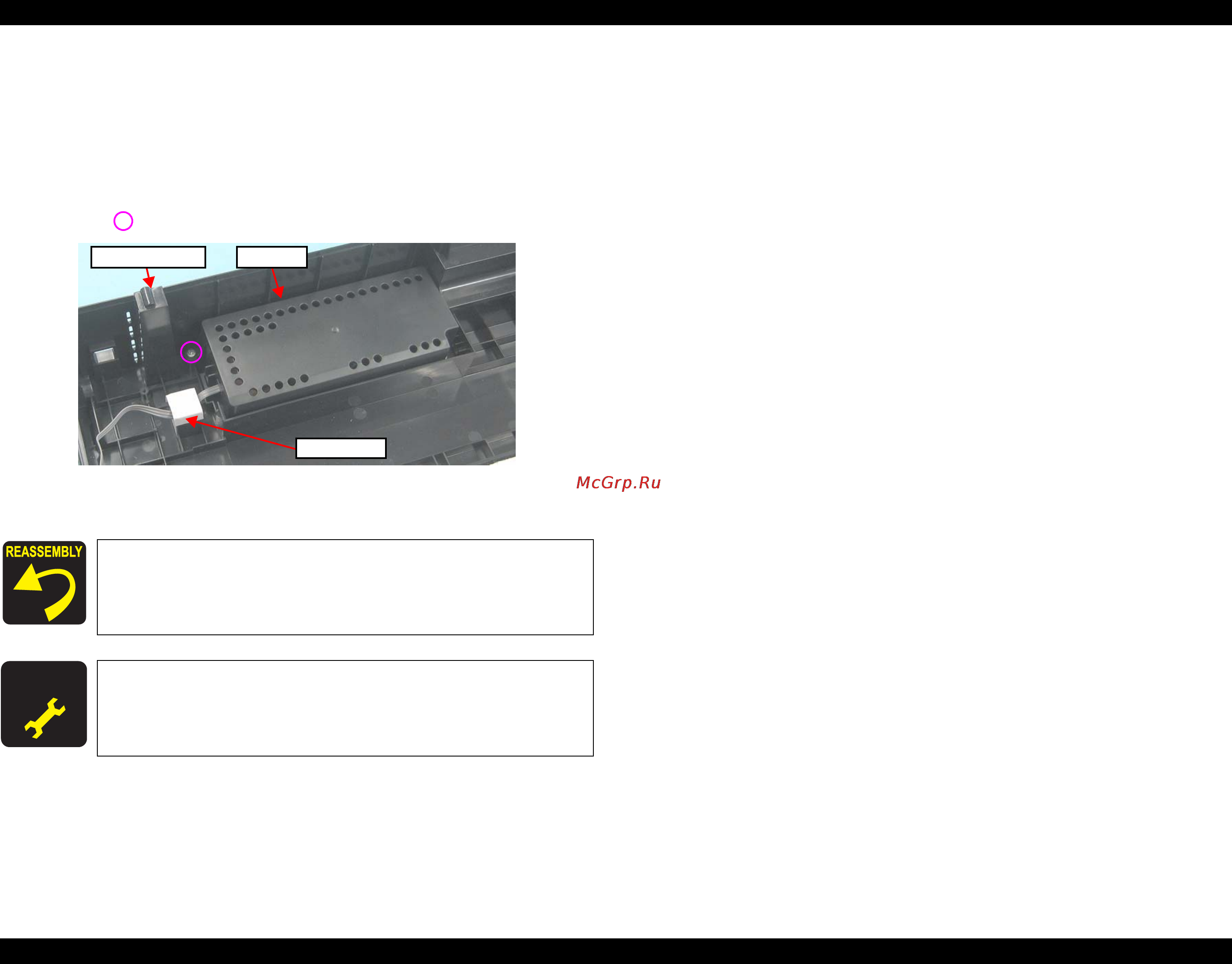

Figure 1-40. Removing the P/S Assy
When installing the P/S Assy, put the ferrite core into the groove of
the Housing Lower and secure it with acetate tape as shown in
Fig.1-40.
A D J U S T M E N T
R E Q U I R E D
Whenever the P/S Assy is replaced, the required adjustment must be
carried out.
• Refer to "2.1.2 Required Adjustments" (p.74)
Housing Lower P/S Assy
Acetate Tape
