L800/L801 Revision A
Confidential

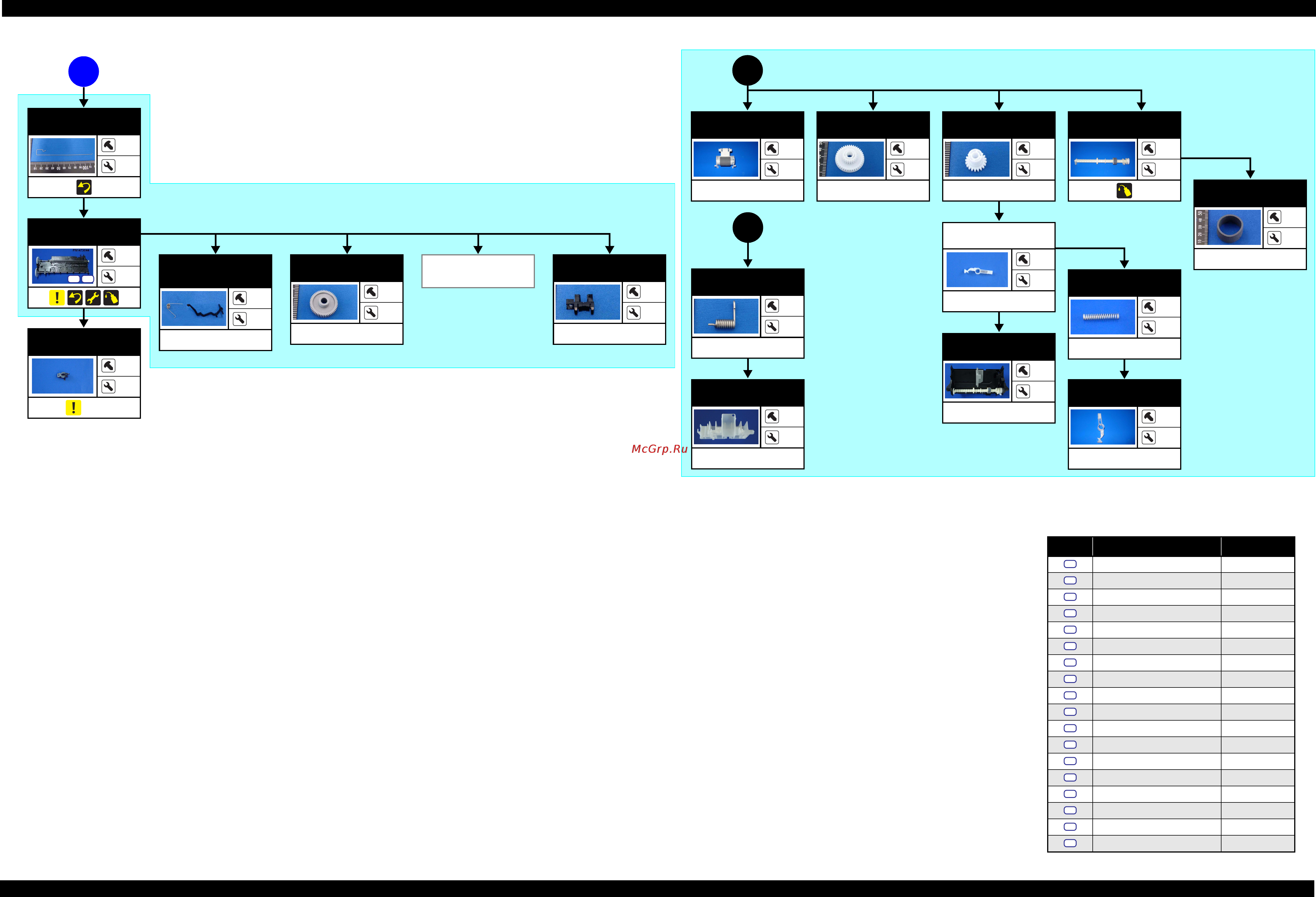

Disassembly/Reassembly Disassembling/Reassembling Flowchart 23
LD Roller
---
---
---
LD Roller
Shaft Assy
---
2
Change Lever
---
1
---
Compression
Spring 2.36
---
---
---
ASF Assy
---
---
---
Change Lever
Assy
---
---
---
Spur Gear 16
---
---
---
Retard Roller
Holder Assy
---
2
---
Combination
Gear 168.32.8
---
1
---
LD Roller Guide
---
---
---
Torsion Spring
137.7
---
---
---
CDR Tray
Sensor
---
2
(p 60)
Photo Interrupter
(PE Sensor)
---
4
---
Porous Pad
Paper Guide
Front
Spur Gear 26.5
---
1
---
PE Lever/
PE Lever
Torsion Spring
---
2
---
Front Paper
Guide Assy
2
1
S9
S15
EJ Ground
Spring
---
3
E
“ 1.5.17 Front Paper Guide Assy (p57)”
5
6
“ 1.5.14 ASF Unit (p54)”
Screw type/torque list
Symbol Screw type Torque
C.B.P. 2.6X8 3.5-4.5kgf.cm
C.B.P. 2.6X8 3-5kgf.cm
C.B.P. 3X10 3-5kgf.cm
C.B.P. 3X10 5-7kgf.cm
C.B.P. 3X6 3-5kgf.cm
C.B.P. 3X8 5-7kgf.cm
C.B.P.(P2) 3X8 5-7kgf.cm
C.B.S 3X6 5-7kgf.cm
C.B.S. (P2) 3X8 6-8kgf.cm
C.B.S. (P4) 3X6 7-9kgf.cm
C.B.S. (P4) 3X6 9-11kgf.cm
C.B.S. 3X10 4-6kgf.cm
C.B.S. 3X6 4-6kgf.cm
C.B.S. 3X6 5-7kgf.cm
C.B.S. 3X6 7-9kgf.cm
C.P. 3X4 3-5kgf.cm
C.P. 3X6 3-5kgf.cm
C.P. 3X6 4-6kgf.cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
(p 22)
(p 22)
(p 22)
