L800/L801 Revision A
Adjustment Using the Adjustment Program 79
Confidential
2.2.4 PW Adjustment/First Dot Position Adjustment
Patterns are printed as shown below.

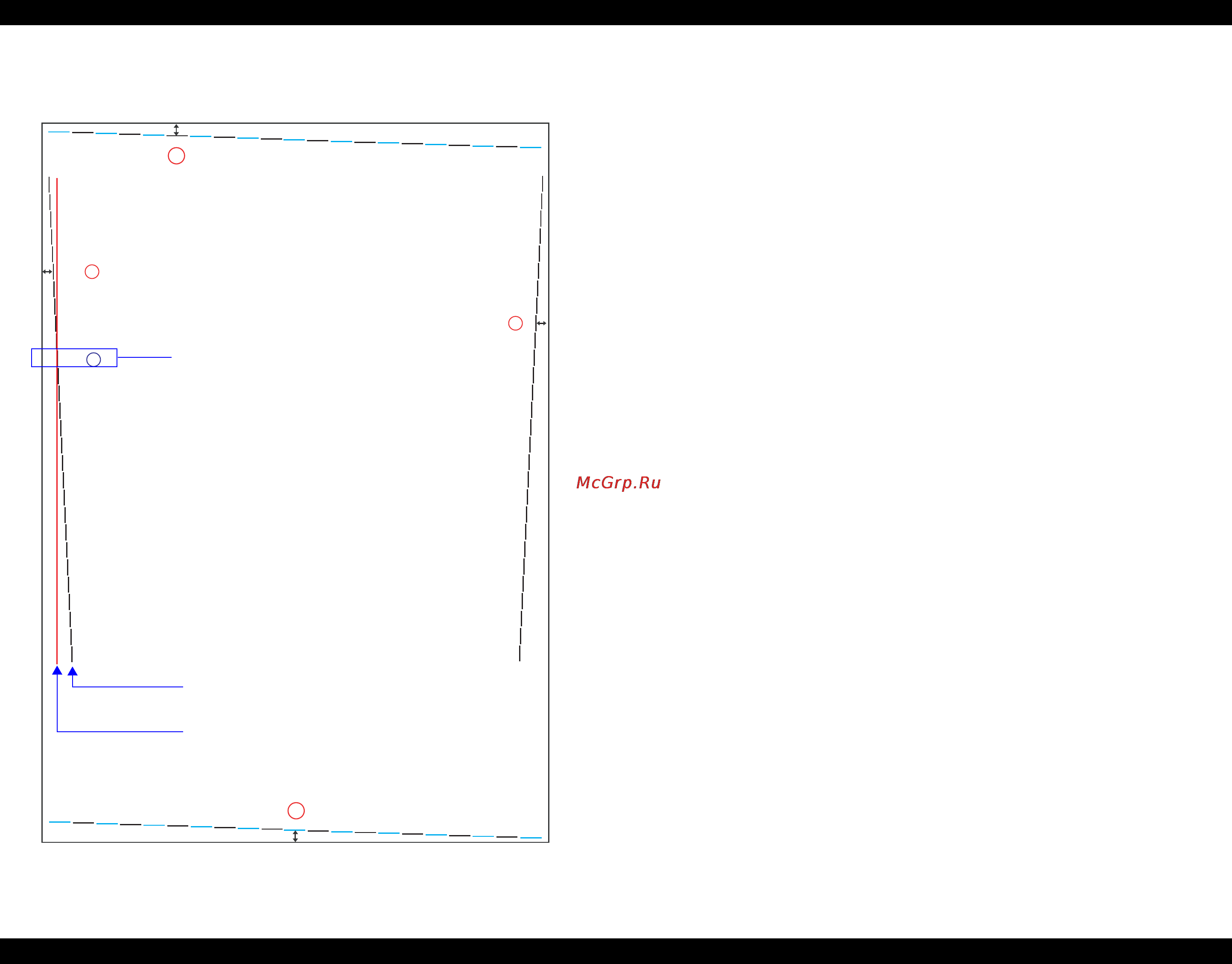

Figure 2-5. PW/First Dot Position Adjustment Pattern
PW adjustment
How to Judge
Enter the value for the line that is exactly 5mm away from the paper edge for
each of the left, right, top and bottom.
Example: In the left figure, enter “0” (top), “0” (right), “5” (bottom) and “-3”
(left).
First dot position adjustment
How to Judge
Enter the value for the point where the PW adjustment pattern line and the First
dot position adjustment pattern line overlap on the left of the paper.
Example: In the left figure, enter “2” since the lines overlap at “2” position.
-8
-7
-6
-5
-4
-3
-2
-1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
-5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
-5-4-3-2-10123456789101112131415
-8
-7
-6
-5
-4
-3
-2
-1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
5 mm
Area where A and B overlap
A: PW adjustment pattern line (left)
B: First dot position adjustment pattern line
