L800/L801 Revision A
Disassembly/Reassembly Left & Right Guide Stackers / CDR Guide Sensor 44
Confidential

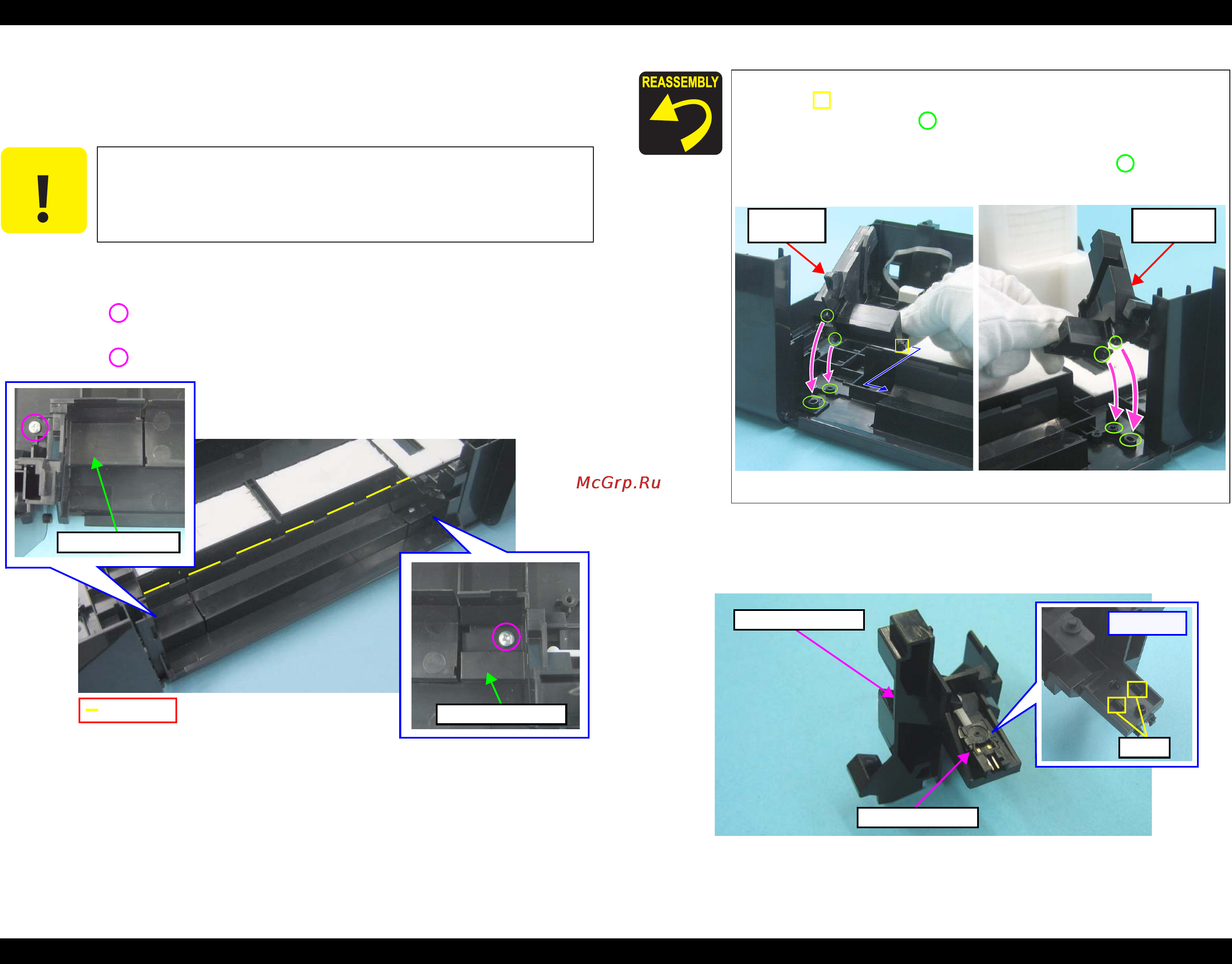

1.5.7 Left & Right Guide Stackers / CDR Guide Sensor
Removal procedure
Left / Right Guide Stacker Removal
1. Remove the screw and remove the Left Guide Stacker.
• Screw : C.B.P. M3x8 (tightening torque: 5-7 kgf.cm)
2. Remove the screw and remove the Right Guide Stacker.
• Screw : C.B.P. M3x8 (tightening torque: 5-7 kgf.cm)
Figure 1-66. Removing the Left / Right Guide Stacker
CDR Guide Sensor Removal
1. Disengage the two hooks on the back of the CDR Guide Sensor and remove
the CDR Guide Sensor.
Figure 1-68. Removing the CDR Guide Sensor
C A U T I O N
Be careful of the seven sharp edges shown in
Fig.1-66
when
assembling or reassembling.
Left Guide Stacker
Left Guide Stacker
Right Guide Stacker
Sharp edge
When installing the Left Guide Stacker, insert the rib indicated
with in
Fig.1-67
and match the positioning holes and guide
pins indicated with (two pairs).
When installing the Right Guide Stacker, match the
positioning holes and guide pins indicated with (two
pairs)
in Fig.1-67
.
Figure 1-67. Installing the Left / Right Guide Stacker
Right Guide
Stacker
Left Guide
Stacker
[Back Side]
Hooks
Right Guide Stacker
CDR Guide Sensor
