L800/L801 Revision A
Maintenance Overview 93
Confidential

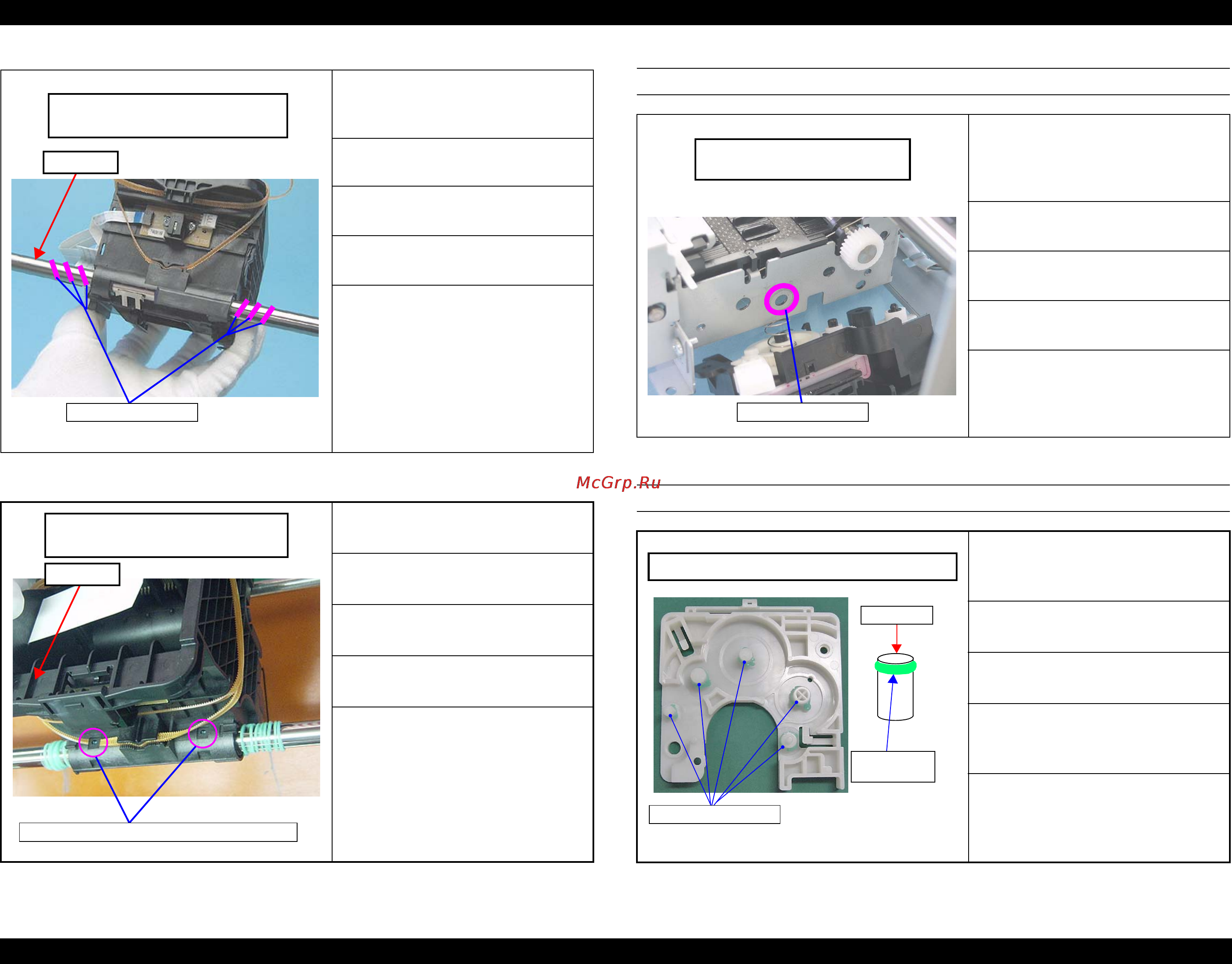

Figure 3-12. Lubrication of the CR Guide Shaft (1)
Figure 3-13. Lubrication of the CR Guide Shaft (2)
LUBRICATION OF INK SYSTEM
Figure 3-14. Lubrication of the I/S
LUBRICATION OF APG UNIT
Figure 3-15. Lubrication of the APG Unit (1)
<Lubrication Points>
Contact point between CR Unit and the
CR Guide Shaft
<Type>
G-71
<Application Amount>
210 ± 20mg x 2 points
<Application Timing>
Apply before installing the
CR Unit
<Remarks>
Apply with Injector
After lubrication, move the CR
Guide Shaft to left and right by
60mm while rotating it, to spread the
grease evenly.
Make sure that the Timing Belt is
free from grease.
<Lubrication Points>
Lubrication holes of the CR Unit
<Type>
G-71
<Application Amount>
210 ± 20mg x 2 points
<Application Timing>
Apply before installing the
CR Unit
<Remarks>
Apply with Injector
Apply grease from the two
lubrication holes.
Make sure that the Timing Belt is
free from grease.
Contact point between CR
Unit and CR Guide Shaft (1)
CR Shaft
Application Point
CR Shaft
Contact point between CR Unit
and CR Guide Shaft (2)
Application Point: Apply from the holes
<Lubrication Points>
On the Main Frame where the clutch
gear and spring of the Ink System
contact
<Type>
G-71
<Application Amount>
ø 1 x 1 circle
<Application Timing>
Apply before installing the
Ink System
<Remarks>
Apply with Injector
<Lubrication Points>
Around the upper part of the shafts on
the APG Unit. (5 points)
<Type>
G-71
<Application Amount>
ø 1 x 1 circle x 5 points
<Application Timing>
Disassemble the APG Unit to apply the
grease before installing it.
<Remarks>
Apply with Injector
Contact point between
Main Frame and I/S
Application Point
Shaft
Application Point
Application
Point
Shafts on APG Unit
