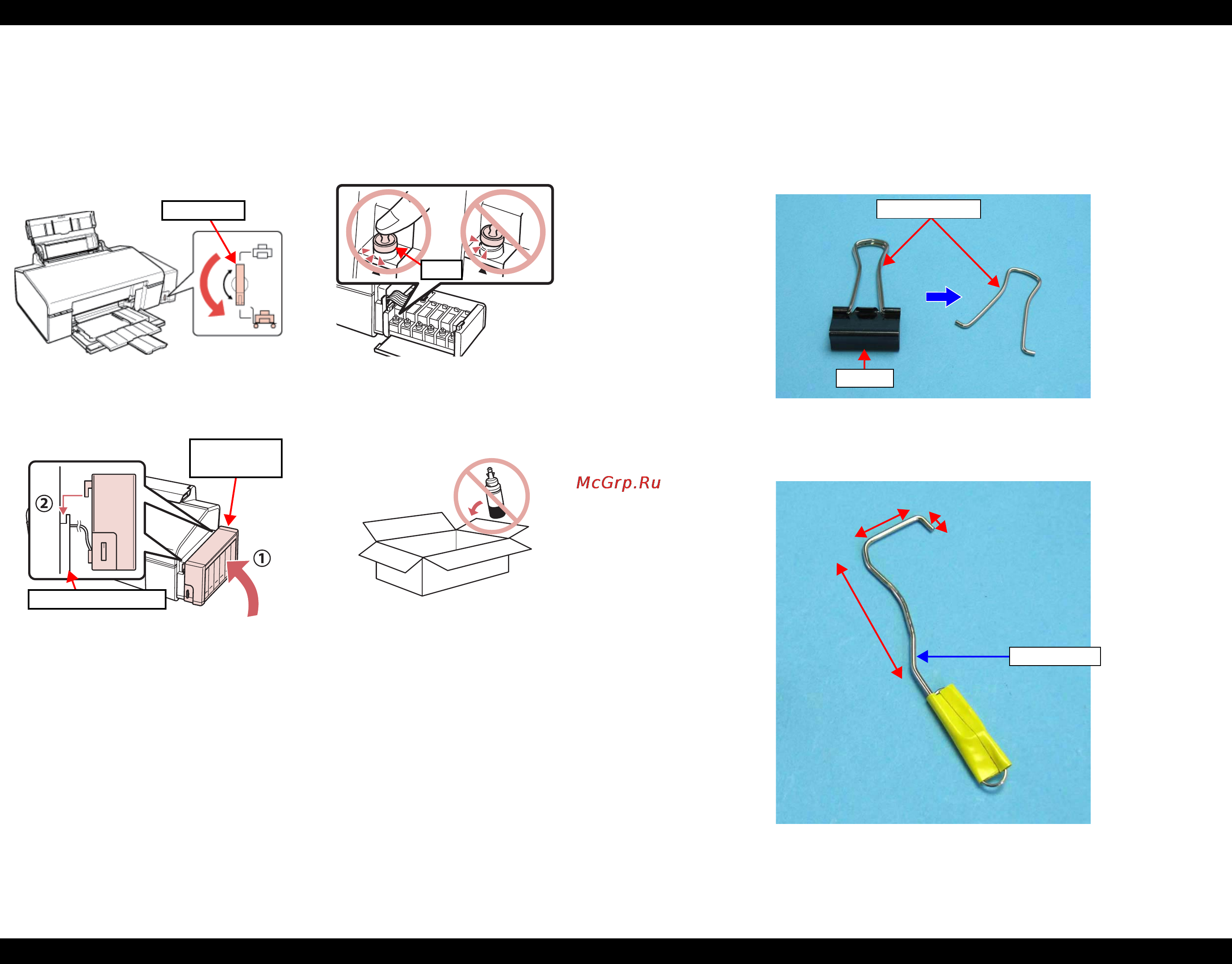

L800/L801 Revision A
Disassembly/Reassembly Overview 15
Confidential
Points to be checked before packing the printer
1.1.4 Making a Special Tool for Holder Contact
The Holder Contact (refer to p.38) can be easily removed by using a special
tool. The method for making the tool is described below.
1. Prepare a handle part of a clip, or a similar metal wire piece.
Figure 1-10. Making Special Tool for Holder Contact (1)
2. Bend the metal wire as shown below.
Figure 1-11. Making Special Tool for Holder Contact (2)
The Valve Lever is on the position
shown below (the Choke Valve is
closed). (See Figure 1-3.)
All the caps of the Ink Supply Tank
Assy are securely closed.
The hooks (x2) of the Ink Supply
Tank Assy are securely engaged
with the Housing Upper Assy.
The opened ink bottle is not
included in the box.
Valve Lever
Cap
Ink Supply
Tank Assy
Housing Upper Assy
Clip
Handle part
7mm
25mm
50mm
Special Tool
