L800/L801 Revision A
Adjustment Using the Adjustment Program 80
Confidential
2.2.5 PF Adjustment
PF- for standard print area

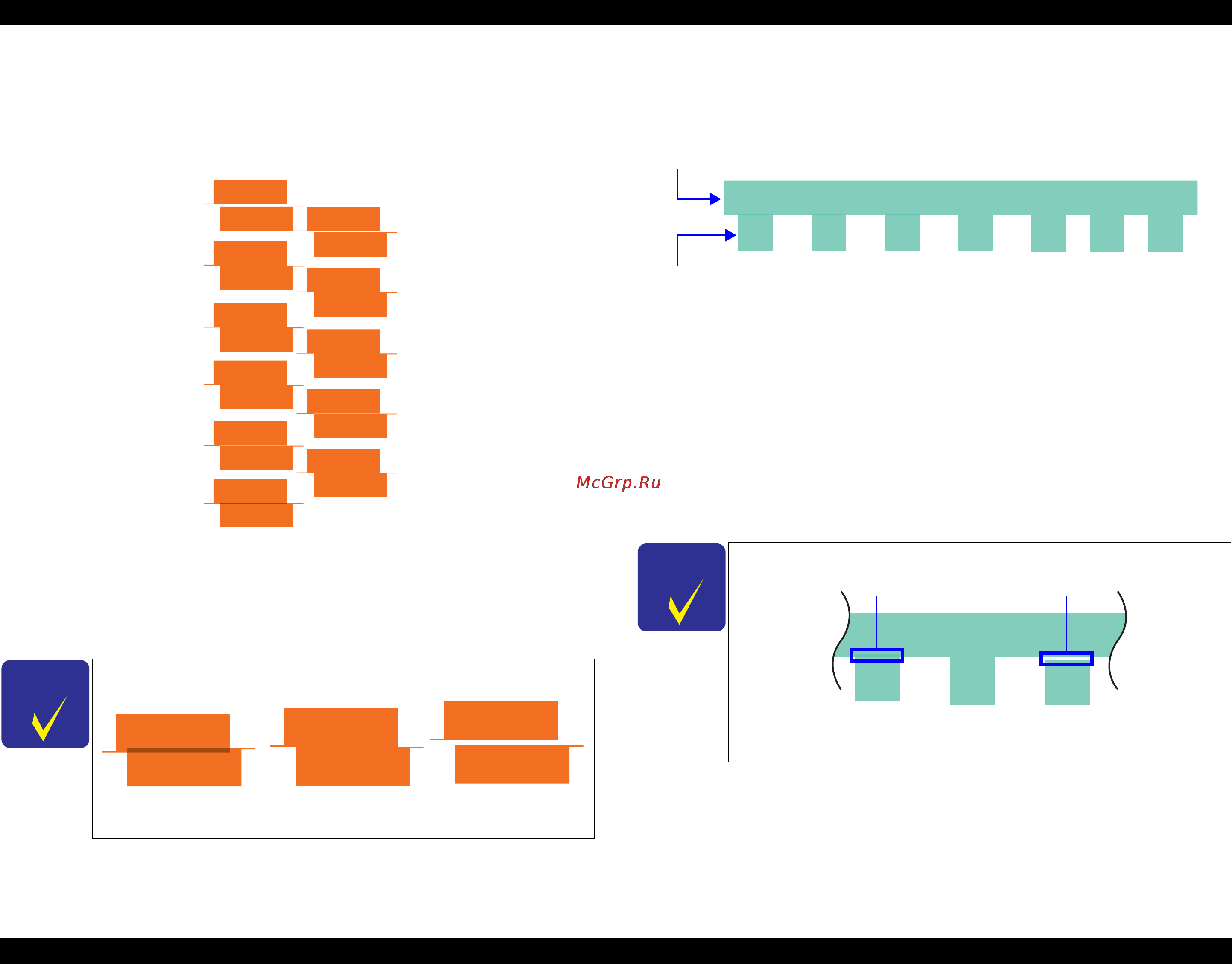

Patterns are printed as shown below.
Figure 2-6. PF (standard print area) Adjustment Pattern
How to Judge
Enter the value for the group that has no gap or overlap between the upper and
the lower patterns.
PF- for bottom margin area
Patterns are printed as shown below.
Figure 2-7. PF Adjustment (bottom margin area) Pattern
How to Judge
Enter the value for the one that has no gap or overlap between the upper block
and the lower block.
Example: In the above figure, “0” should be selected.
Additional information
In case that all patterns have gap or overlap, select the value for the pattern
which has the least gap or overlap, and print the pattern again.
C H E C K
P O I N T
Example for judgement
4
2
0
-2
-4
5
3
1
-1
-3
-5
OK
NG
NG
C H E C K
P O I N T
Example for judgement
-2 -1 0 1 2 3-3
Lower block
Upper block
OK NGNG
GapOverlap
