L800/L801 Revision A
Disassembly/Reassembly EJ Frame Assy 47
Confidential

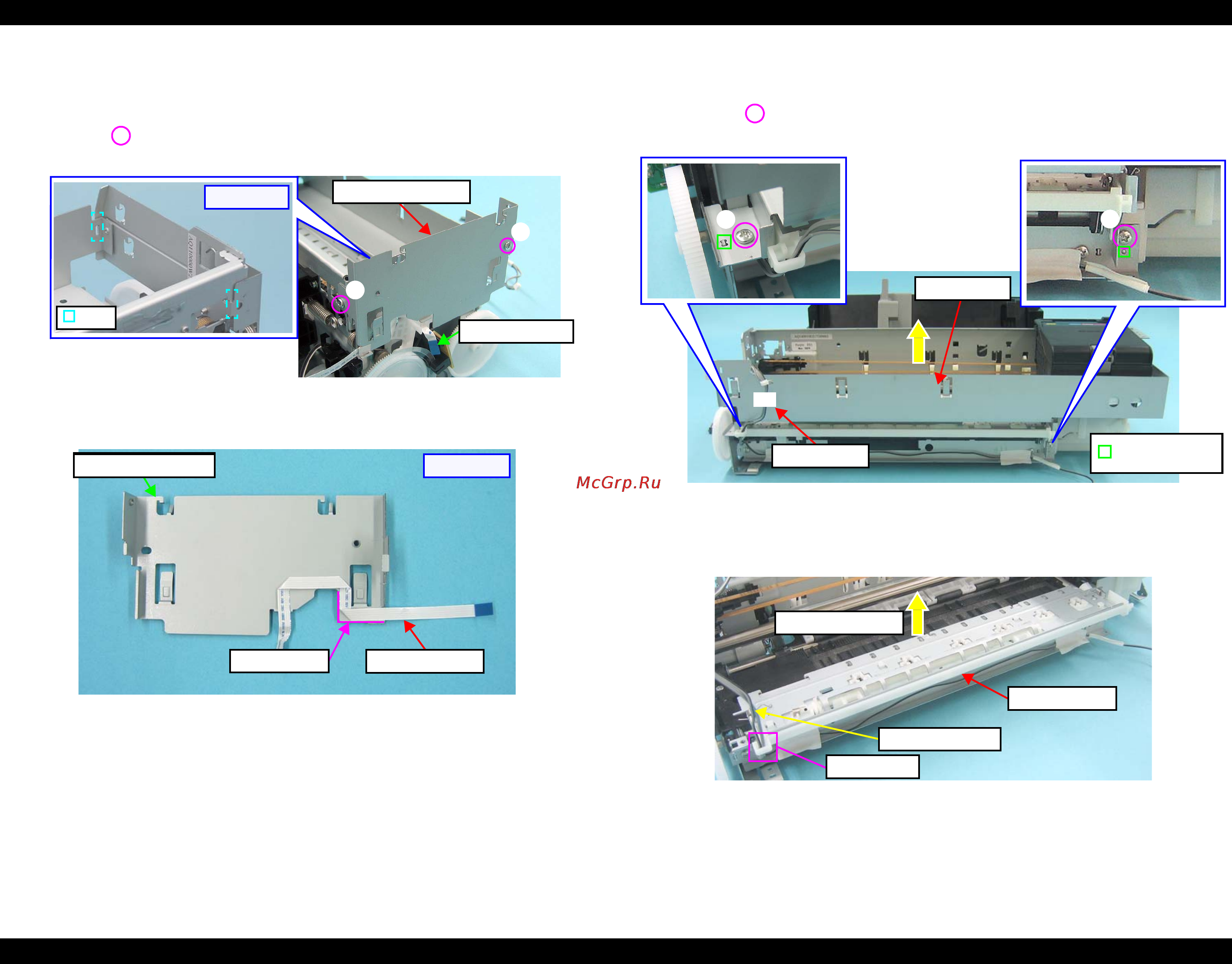

5. Disconnect the PF Encoder FFC from the PF Encoder.
6. Remove the two screws, disengage the two hooks of the Cable Holder Frame
from the Front Frame and Main Frame, and remove the Cable Holder Frame.
7. Screw : C.B.S. M3x6 (tightening torque: 7-9 kgf.cm)
(The numbers shown in the figure indicate the order of tightening the screws.)
Figure 1-75. Removing the Cable Holder Frame
8. Peel off the PF Encoder FFC from the back of the Cable Holder Frame.
Figure 1-76. Removing the PF Encoder FFC
9. Peel off the acetate tape to release the CDR Sensor Cable, and then remove
the screws on the right and left sides, and remove the Front Frame.
• Screw : C.B.S. M3x6 (tightening torque: 7-9 kgf.cm)
(The numbers shown in the figure indicate the order of tightening the screws.)
Figure 1-77. Removing the Front Frame
10. Release the CDR Sensor Cable from the cable guide of the EJ Frame Assy.
11. Remove the EJ Frame Assy.
Figure 1-78. Removing the EJ Frame Assy
Hook
[Back Side]
Cable Holder Frame
1
2
PF Encoder FFC
[Back Side]
Cable Holder Frame
PF Encoder FFC
Reference Line
Cable Holder Frame
Front Frame
1
Positioning hole
and Guide Pin
2
Acetate Tape
EJ Frame Assy
Removal Direction
Cable Guide
CDR Sensor Cable
