L800/L801 Revision A
Disassembly/Reassembly ASF Unit 55
Confidential
3. Disengage the two hooks (1) (2) that secure the ASF Unit from the Main
Frame.
4. Remove the Combination Gear (10,15.2), then remove the ASF Unit while
releasing the edge of the Change Lever from the hole of the Main Frame.

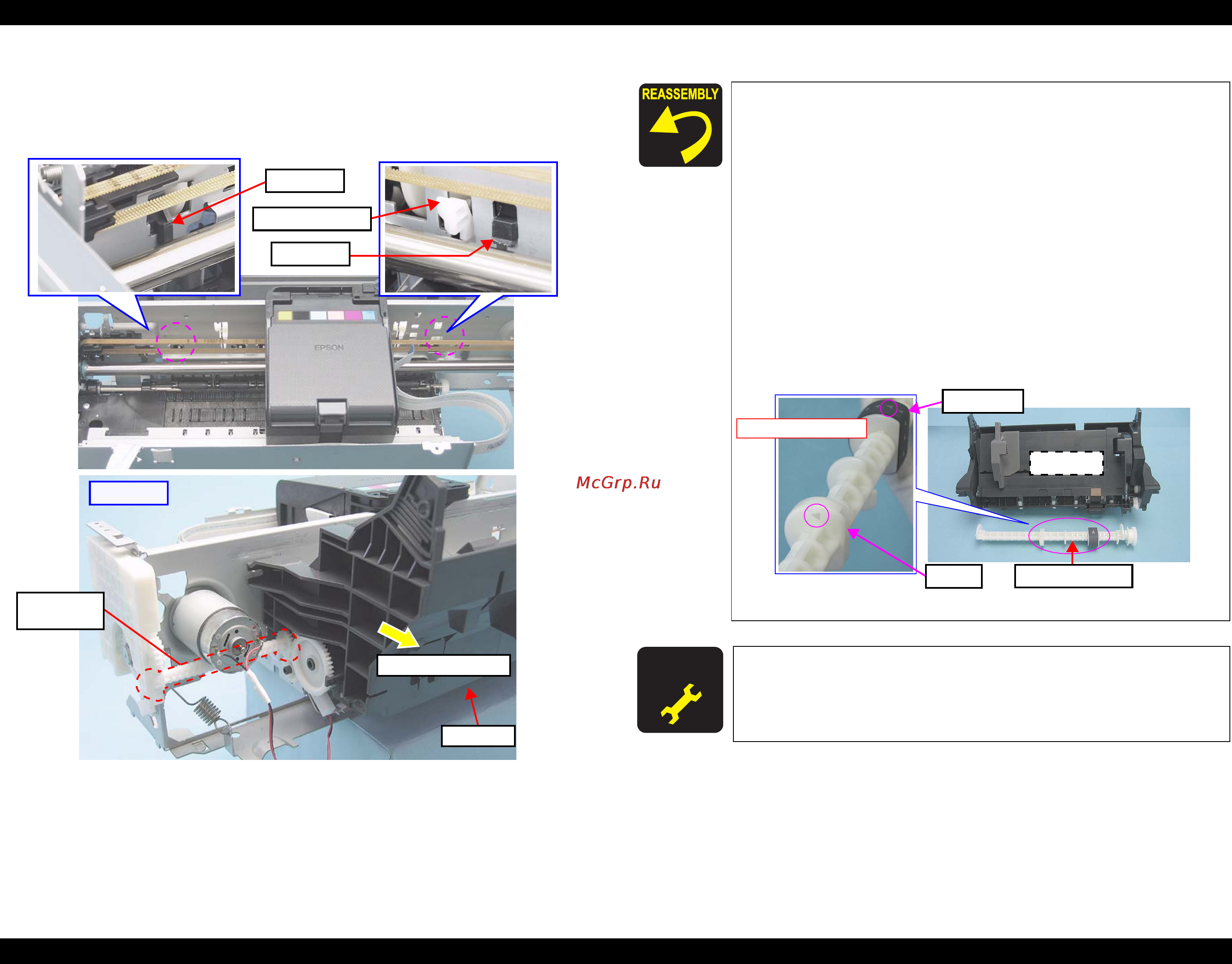

Figure 1-102. Removing the ASF Unit
Change Lever
Hook (2)
Hook (1)
Combination
Gear
ASF Unit
Removal Direction
[Rear Side]
Lubrication is required. See the page given below for the
lubrication information.
Lubrication of ASF Unit (p.94)
When installing the ASF Unit, make sure that the Combination
Gear, tip of the Change Lever and the two hooks are securely
attached. Also make sure that there is appropriate space at
both the left and right of the Change Lever.
Tighten the screws in the order given in Fig.1-101 (p.54).
Install the LD Roller following the procedure below. Make
sure to apply grease referring to the page given below.
Lubrication of the ASF Unit (p.94)
1. Install the LD Roller aligning the arrow on the LD Roller with
the arrow on the blade of the shaft. Make sure the LD Roller is
securely attached without gap or misalignment.
Figure 1-103. Reinstalling the LD Roller
A D J U S T M E N T
R E Q U I R E D
Whenever the ASF Unit is removed or replaced, the required
adjustments must be carried out.
Refer to "2.1.2 Required Adjustments" (p.74)
ASF Unit
Align the arrows
Blade
LD Roller Shaft
LD Roller
