L800/L801 Revision A
Disassembly/Reassembly Ink System 45
Confidential

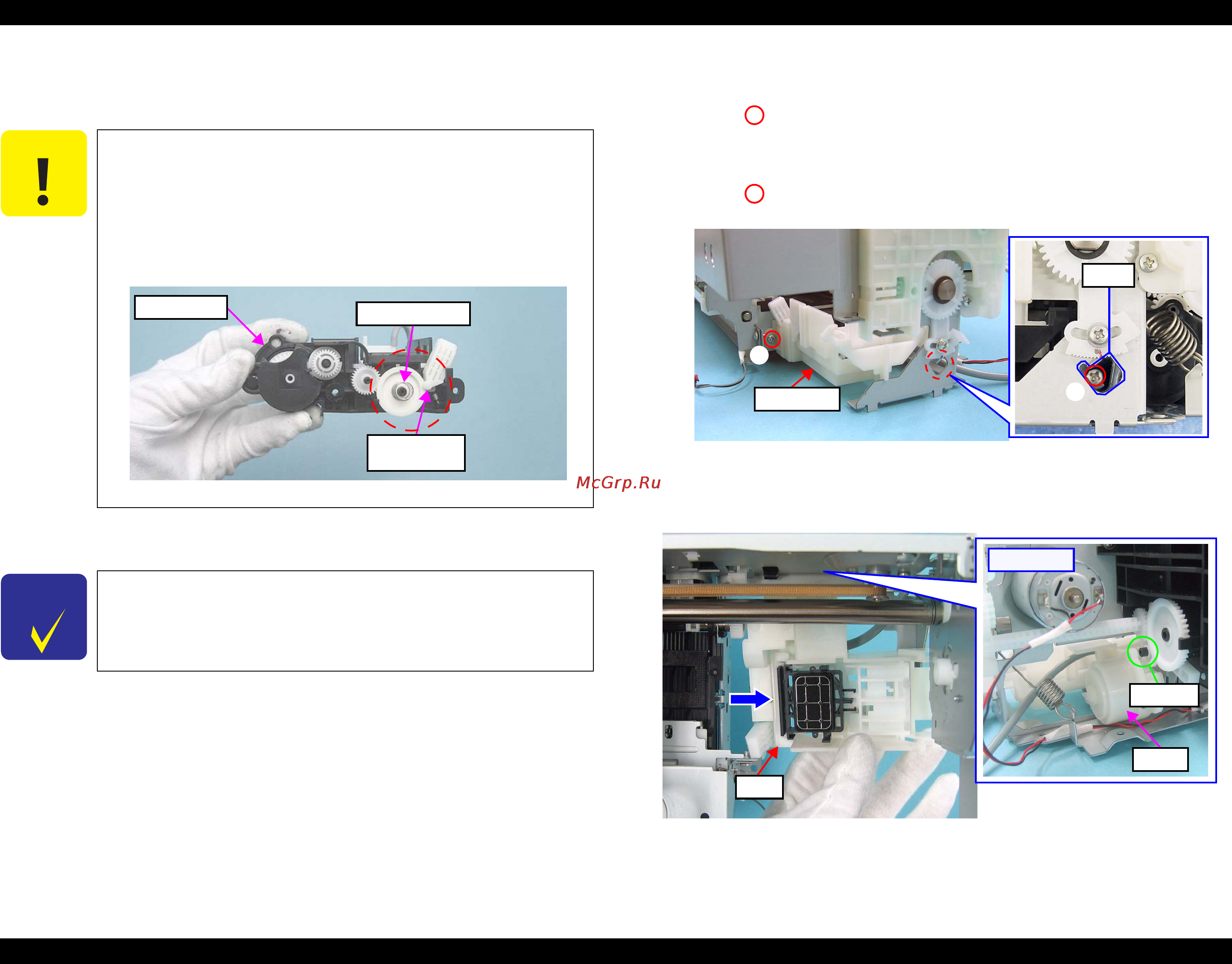

1.5.8 Ink System
Removal procedure
1. Move the CR Unit to the center.
2. Remove the screw (1) that secures the Cap section.
• Screw : C.B.S. M3x6 (tightening torque: 7-9 kgf.cm)
(The numbers shown in the figure indicate the order of tightening the screws.)
3. Insert a screwdriver through the hole of the Main Frame and remove the screw
(2) that secures the Pump section.
• Screw : C.B.S. M3x6 (tightening torque: 7-9 kgf.cm)
(The numbers shown in the figure indicate the order of tightening the screws.)
Figure 1-70. Removing the Ink System (1)
4. Slide the Ink System to the direction of the arrow and disengage the Ink
System from the guide pin of the ASF Unit.
Figure 1-71. Removing the Ink System (2)
C A U T I O N
Take extra care not to spill ink and contaminate the
surroundings. Also, when removing the Waste Ink Tube, be
careful not to spill the ink.
Extra care must be taken to avoid injury from sharp edges of
the rib of the Main Frame.
Be careful not to drop and damage the shaft of the Carriage
Lock and the Torsion Spring, as they easily come off.
Figure 1-69. Ink System
C H E C K
P O I N T
See the section given below on how to unlock the carriage.
• “1.1.6 How to Unlock the Carriage”
Shaft of the
Carriage Lock
Torsion Spring
Pump Section
Pump Section
2
Hole
1
Cap section
Pump
[Rear Side]
Guide Pin
Cap
