L800/L801 Revision A
Disassembly/Reassembly Overview 14
Confidential
1.1.3 Protection for Transportation
Before packing the printer for returning it to the user, secure it at the specified
points with strong tape to avoid damaging the printer or ink leakage during
transport, and make sure to check the points as follows.
Attaching the Air Release Hole Caps
To prevent the ventilation film from getting wet, attach the Air Release
Hole Caps (part number: 1556135) to the air release holes of the Ink Supply
Tank Assy.

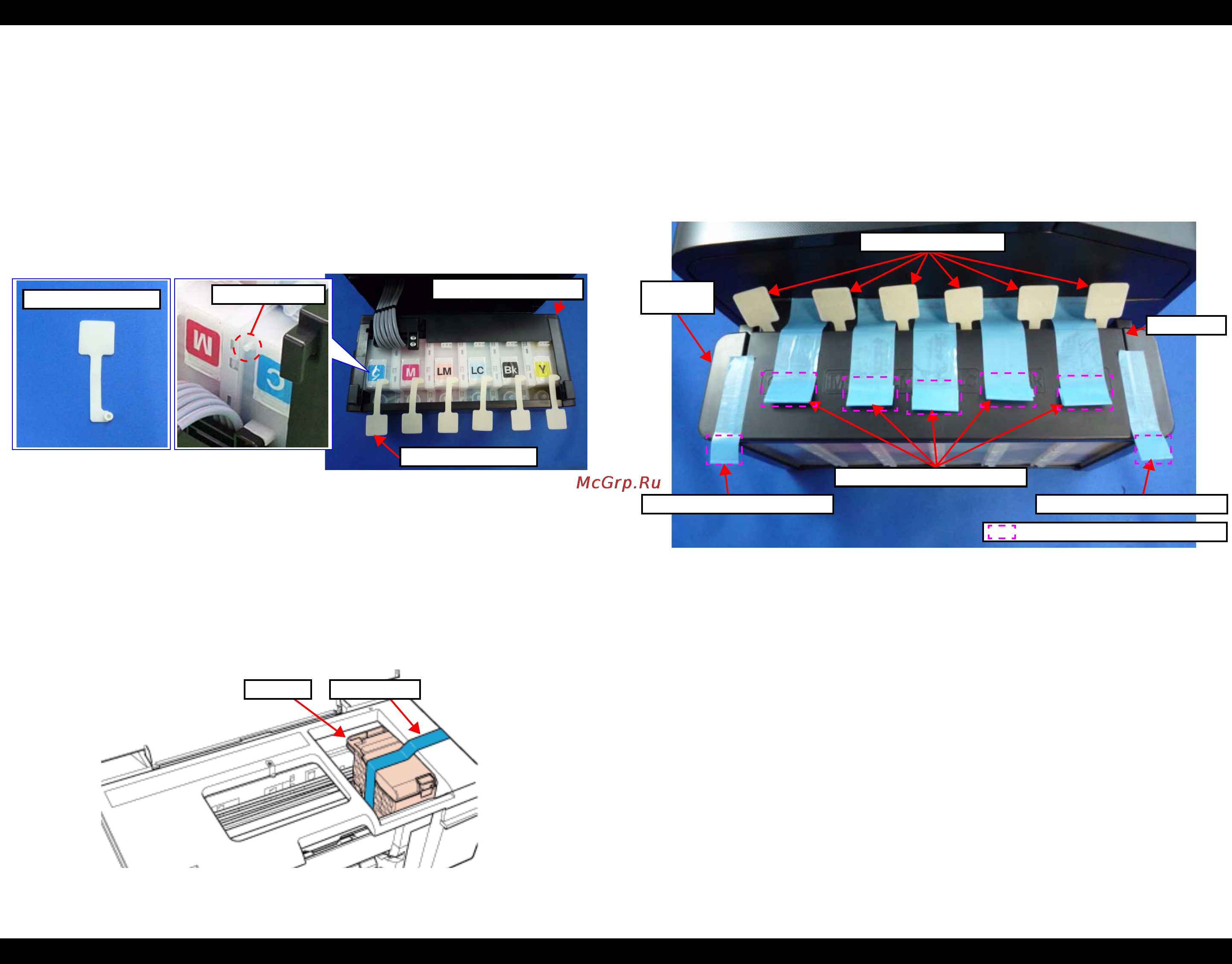

Figure 1-7. Attaching the Air Release Hole Caps
Securing each parts
Secure the following parts with strong tape (width: 22 mm).
Securing the CR Unit
1. Confirm that the CR Unit is locked in the home position.
2. Attach the unfolded end of strong tape (fold the other end back 10 mm)
on the bottom left of the Adapter Cover.
3. Pull the tape to the right side of the housing and attach it tightly.
Figure 1-8. Securing the CR Unit
Securing the Ink Tank
• Secure both sides of the Top Cover with strong tape (x2).
• Align the unfolded end of strong tape (x5) with the edge of the
Housing Upper, and attach the tape along the shape of the Housing
Upper/Ink Supply Tank Assy through the openings between the Air
Release Hole Caps.
Figure 1-9. Securing the Ink Supply Tank Assy
Ink Supply Tank Assy
Air Release Hole Cap
Air Release Hole Cap
Air release hole
Strong tapeCR Unit
Top Cover
Ink Supply
Tank Assy
Strong tape (60 mm x 22 mm)
Fold over the tape edge by 10 mm
Strong tape (80 mm x 22 mm)
Strong tape (60 mm x 22 mm)
Air Release Hole Cap
