L800/L801 Revision A
Disassembly/Reassembly Adapter Cover 68
Confidential

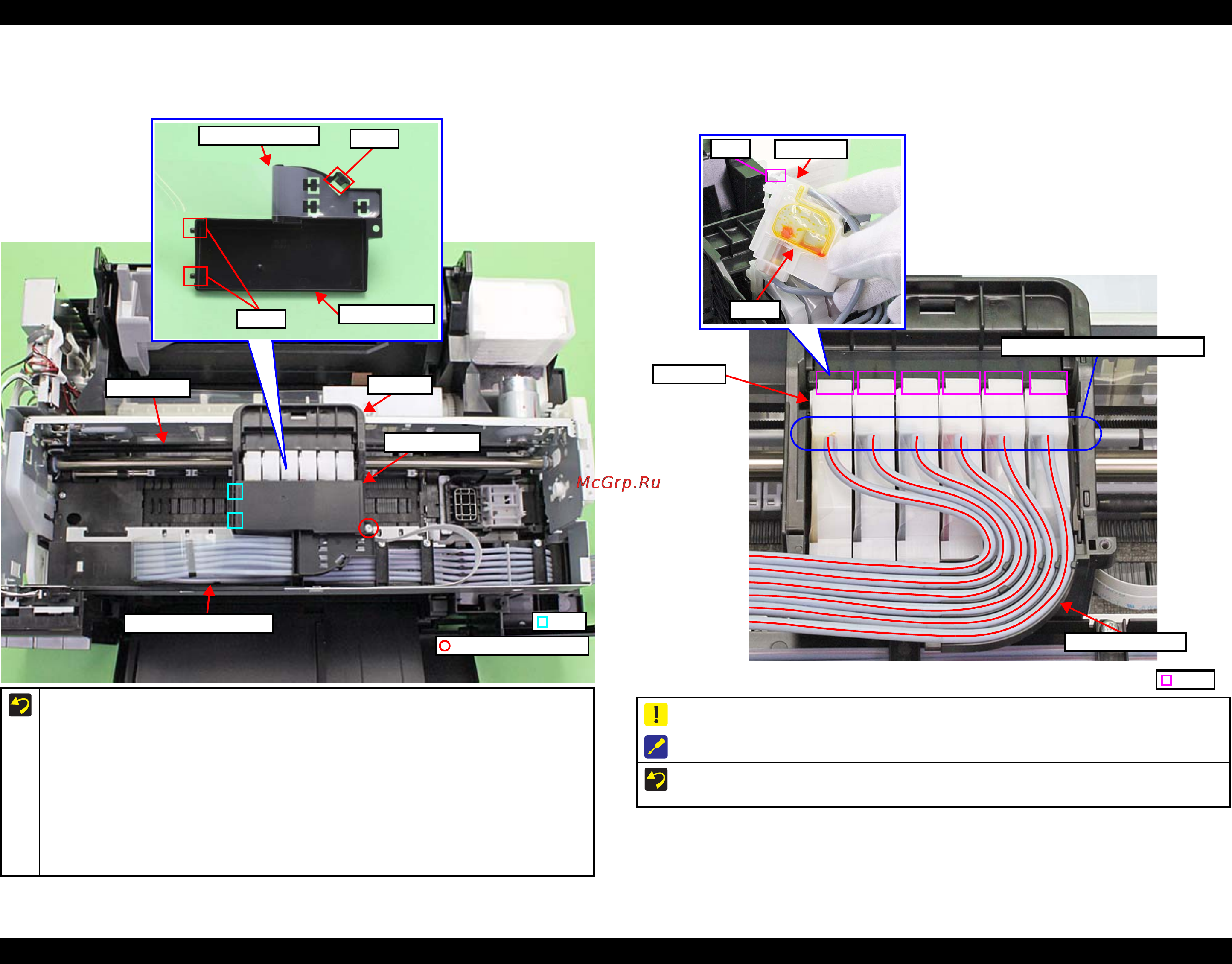

1.6.13 Adapter Cover 1.6.14 Adapter
Follow the procedure below when installing the Adapter Cover to the CR Unit.
1. Attach the Tube Guide Sheet to the Adapter Cover.
2. Insert the dowels (x2) of the Adapter Cover into the holes (x2) of the CR Unit and
engage the hook of the Adapter Cover to the CR Unit.
3. Make sure no Ink Supply Tubes are caught, then secure the Adapter Cover with the
screw (x1).
After installing the Adapter Cover to the CR Unit, move the CR Unit from side to
side while holding the Timing Belt to make sure that the Ink Supply Tube Assy does
not apply extra load of the CR Unit movement.
CBP. 3X8 (5-7kgf.cm)
CR Unit
Adapter Cover
Ink Supply Tube Assy
Hole
Dowel
Hook
Adapter Cover
Tube Guide Sheet
Timing Belt
Be careful not to damage or peel off the film of the Adapter.
Use a precision screwdriver when releasing the hooks of the Adapter.
When connecting the Ink Supply Tubes to the Adapter, make sure the red lines on the Ink
Supply Tubes are facing upward as shown in the figure above.
Adapter
Film
Hook
Ink Supply Tube
Adapter
Connection of Ink Supply Tubes
Hook
