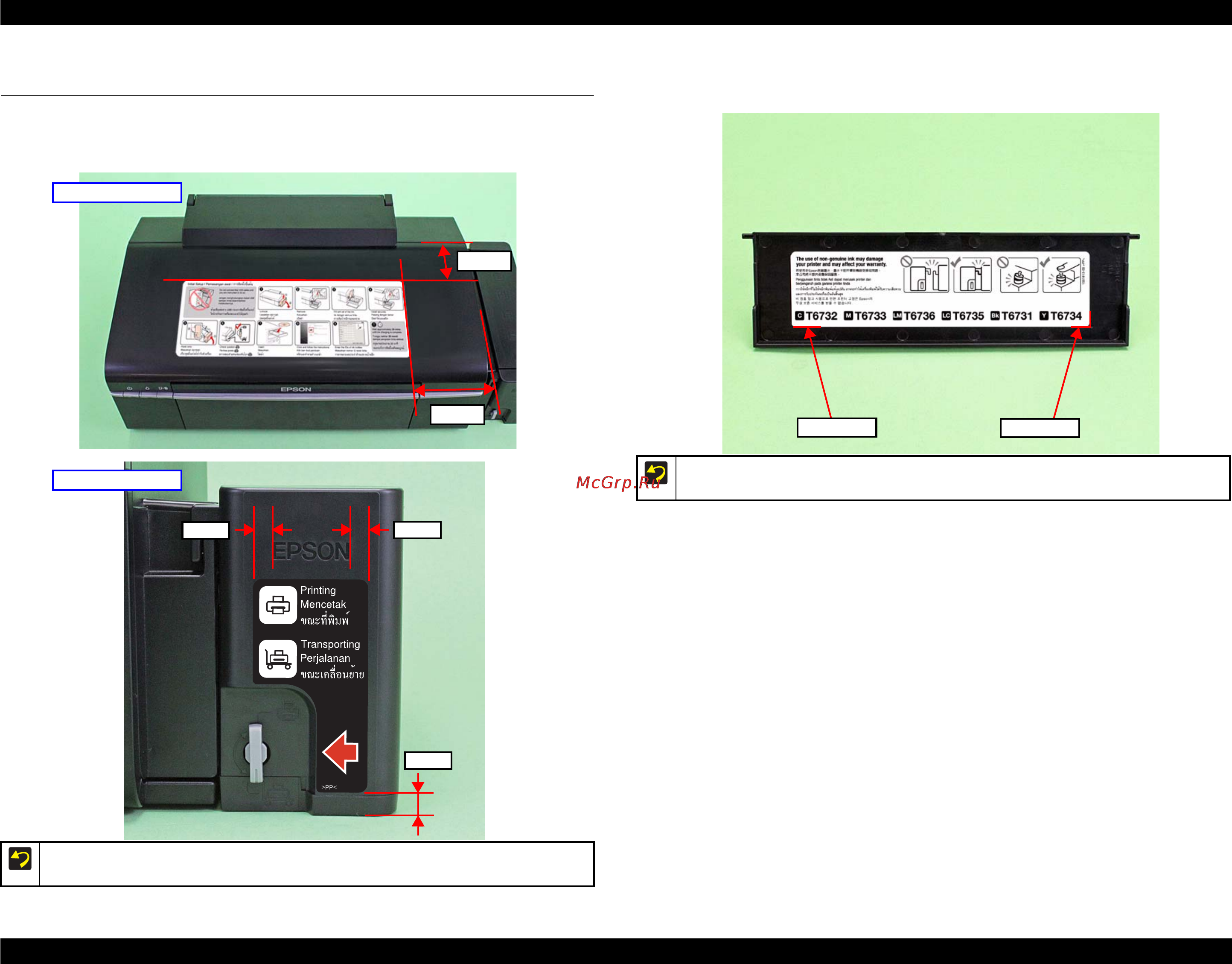

L800/L801 Revision A
Disassembly/Reassembly Refilling Ink Label / Valve Position Label 61
Confidential
1.6 Disassembling the CISS section
1.6.1 Refilling Ink Label / Valve Position Label
1.6.2 Top Cover
Attach the Refilling Ink Label and Valve Position Label according to the standards
shown in the figure above.
103 mm
67 mm
6.4 mm
7.5 mm
7.5 mm
Refilling Ink Label
Valve Position Label
When attaching the Top Cover Label, align it with the markings on the Top Cover as
shown in the figure above.
Marking
Marking
