L800/L801 Revision A
Disassembly/Reassembly Front Paper Guide Assy 58
Confidential

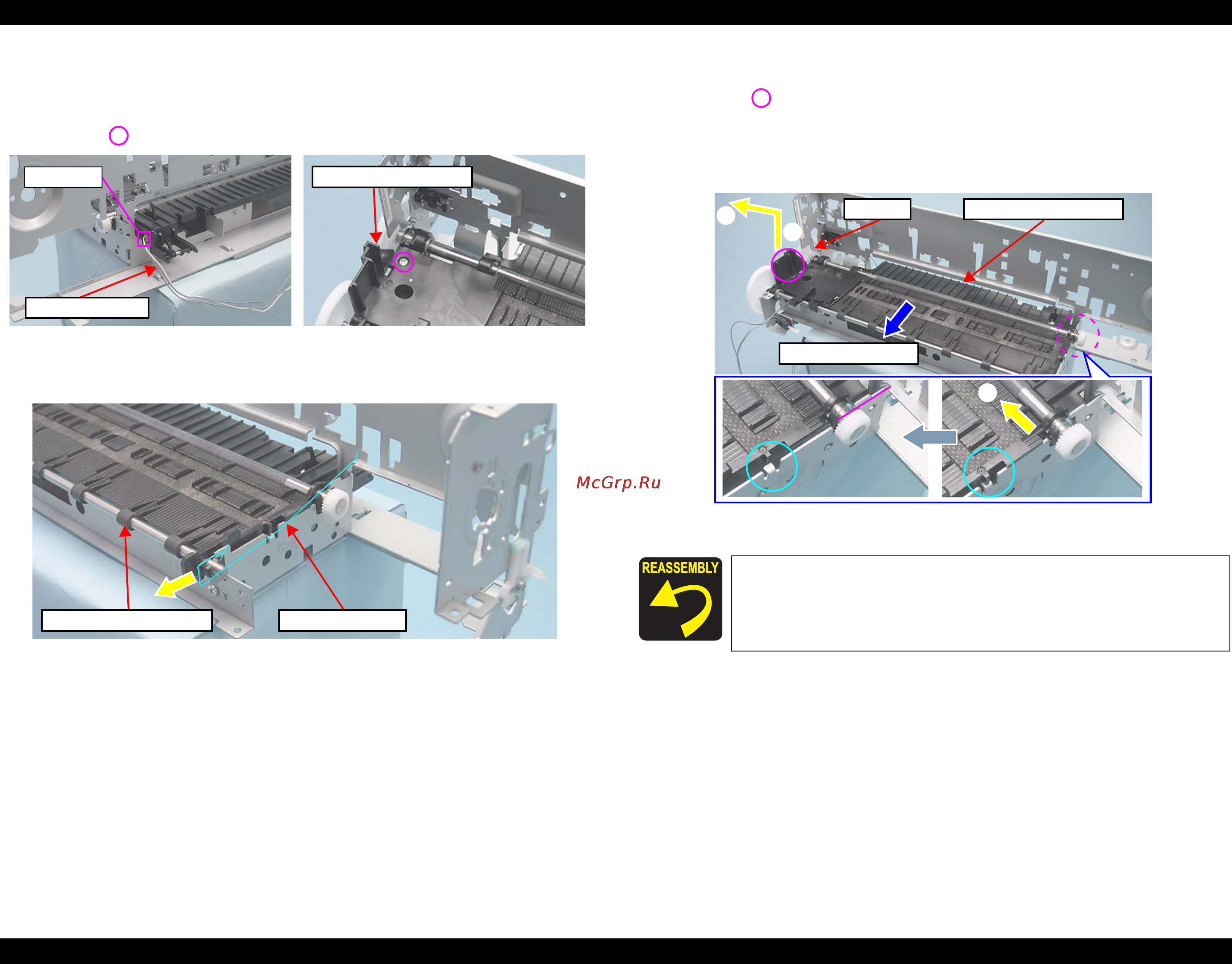

2. Disconnect the connector of the PE Sensor Cable on the rear side of the
printer.
3. Remove the screw that secures the Front Paper Guide Assy.
• Screw : C.B.S. M3x6 (tightening torque: 7-9 kgf.cm)
Figure 1-109. Removing the PE Sensor Cable
4. Pull out the EJ Ground Spring to the front side.
Figure 1-110. Removing the EJ Ground Spring
5. Remove the Front Paper Guide Assy, following the steps below.
(1) Lift part to disengage the left side of the Front Paper Guide Assy.
(2) Slide the assy leftward little by little to disengage the right side of the assy.
(3) Remove the Front Paper Guide Assy while releasing its shaft from the cutout
of the rib on the left side of the Main Frame.
Figure 1-111. Removing the Front Paper Guide Assy
PE Sensor Cable
Connector
Front Paper Guide Assy
Front Paper Guide Assy EJ Ground Spring
Lubrication is required. See the page given below for the
lubrication information.
Lubrication of Front Paper Guide Assy (p.91)
1
2
Removal Direction
Front Paper Guide Assy
Cutout
2
