L800/L801 Revision A
Disassembly/Reassembly CDR Tray Sensor 60
Confidential
1.5.18 CDR Tray Sensor
Removal procedure
1. Disengage the hook of the CDR Tray Sensor.
2. Turn the CDR Tray Sensor 90 degrees in the direction of the arrow to
disengage its another hook, and pull it out from the hole to remove it together
with the CDR Guide Sensor.

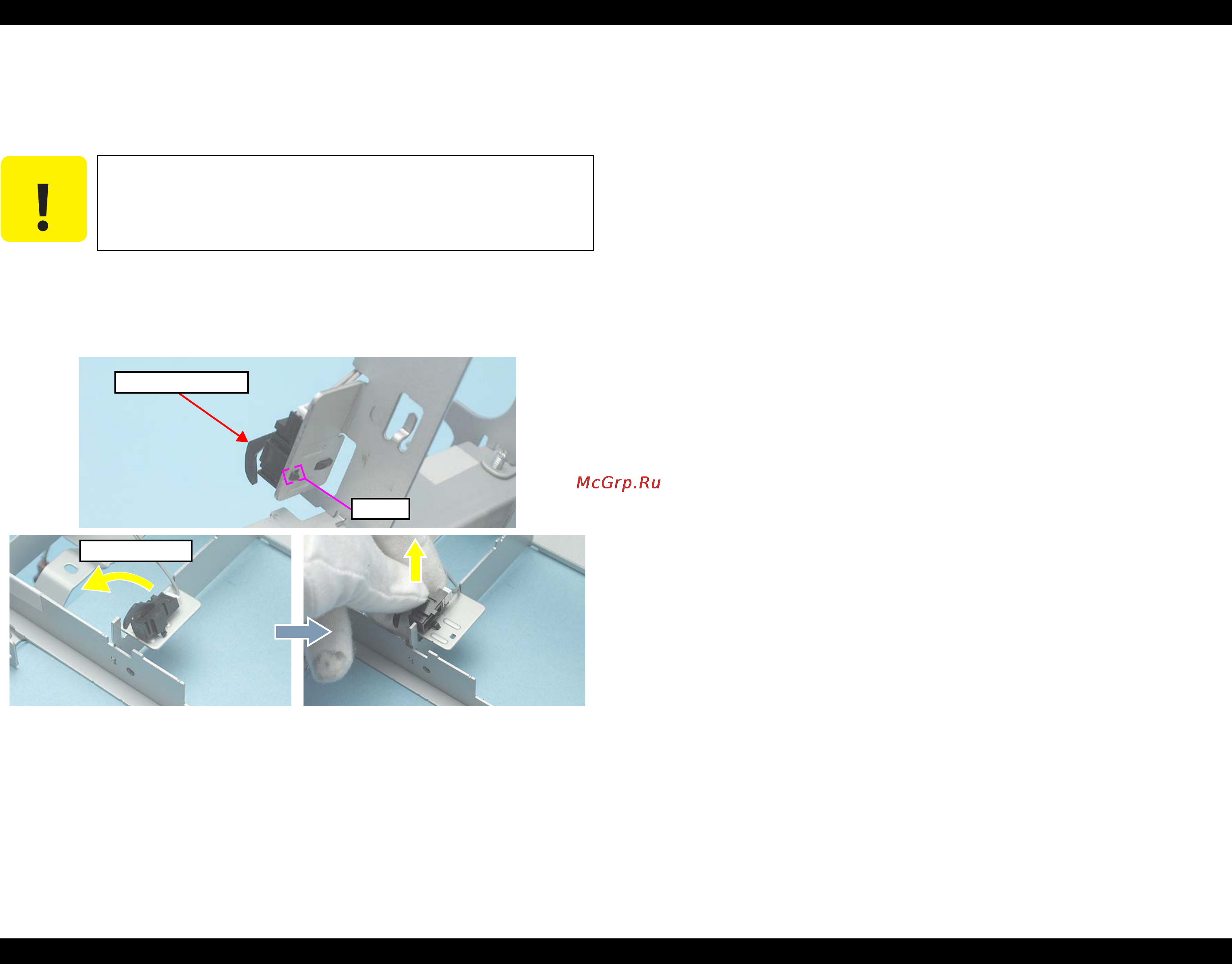

Figure 1-115. Removing the CDR Tray Sensor
C A U T I O N
Always follow the steps below to remove the CDR Tray Sensor, or
one of its hooks can be broken.
90-degrees Turn
Hook
CDR Tray Sensor
