EDS-828 Series EDS Configurator GUI
4-5
Export Configuration
The Export Configuration utility is used to save the entire configuration of a specified EDS switch to a text file.

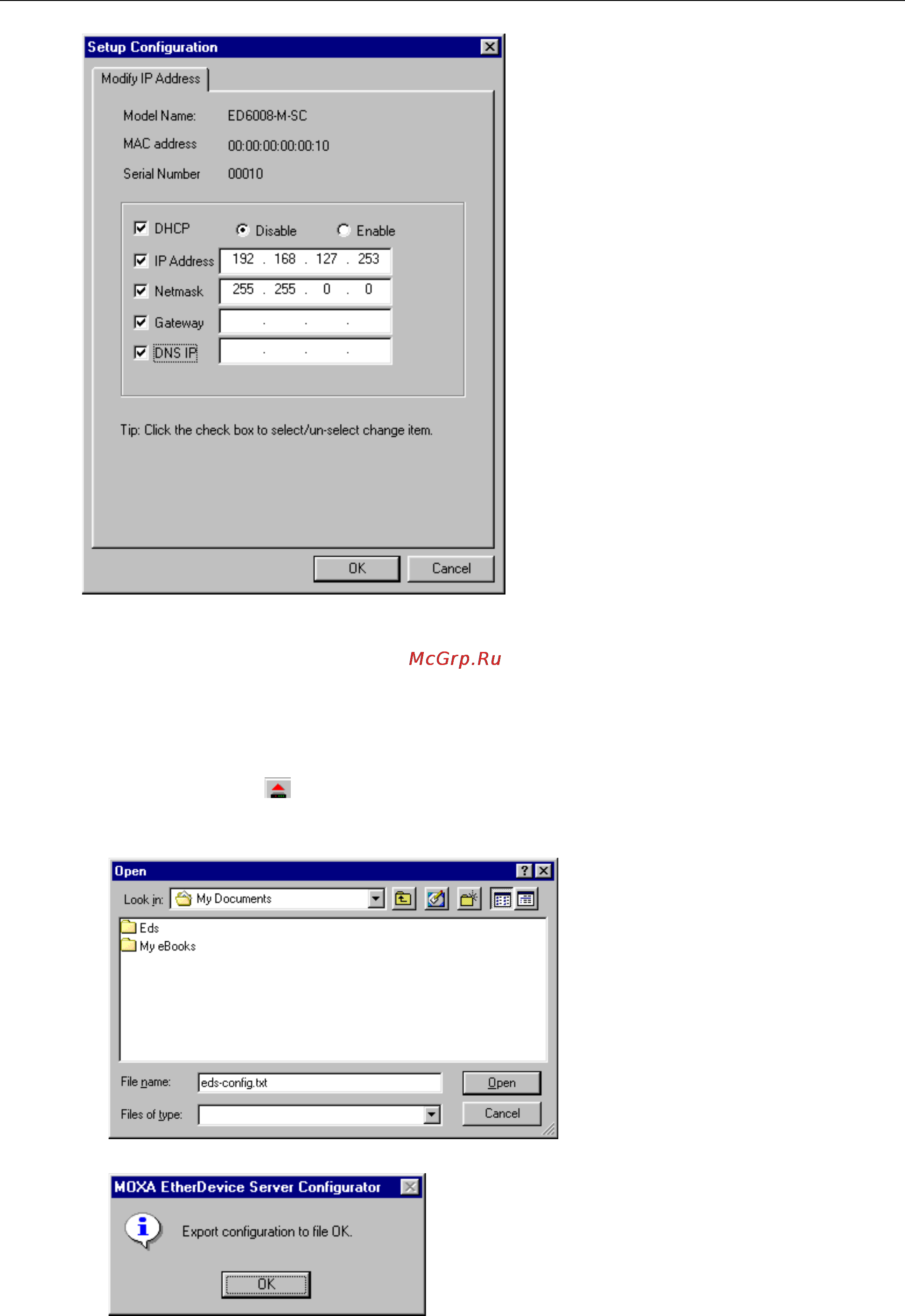

Take the following steps to export a configuration:
1. Highlight the switch (from the Server list in the Configurator window’s left pane), and then click on the
Export toolbar icon or select Export Configuration from the Configuration menu. Use the Open
window to navigate to the folder in which you want to store the configuration, and then type the name of the
file in the File name input box. Click on Open.
2. Click on OK when the Export configuration to file OK message appears.
