EDS-828 Series Featured Functions

3-80

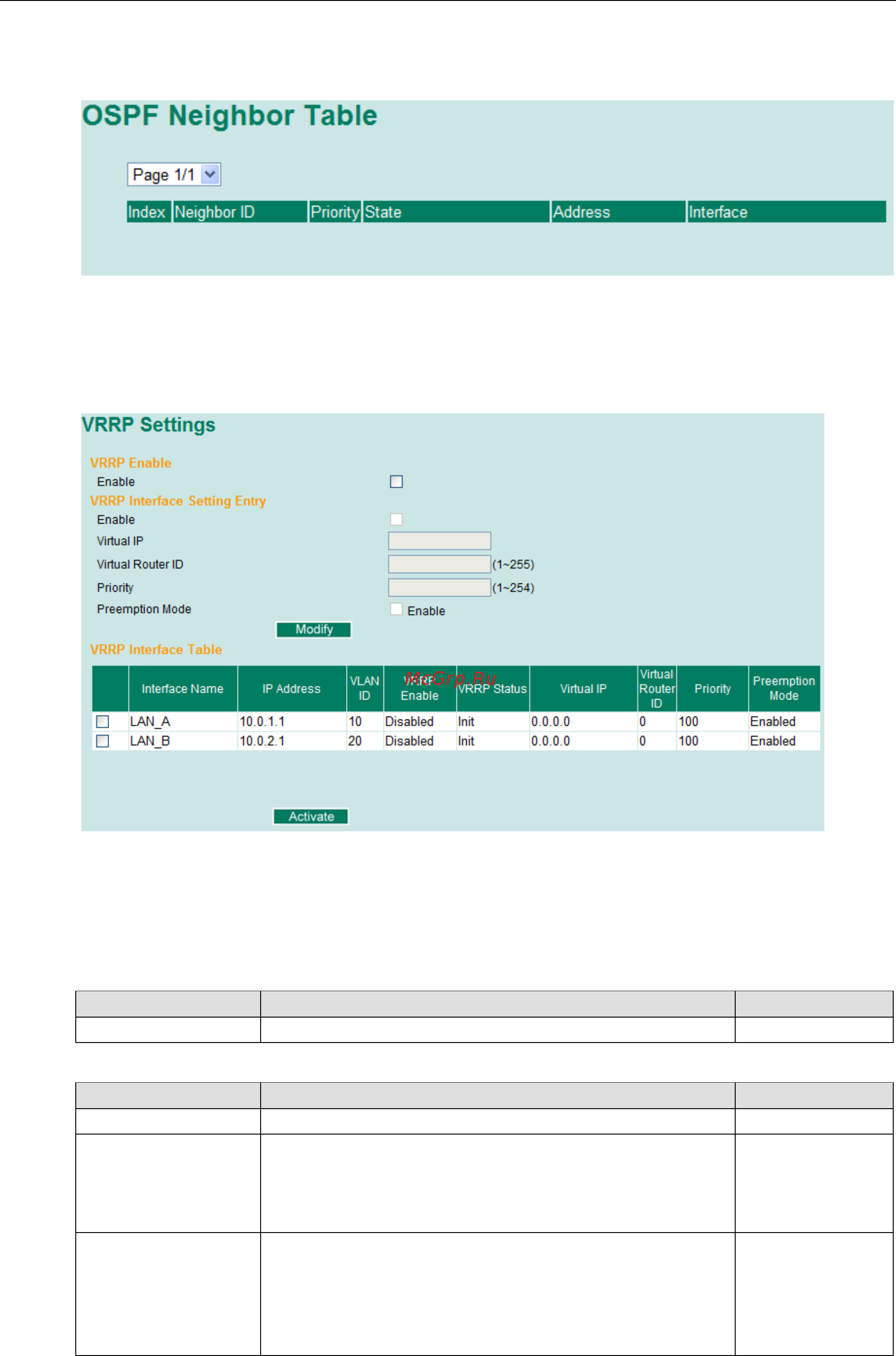

OSPF Database Table

Shows the current OSPF database table.

VRRP Settings

The Virtual Router Redundancy Protocol (VRRP) feature can solve the static configuration problem. VRRP

enables a group of routers to form a single virtual router with a virtual IP address. The LAN clients can then be

configured with the virtual router’s virtual IP address as their default gateway. The virtual router is the

combination of a group of routers, and also known as a VRRP group.

Enable

Setting Description Factory Default

Enable Checkmark the checkbox to enable the VRRP. N/A

VRRP Interface Setting Entry

Setting Description Factory Default

Enable Determines to enable the VRRP entry or not. Disabled

Virtual IP L3 switches / routers in the same VRRP group must have the

identical virtual IP address like VRRP ID. This virtual IP

address must belong to the same address range as the real IP

address of the interface.

0.0.0.0

Virtual Router ID Virtual Router ID is used to assign a VRRP group. The L3

switches / routers, which operate as master / backup, should

have the same

ID.

Moxa L3 switches / routers support one virtual router ID for

each interface. The usable range of ID is 1 to 255.
