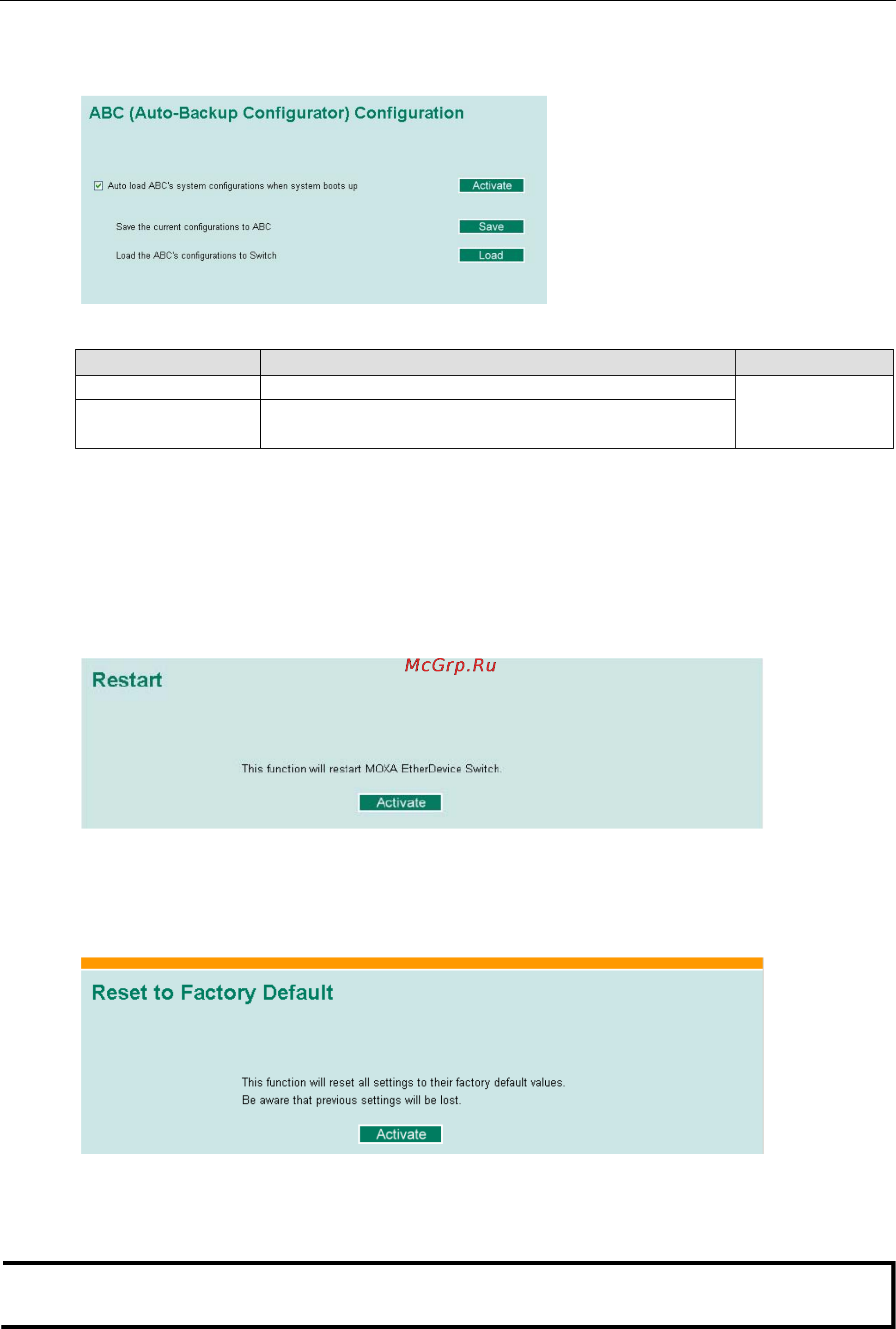

EDS-828 Series Featured Functions
3-13
System File Update—By Backup Media
Auto load system configurations when system boots up
Setting Description Factory Default
Enable Enables Auto load system configurations when system boots up
Enable
Disable Disables Auto load system configurations when system boots
up
Save the current configurations to ABC
To export the current configuration file of the EDS-828, click on Save to save it to the ABC.
Load the ABC’s configurations to the Switch
To import the configuration file of the EDS-828, click on Load to load it to the Switch
Restart
This function is used to restart the Moxa EtherDevice Switch
Factory Default
The Factory Default function is included to give users a quick way of restoring the EDS-828’s configuration
settings to their factory default values. This function is available in the Console utility (serial or Telnet) and Web
Browser interface.
NOTE
After activating the Factory Default function, you will need to use the default network settings to re
-
establish
a web
-browser or Telnet connection with your EDS-828.
