EDS-828 Series Featured Functions
3-7

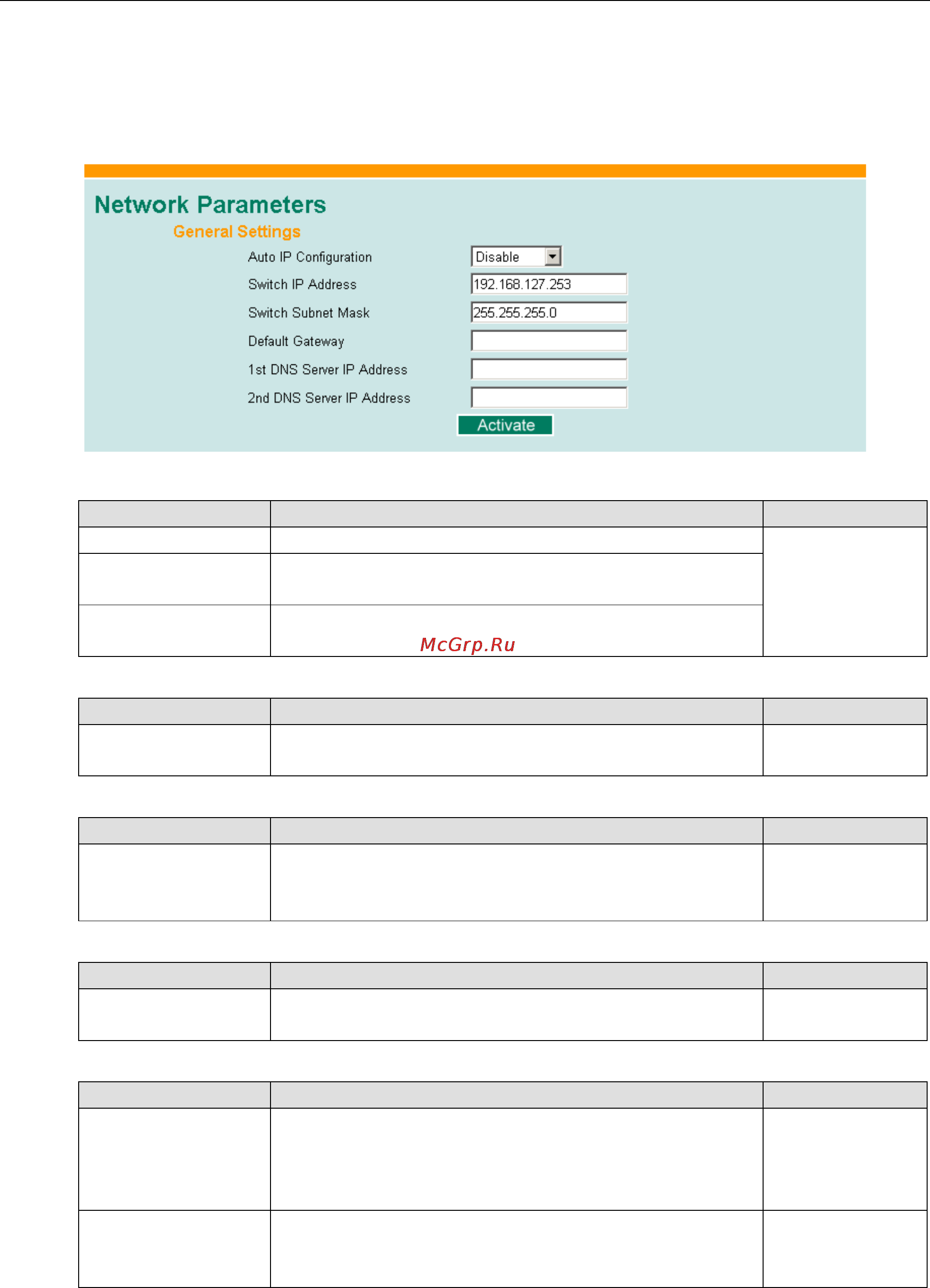

Network
The Network configuration allows users to modify the usual TCP/IP network parameters. An explanation of
each configuration item is given below.
Auto IP Configuration
Setting Description Factory Default
Disable Set up the EDS-828’s IP address manually. Disable
By DHCP The EDS-828’s IP address will be assigned automatically by the
network’s DHCP server.
By BootP The EDS-828’s IP address will be assigned automatically by the
network’s BootP server.
Switch IP Address
Setting Description Factory Default
IP Address of the
EDS-828
Identifies the EDS-828 on a TCP/IP network. 192.168.127.253
Switch Subnet Mask
Setting Description Factory Default
Subnet mask of the
EDS-828
Identifies the type of network to which the EDS-828 is
connected (e.g., 255.255.0.0 for a Class B network, or
255.255.255.0 for a Class C network).
255.255.255.0
Default Gateway
Setting Description Factory Default
Default Gateway
of the
EDS-828
The IP address of the router that connects the
LAN to an outside
network.
None
DNS IP Address
Setting Description Factory Default
1st DNS Server’s
IP Address
The IP address of the DNS Server used by your network.
After
entering the DNS Server’s IP address, you can input the
EDS-828’s url (e.g.,
www.eds.company.com
) in your browser’s
address field, instead of entering the IP address.
None
2nd DNS Server’s
IP Address
The IP address of the DNS Server used by your network. The
EDS-828 will try to locate the 2nd DNS Server if the 1st DNS
Server fails to connect.
None
