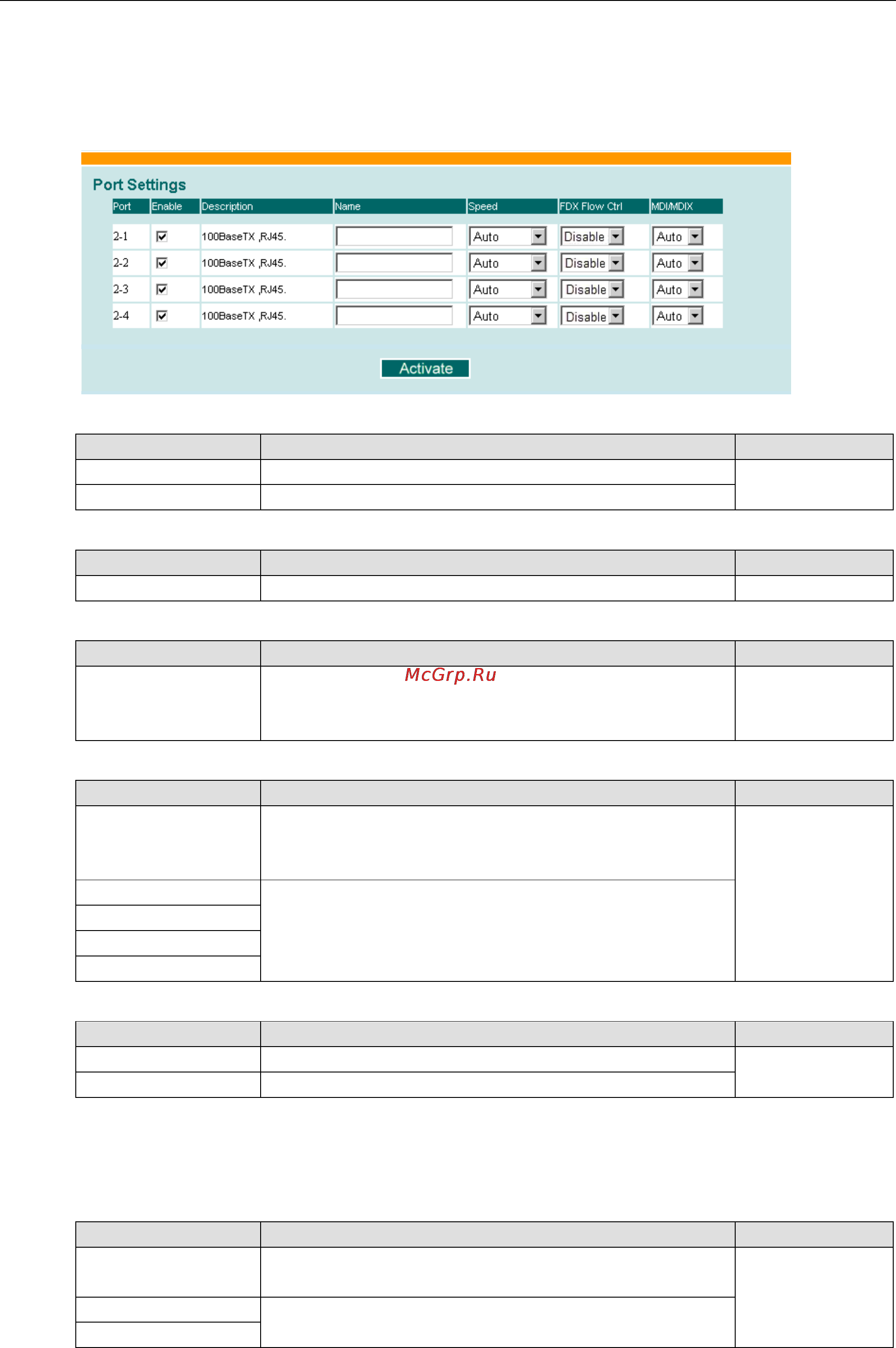

EDS-828 Series Featured Functions
3-6
Port
Port settings are included to give the user control over Port Access, Port Transmission Speed, Flow Control,
and Port Type (MDI or MDIX). An explanation of each configuration item is given below.
Enable
Setting Description Factory Default
checked Allows data transmission through the port. enabled
unchecked Immediately shuts off port access.
Description
Setting Description Factory Default
Media type Displays the media type for each module’s port N/A
Name
Setting Description Factory Default
Max. 63 Characters Specify an alias for each port, and assist the administrator in
remembering important information about the port.
E.g., PLC 1
None
Port Transmission Speed
Setting Description Factory Default
Auto Allows the port to use the IEEE 802.3u protocol to negotiate
with connected devices. The port and connected devices will
determine the best speed for that connection.
Auto-nego
100M-Full Choose one of these fixed speed options if the opposing
Ethernet device has trouble auto-negotiating for line speed.
100M-Half
10M-Full
10M-Half
FDX Flow Control
Setting Description Factory Default
Enable Enables flow control for this port when in auto-nego mode. Disable
Disable Disables flow control for this port when in auto-nego mode.
This “FDX Flow Control” setting enables or disables the flow control capability of this port when the “port
transmission speed” setting is in “auto” mode. The final result will be determined by the “auto” process
between the EDS-828 and connected devices.
MDI/MDIX
Setting Description Factory Default
Auto Allows the port to auto detect the port type of the opposing
Ethernet device and change the port type accordingly.
Auto
MDI
Choose the MDI or MDIX option if the opposing Ethernet device
has trouble auto-negotiating for port type.
MDIX
