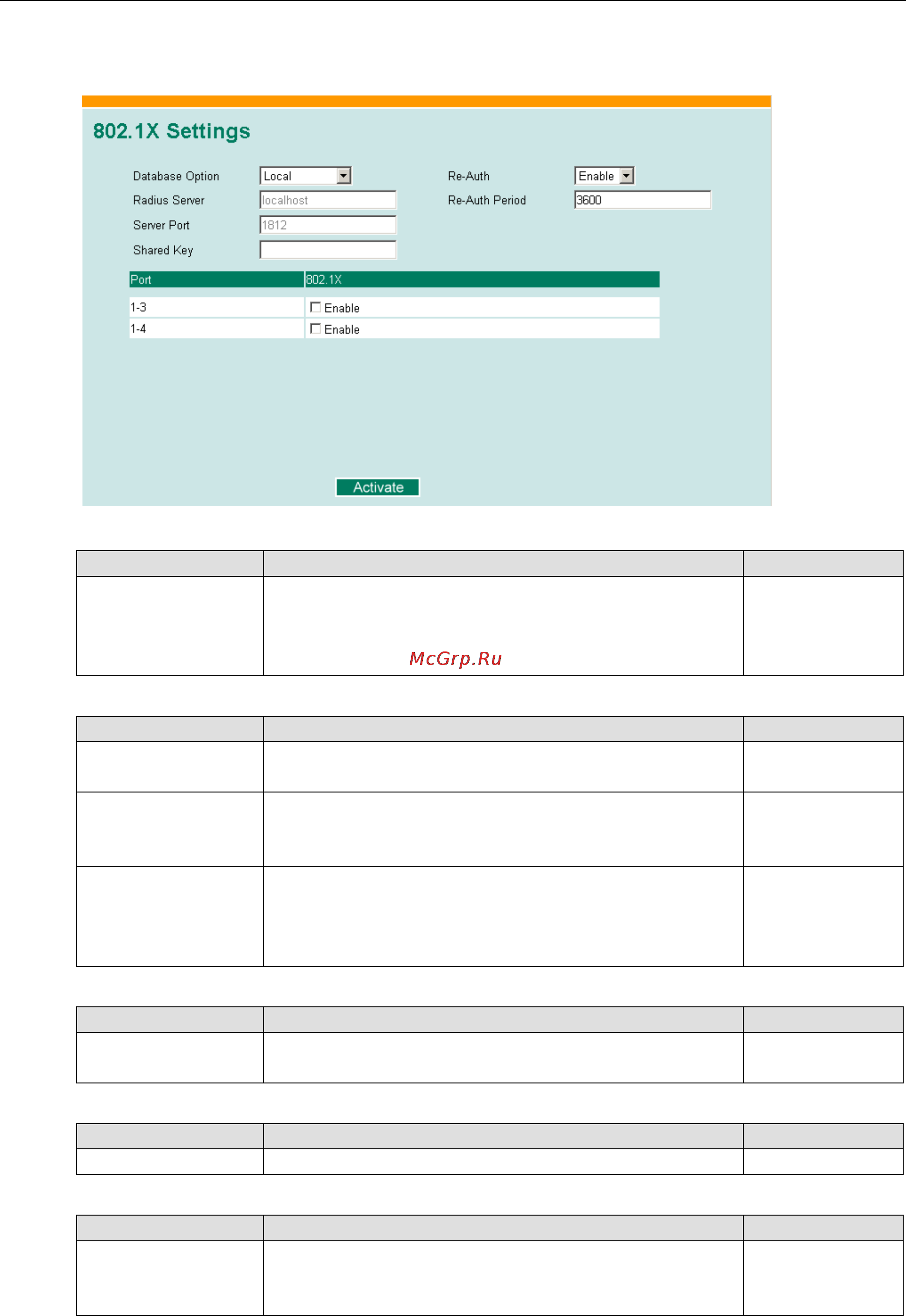

EDS-828 Series Featured Functions
3-55
Configuring IEEE 802.1X
802.1X
Setting Description Factory Default
Enable/Disable Click the checkbox(es) under the 802.1X column to enable IEEE
802.1X for one or more ports. All end stations must enter
usernames and passwords before access to these ports is
allowed.
Disable
Database Option
Setting Description Factory Default
Local
(Max. 32 users)
Select this option when setting
the Local User Database as the
authentication database.
Local
Radius Select this option to set an external RADIUS server as the
authentication database. The authentication mechanism is
“EAP-MD5.”
Local
Radius, Local Select this option to make using
an external RADIUS server as
the authentication database the first priority. The
authentication mechanism is “EAP-MD5.”
The first priority is to
set the Local User Database as the authentication database.
Local
Radius Server
Setting Description Factory Default
IP address or domain
name
The IP address or domain name of the RADIUS server localhost
Server Port
Setting Description Factory Default
Numerical The UDP port of the RADIUS Server 1812
Shared Key
Setting Description Factory Default
alphanumeric (Max. 40
characters)
A key to be shared between the external RADIUS server and
the EDS-828. Both ends must be configured to use the same
key.
None
