EDS-828 Series Featured Functions
3-60
NOTE
The Traffic
-Overload, Traffic-Threshold (%), and Traffic-
Duration (sec.) Port Event items are related. If you
Enable the Traffic
-Overload event, then be sure to enter a nonzero Traffic-
Threshold percentage, as well as a
Traffic
-Duration between 1 and 300 seconds.
NOTE
Warning e
-mail messages will have sender given in the form:
Moxa_EtherDevice_Switch_0001@Switch_Location
where Moxa_EtherDevice_Switch is the default Switch Name, 0001 is the EDS
-828’s serial number, and
Switch_Location is t
he default Server Location.
Refer to the Basic Settings section to see how to modify Switch Name and Switch Location.

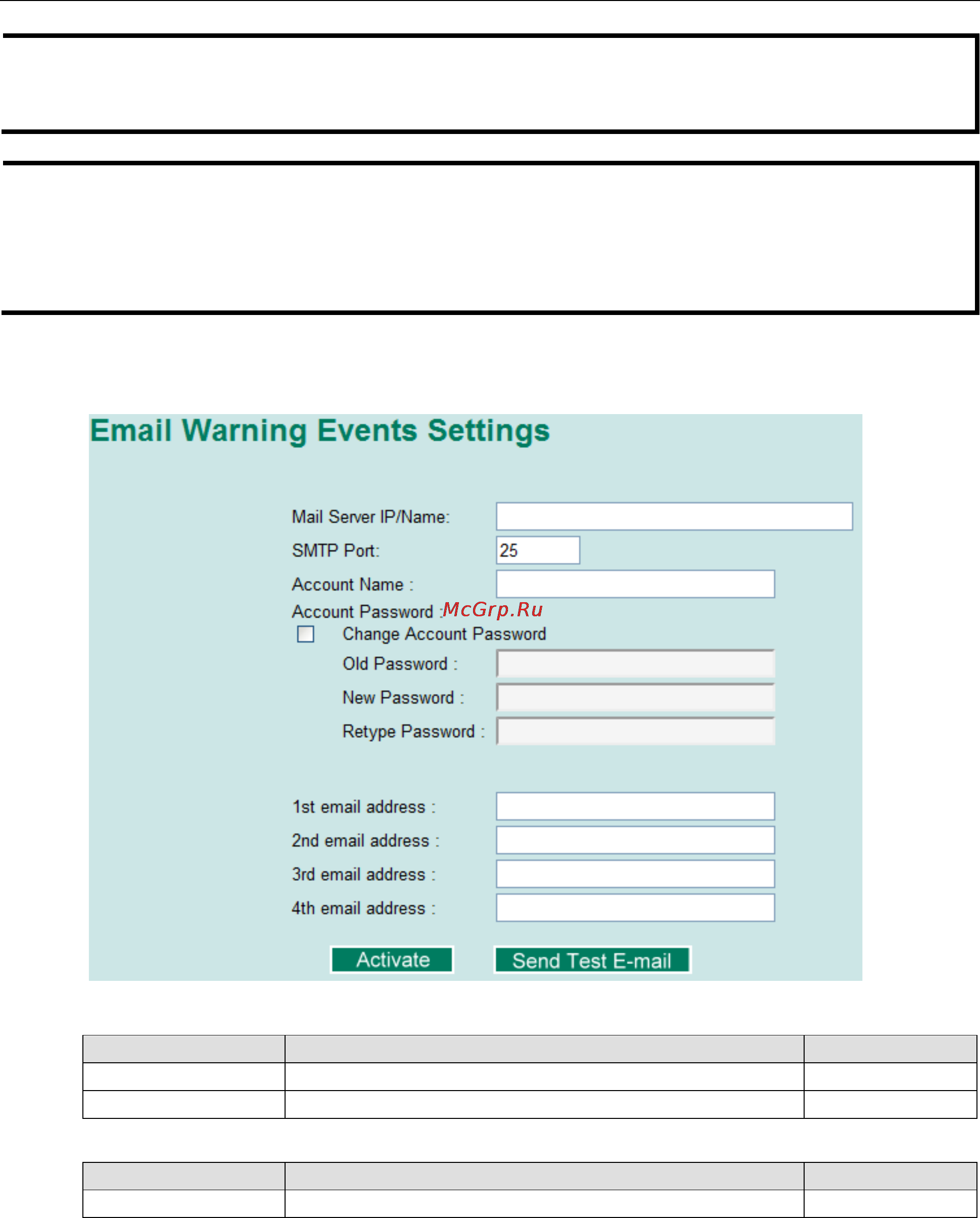

Email Warning Event Settings
Mail Server IP/Name and SMTP Port
Setting Description Factory Default
IP address The IP Address of your email server. None
SMTP The port number of your SMTP server. 25
Account Name
Setting Description Factory Default
Max. 45 Charters Your email account. None
