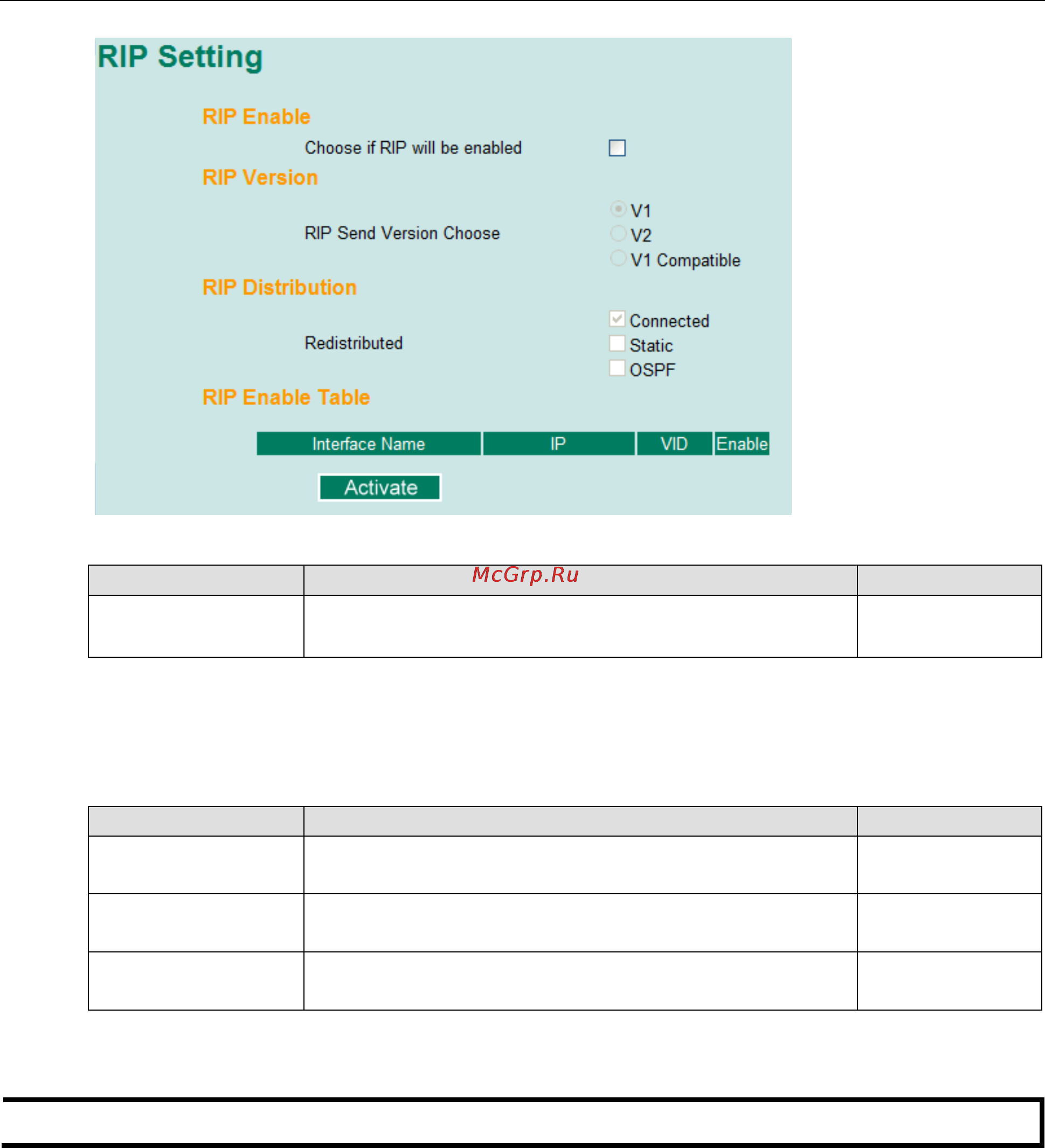

RIP Enable

Setting Description Factory Default

Enable/Disable This option is used to enable or disable the RIP function

globally.

Disabled

RIP Version

You can specify which version the RIP should follow. You can also select V1 Compatibility to make sure the RIP

packet of Version 1 can be received as well.

RIP Distribution

Setting Description Factory Default

Connected The entries that are learned from the connected ports will be

re-distributed if this option is enabled.

Unchecked

(disabled)

Static The entries that are set in a static route will be re-

distributed if

this option is enabled.

Unchecked

(disabled)

OSPF The entries that are learned from the OSPF will be

re-distributed if this option is enabled.

Unchecked

(disabled)

RIP Enable Table

This is a table showing the entries learned from RIP.

NOTE

The RIP settings will not function until you click the Activate button.

OSPF Settings

OSPF (Open Shortest Path First) is a dynamic routing protocol for use in Internet Protocol (IP) networks.

Specifically, it is a link-state routing protocol and falls into the group of interior gateway protocols, operating

within a single autonomous system. As a link-state routing protocol, OSPF establishes and maintains neighbor

relationships in order to exchange routing updates with other routers. The neighbor relationship table is called

an adjacency database in OSPF. OSPF forms neighbor relationships only with the routers directly connected to

it. In order to form a neighbor relationship between two routers, the interfaces used to form the relationship

must be in the same area. An interface can only belong to a single area. With OSPF enabled, EDS-828 is capable

to exchange routing information with other L3 switches or routers more efficiently in a large system. The OSPF

Settings page is used to set up OSPF configurations.
