OSPF Area Entry

Area ID, Area Type, Metric

Setting Description Factory Default

Area ID Define the areas that this L3 switch/router connects to. 0.0.0.0

Area Type Define the area type, Stub Area or NSSA. Normal

Metric Define the metric value. 0

OSPF Area Table

Shows the current OSPF area table in the L3 switch/router.

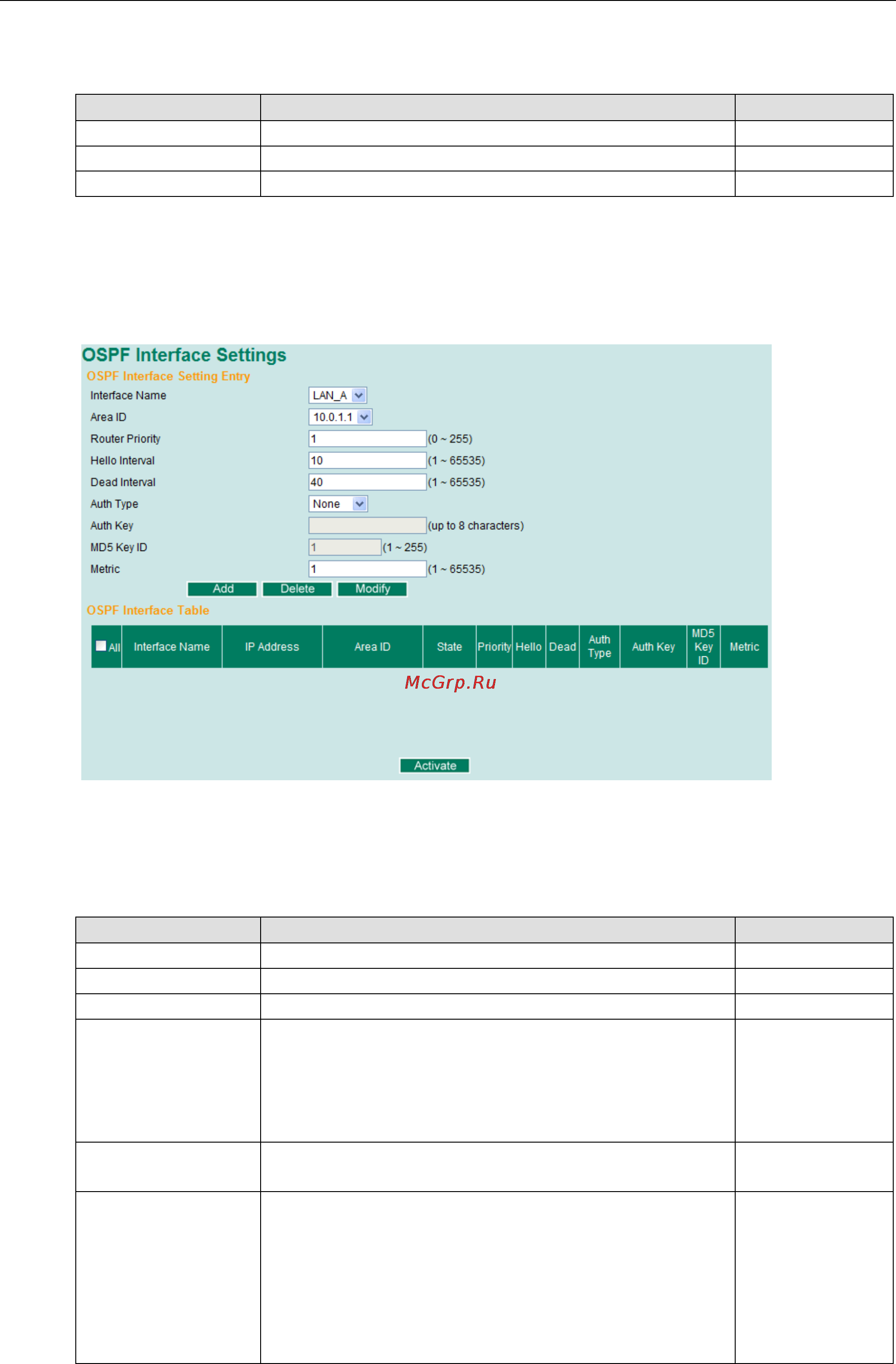

OSPF Interface Settings

Before using OSPF, we have to assign an interface for each area. Also the detailed information of the interface

can be defined in this section. See the details in the following descriptions:

OSPF Interface Setting Entry

Configuration details

Setting Description Factory Default

Interface Name Define the interface name. N/A

Area ID Define the Area ID. N/A

Router Priority Define the L3 switch/router’s priority. 1

Hello Interval Hello packets are packets that an OSPF process sends to its

OSPF neighbors to maintain connectivity with those neighbors.

The hello packets are sent at a configurable interval (in

seconds). The value of all hello intervals must be the same

within a network.

Dead Interval The dead interval is also a configurable interval (in seconds),

and defaults to four times the value of the hello interval.

Auth Type OSPF authentication allows the flexibility to authenticate OSPF

neighbors. Users can enable authentication to exchange

routing update information in a secure manner. OSPF

authentication can either be none, simple, or MD5. However,

authentication is not necessary to be set. If it is set, all L3

switches / routers on the same segment must have the same

password and authentication method.

None
