EDS-828 Series Featured Functions
3-27
Setting Description Factory Default
2nd Port Select any port of the EDS-828 to be one of the redundant
ports.
Ring 1:2nd port of
last IM module
Ring 2: not
defined**
Enable Ring Coupling
Setting Description Factory Default
Enable Select this EDS-828 as Coupler Not checked
Disable Do not select this EDS-828 as Coupler
Coupling Mode
Setting Description Factory Default
Dual Homing Select this item to change to the Dual Homing configuration
page.
Primary Port: not
defined**
Backup Port: not
defined**
Ring Coupling (backup)
Select this item to change to the Ring Coupling (backup)
configuration page.
Coupling Port: not
defined**
Ring Coupling
(primary)
Select this item to change to the Ring Coupling (primary)
configuration page
Coupling Port: not
defined**
Primary/Backup Port
Setting Description Factory Default
Primary Port Select any port of the EDS-828 to be the primary ports. not defined**
Backup Port Select any port of the EDS-828 to be the backup port. not defined**
**You should manually adjust this port to another available port before enabling the architecture.

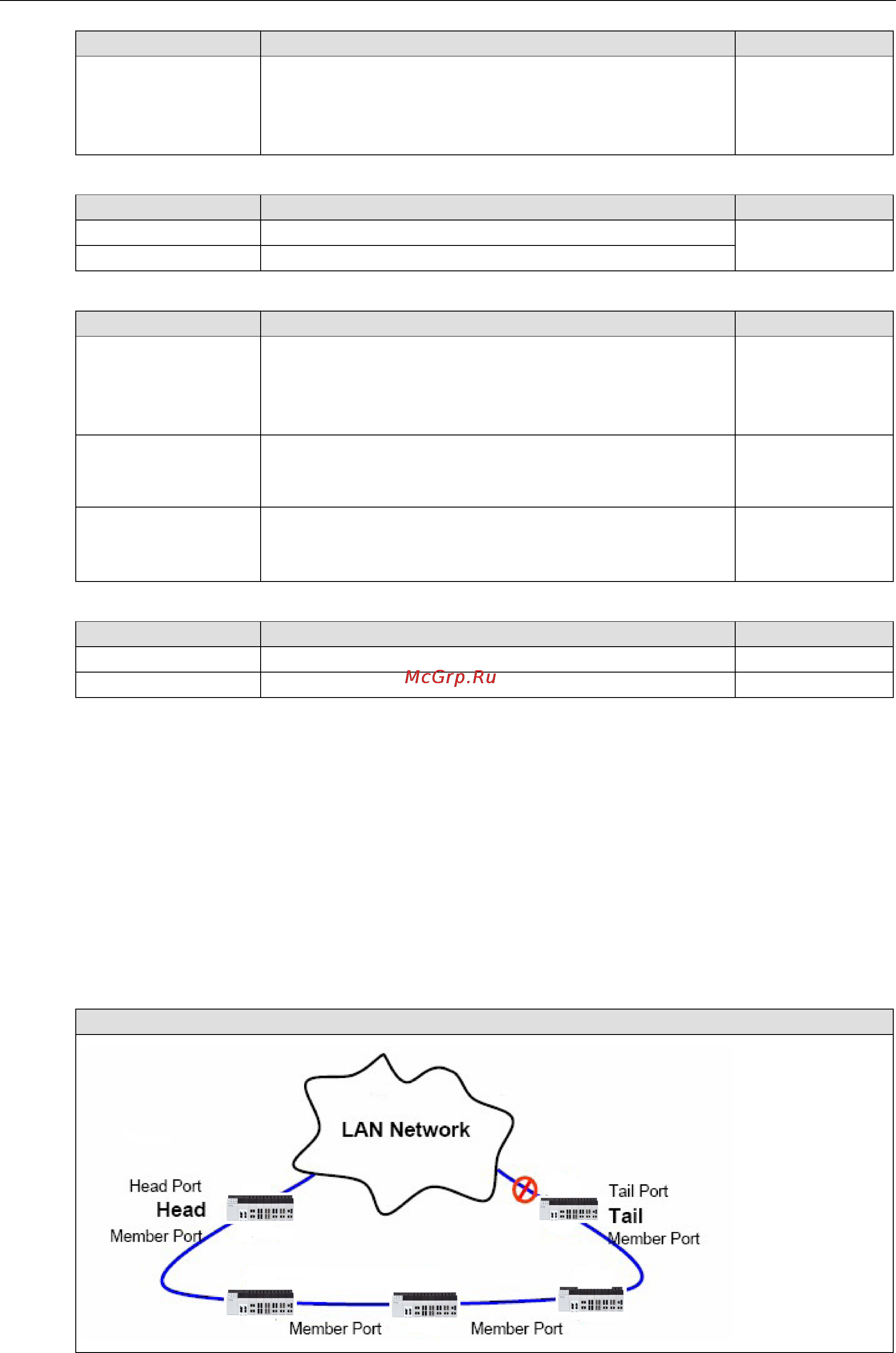

The Turbo Chain Concept
Moxa’s Turbo Chain is an advanced software-technology that gives network administrators the flexibility of
constructing any type of redundant network topology. When using the “chain” concept, you first connect the
Ethernet switches in a chain and then simply link the two ends of the chain to an Ethernet network, as
illustrated in the following figure.
Turbo Chain can be used on industrial networks that have a complex topology. If the industrial network uses a
multi-ring architecture, Turbo Chain can be used to create flexible and scalable topologies with a fast
media-recovery time.
Setting Up Turbo Chain
