Moxa EDS-82810G [41/113] Head switch configuration

EDS-828 Series Featured Functions

3-28

1. Select the Head switch, Tail switch, and Member switches.

2. Configure one port as the Head port and one port as the Member port in the Head switch, configure

one

port as the Tail port and one port as the Member port in the Tail switch, and configure two ports as

Member ports in each of the Member switches.

3. Connect the Head switch, Tail switch, and Member switches as shown in the diagram.

The path connecting to the Head port is the main path, and the path connecting to the Tail port is the back up

path of the Turbo Chain. Under normal conditions, packets are transmitted through the Head Port to the LAN

Network. If any Turbo Chain path is disconnected, the Tail Port will be activated to continue packet

transmission.

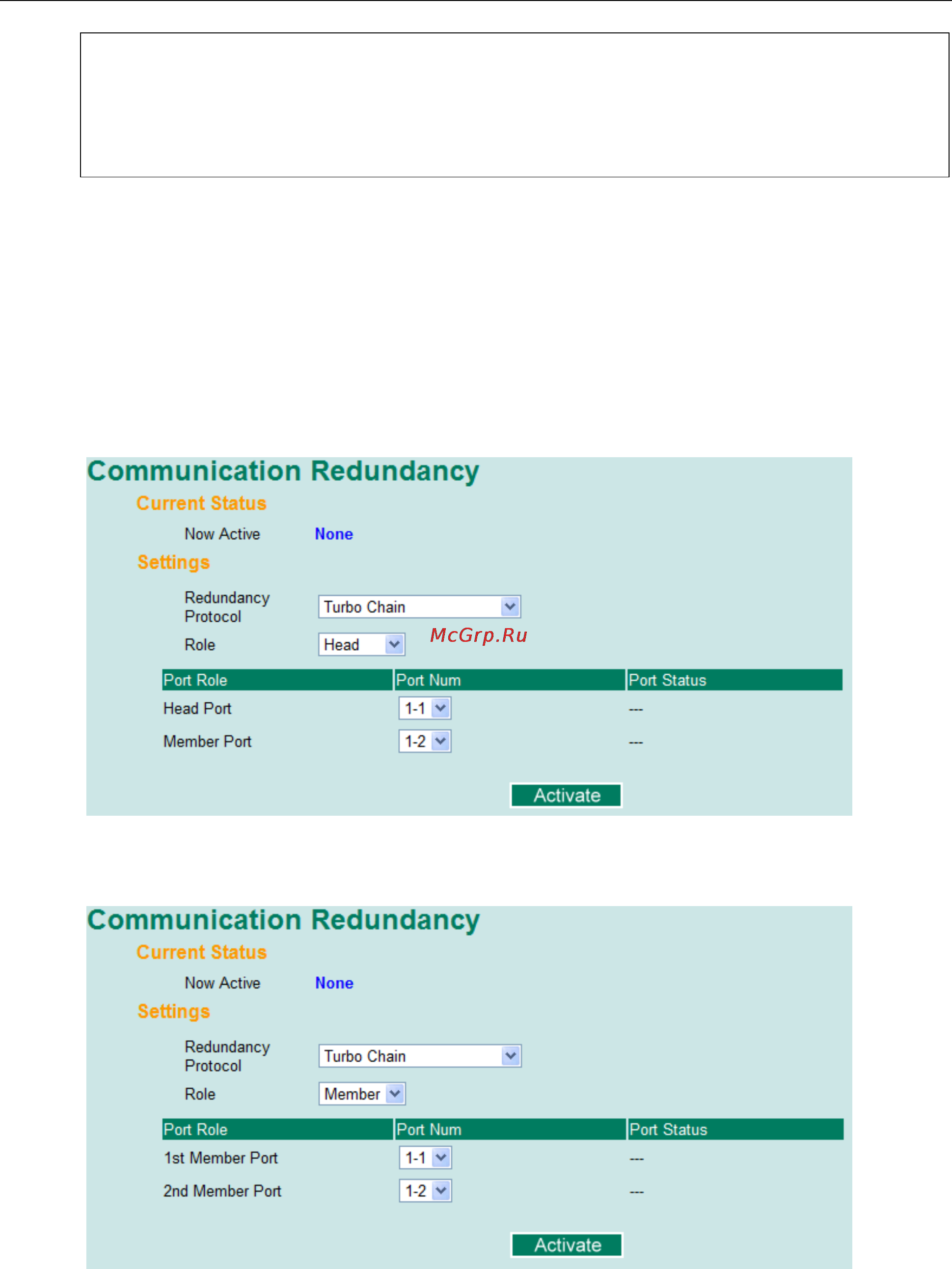

Configuring “Turbo Chain”

Head Switch Configuration

Member Switch Configuration
