EDS-828 Series Featured Functions
3-81
Setting Description Factory Default
Priority D
etermines priority in a VRRP group. The priority value range is
1 to 255 and the 255 is the highest priority. If several L3
switches / routers have the same priority, the router with
higher IP address has the higher priority. The usable range is “1
to 255”.
100
Preemption Mode Determines whether a backup L3 switch / router will take the
authority of master or not.
Enabled
Routing Table

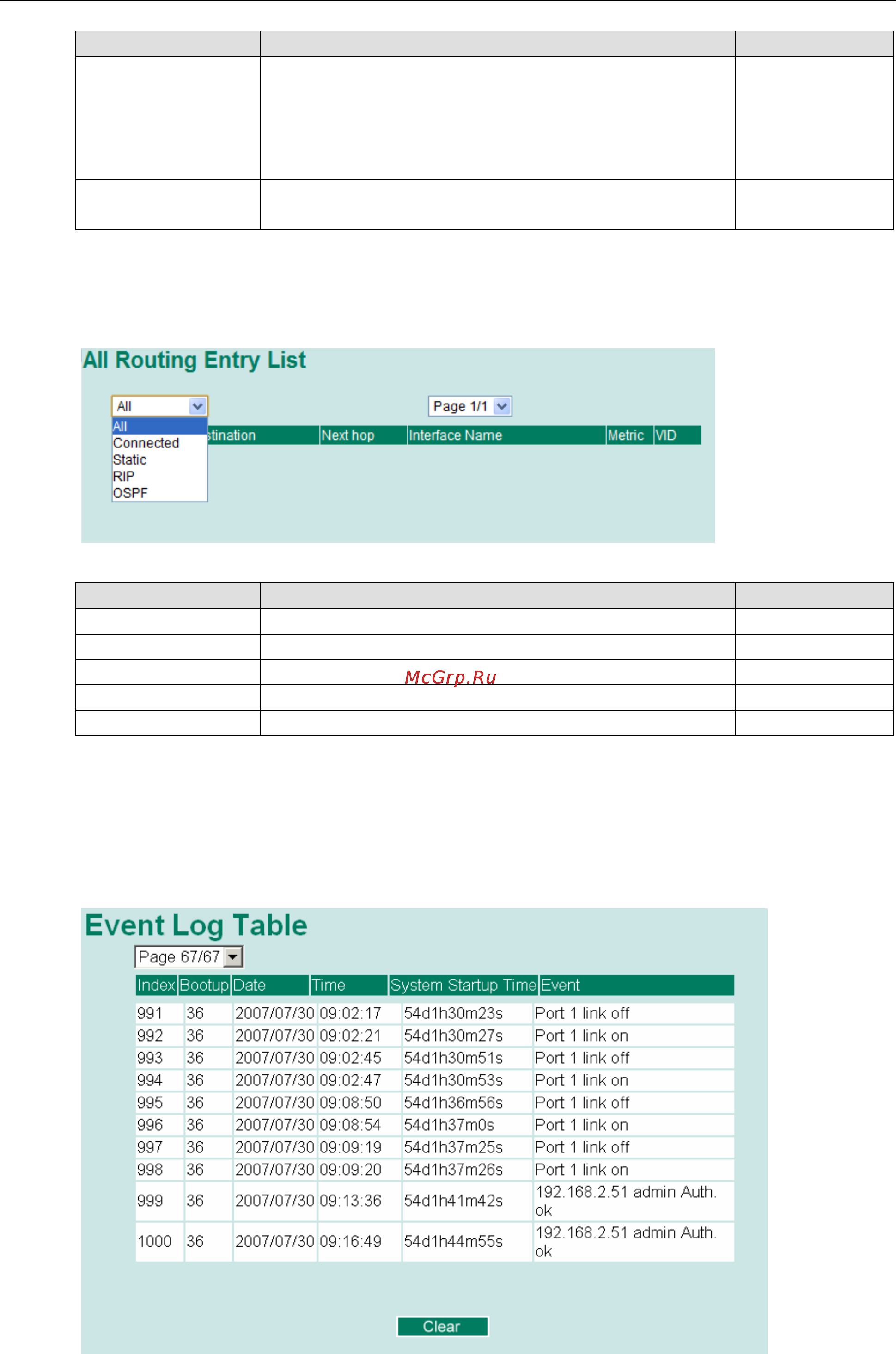

The Routing Table page shows all routing entries used by the EDS-828.
All Routing Entry List
Setting Description Factory Default
All Show all routing rules N/A
Connected Show connected routing rules N/A
Static Show static routing rules N/A
RIP Show RIP exchanged routing rules N/A
OSPF Show OSPF exchanged routing rules N/A
Using System Log
Event Log
