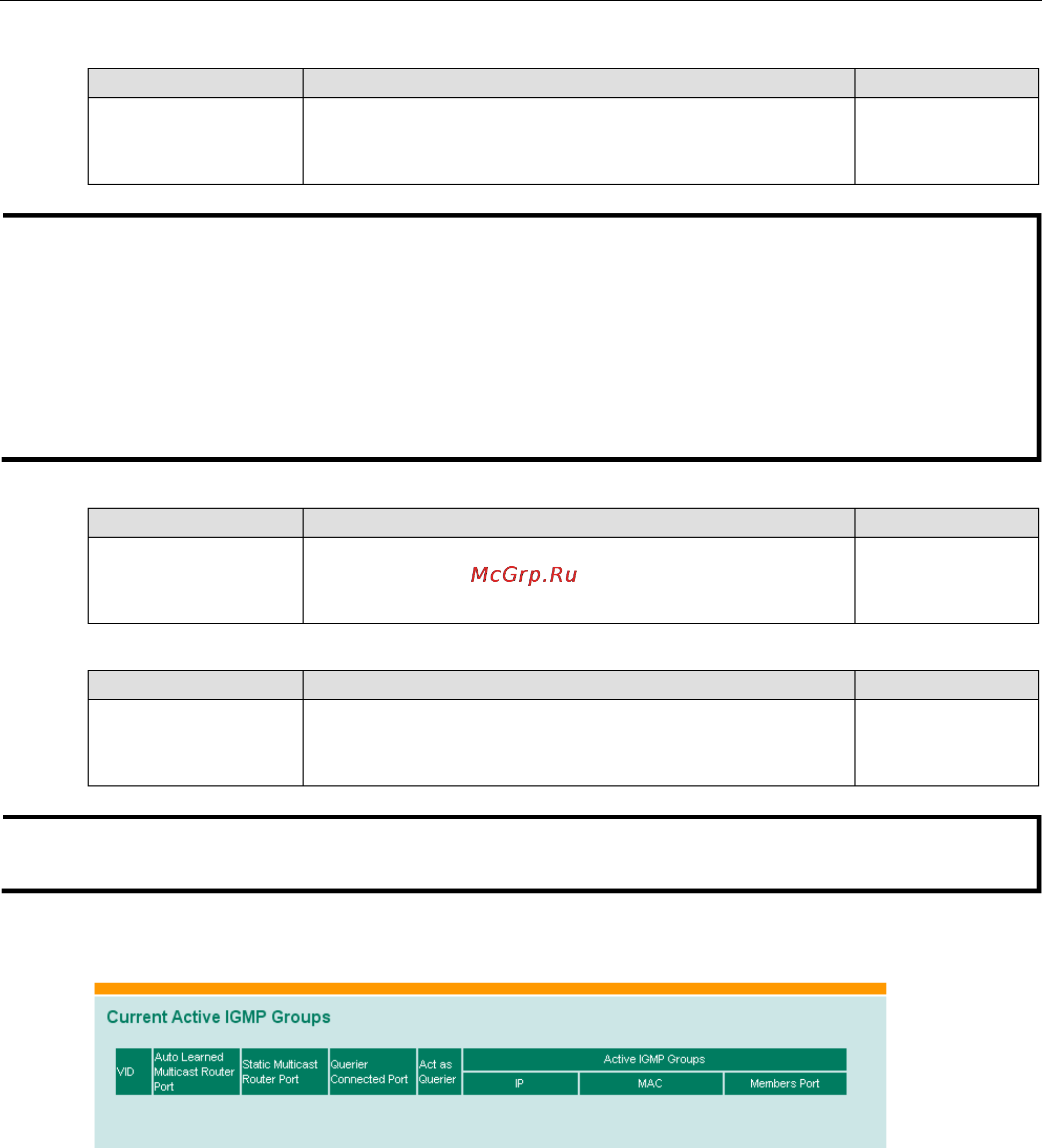

EDS-828 Series Featured Functions

3-49

IGMP Snooping

Setting Description Factory Default

Enable/Disable Click the checkbox to enable the IGMP Snooping function per

VLAN.

Enabled if IGMP

Snooping Enabled

Globally

NOTE

We suggest the following IGMP Snooping configurations

When the network includes third pa

rty switches, such as Cisco switches:

•

IGMP Snooping Enable— 

•

IGMP Snooping Enhanced Mode— 

When the network consists entirely of Moxa switches:

•

IGMP Snooping Enable— 

•

IGMP Snooping Enhanced Mode— 

Static Multicast Router Port

Setting Description Factory Default

Select/Deselect Click the checkbox to select which ports will connect to the

multicast routers. It’s active only when IGMP Snooping is

enabled.

Disabled

Querier

Setting Description Factory Default

Enable/Disable Click the checkbox to enable the EDS-828’s querier function. Enabled if IGMP

Snooping is

Enabled

Globally

NOTE

At least one switch must be designated the querier or enable IGMP snooping and GMRP when enabling Turbo

Ring and IGMP snooping simultaneously.

IGMP Table

The EDS-828 displays the current active IGMP groups that were detected.

The information includes VID, Auto-learned Multicast Router Port, Static Multicast Router Port,

Querier Connected Port, and the IP and MAC addresses of active IGMP groups.
