EDS-828 Series Featured Functions

3-29

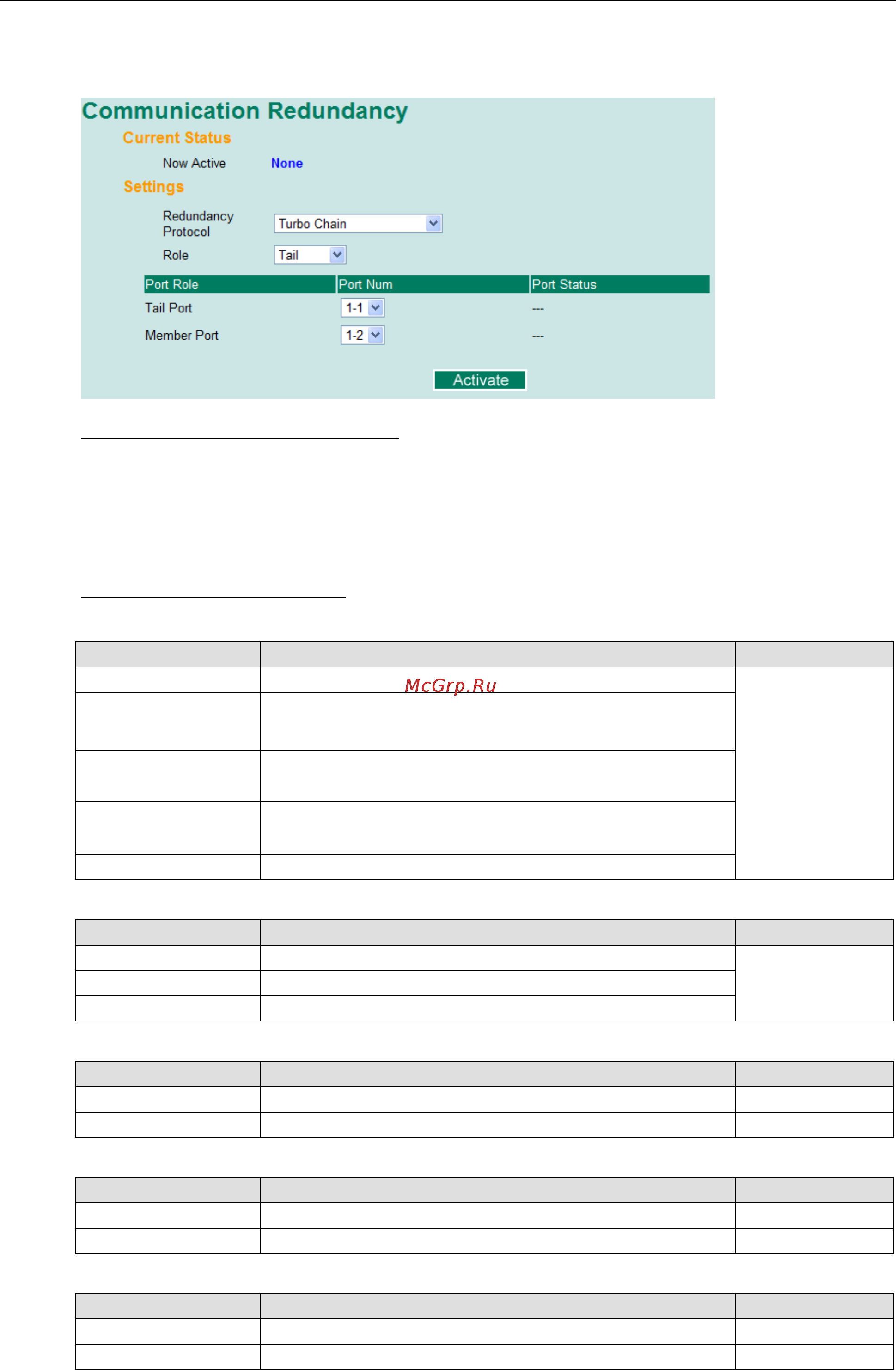

Tail Switch Configuration

Explanation of “Current Status” Items

Now Active

Shows which communication protocol is in use: Turbo Ring, Turbo Ring V2, RSTP, Turbo Chain or None.

The “Ports Status” indicators show Forwarding for normal transmission, Blocked if this port is connected to

the Tail port as a backup path and the path is blocked, and Link down if there is no connection.

Explanation of “Settings” Items

Redundancy Protocol

Setting Description Factory Default

Turbo Ring Select this item to change to the Turbo Ring configuration page.

None

Turbo Ring V2 Select this item to change to the Turbo Ring V2 configuration

page.

Turbo Chain Select this item to change to the Turbo Chain configuration

page

RSTP (IEEE

802.1W/1D)

Select this item to change to the RSTP configuration page.

None Ring redundancy is not active

Role

Setting Description Factory Default

Head Select this EDS as Head Switch Member

Member Select this EDS as Member Switch

Tail Select this EDS as Tail Switch

Head Role

Setting Description Factory Default

Head Port Select any port of the EDS to be the head port. port 1-1

Member Port Select any port of the EDS to be the member port. port 1-2

Member Role

Setting Description Factory Default

1st Member port Select any port of the EDS to be the 1st member port port 1-1

2nd Member port Select any port of the EDS to be the 2nd member port port 1-2

Tail Role

Setting Description Factory Default

Tail Port Select any port of the EDS to be the tail port. port 1-1

Member Port Select any port of the EDS to be the member port. port 1-2
