When you activate port trunking settings, some advanced functions will either be set to factory default values,

or disabled:

• Port stat, such as transmitting speed, duplex, and flow control will be set to the factory defaults.

• Communication Redundancy will be set to the factory default.

• 802.1Q VLAN will be set to the factory default and will be disabled.

• Multicast Filtering will be set to the factory default.

• Port Lock will be set to the factory default and will be disabled.

• Set Device IP will be set to the factory default

• Mirror Port will be set to the factory default and will be disabled.

Configuring Port Trunking

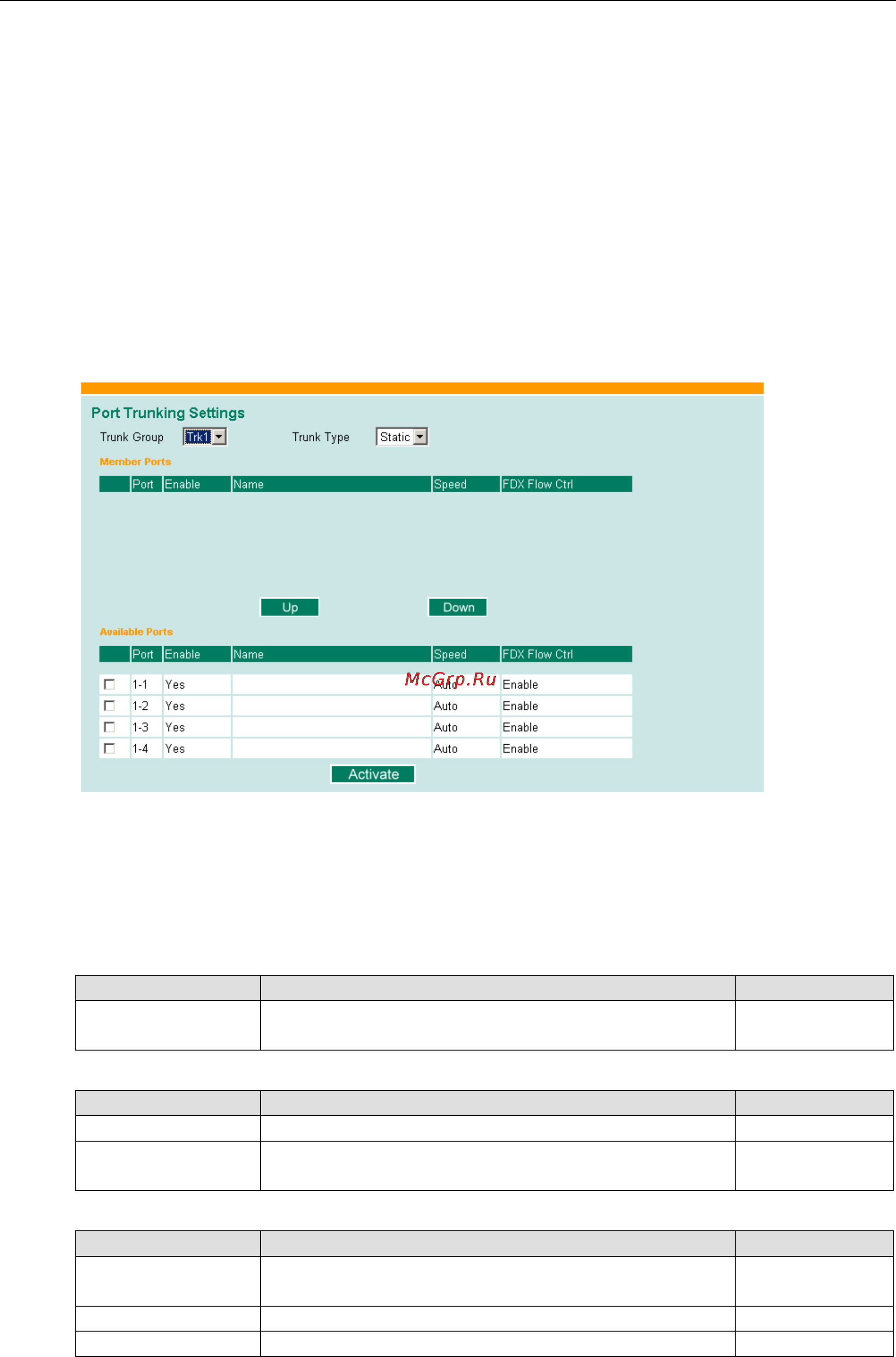

The Port Trunking Settings page is used to assign ports to a Trunk Group.

Step 1: Select Trk1, Trk2, Trk3, or Trk 4 from the Trunk Group drop-down box.

Step 2: Select Static or LACP from the Trunk Type drop-down box.

Step 3: Under Member Ports and Available Ports, checkmark to select specific ports.

Step 4: Use the Up / Down buttons to add/remove designated ports to/from a trunk group.

Trunk Group (Maximum of 4 trunk groups)

Setting Description Factory Default

Trk1, Trk2, Trk3, Trk4 Display or designate the Trunk Type and Member Ports for

Trunk Group 1, 2, 3, or 4.

Trk1

Trunk Type

Setting Description Factory Default

Static Designated Moxa proprietary trunking protocol Static

LACP Designated LACP (IEEE 802.3ad, Link Aggregation Control

Protocol)

Static

Member Ports/Available Ports

Setting Description Factory Default

Member/Available

Ports

Use Up/Down buttons to add/remove specific ports from

available ports to/from trunk group.

N/A

Check box Check to designate which ports to add or remove. Unchecked

Port Port number N/A
