15
D-Link DWL-8200AP User Manual
To configure the DWL-8200AP, use a computer which is connected to the DWL-8200AP with an
Ethernet cable (see the Network Layout diagram).
First, disable the Access the Internet using a proxy server function. To disable this function, go
to Control Panel > Internet Options > Connections > LAN Settings and un-check the enable
box.
Start your web browser program (Internet Explorer, Netscape Navigator) .
Type the IP address of the DWL-8200AP in the address field
(http://192.168.0.50) and press Enter.
Make sure that the IP addresses of the DWL-8200AP
and your computer are in the same subnet.
DWL-8200AP also supports HTTPS Browsing by using the Secure Socket Layer (SSL) Protocol.
Just change your Browser’s address line from “http://...” to “https://...” and log into the AP again.

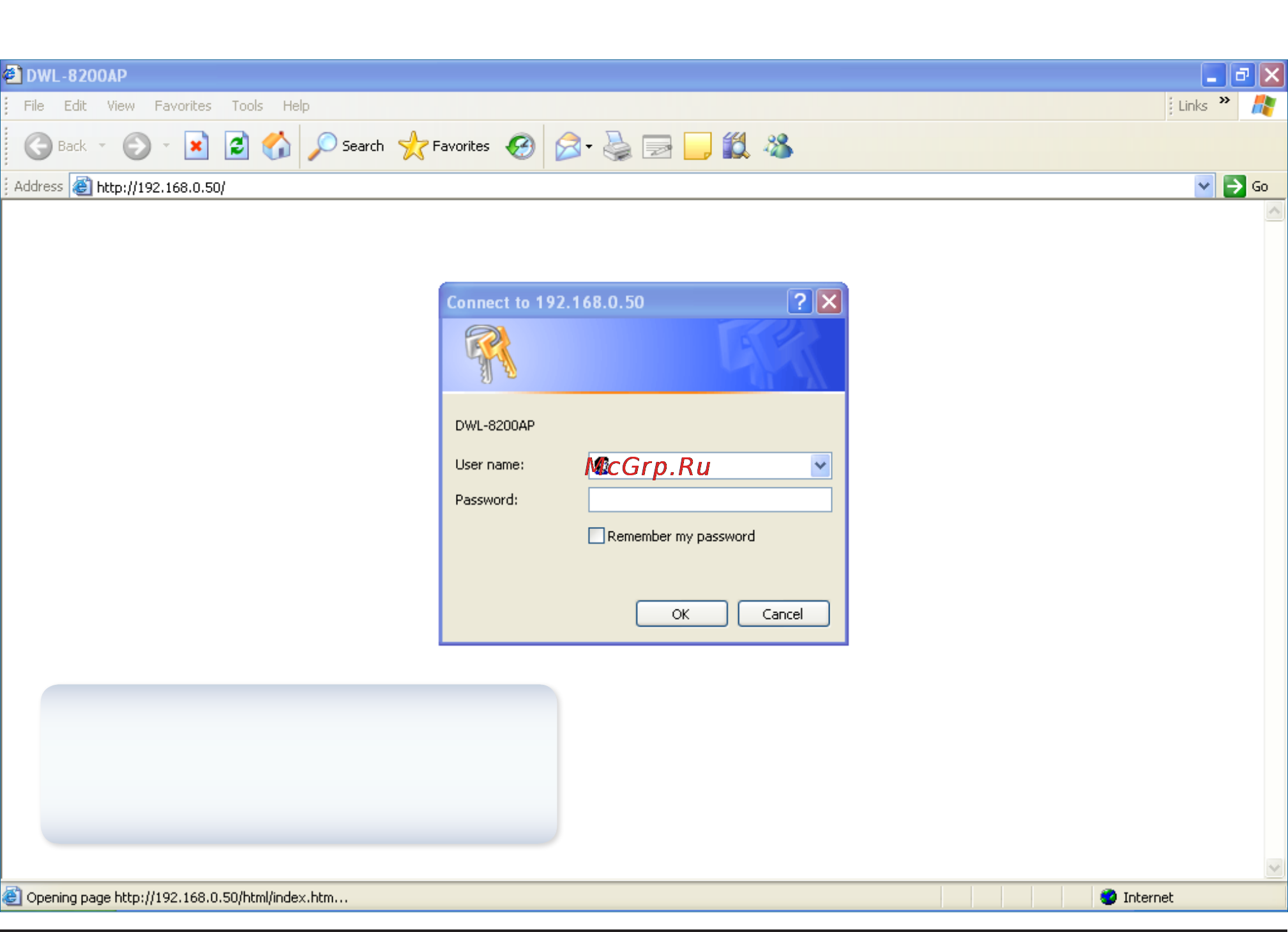

After the connection is established, you will see the user identification window as shown.
Note: If you have changed the default IP address assigned to the DWL-8200AP, make sure to enter the correct IP
address.
Configuration
• Type admin in the User Name field
• Leave the Password field blank
• Click OK
Logging In
