29
D-Link DWL-8200AP User Manual
AES is selected.
Select the interval during which the group key will be valid. The
default value of 1800 is recommended.
W h e n yo u s e l e c t W PA - Pe r s o n a l , W PA 2 - Pe rs o n a l , o r
WPA-Auto-Personal,
please enter a PassPhrase in the corresponding
field.
Cipher Type:
Group Key Update
Interval:
PassPhrase:

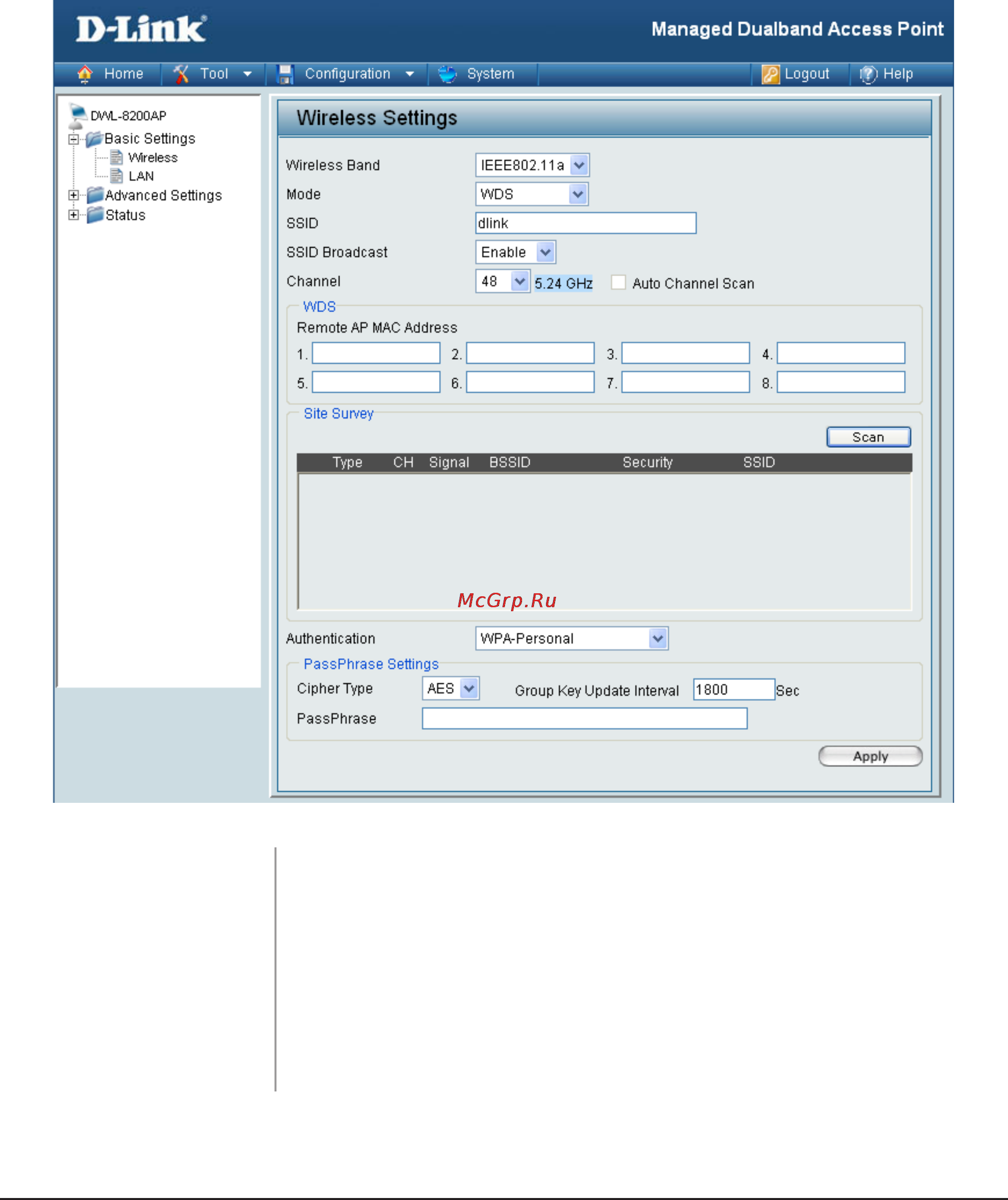

Home > Basic Settings > Wireless > WDS Mode >
WPA-Personal, WPA2-Personal, WPA-Auto Personal
