D-Link DWL-8600AP [26/95] Home basic settings wireless wds mode
![D-Link DWL-8600AP [26/95] Home basic settings wireless wds mode](/views2/1044835/page26/bg1a.png)
26
D-Link DWL-8200AP User Manual
In WDS, the DWL-8200AP wirelessly connects multiple networks, without functioning
as a wireless AP.
Select either IEEE 802.11a or IEEE 802.11g
WDS is selected from the pull-down menu.
Service Set Identifier (SSID) is the name designated for a specific
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network or to establish a new wireless network.
Wireless Band:
Mode:
SSID:

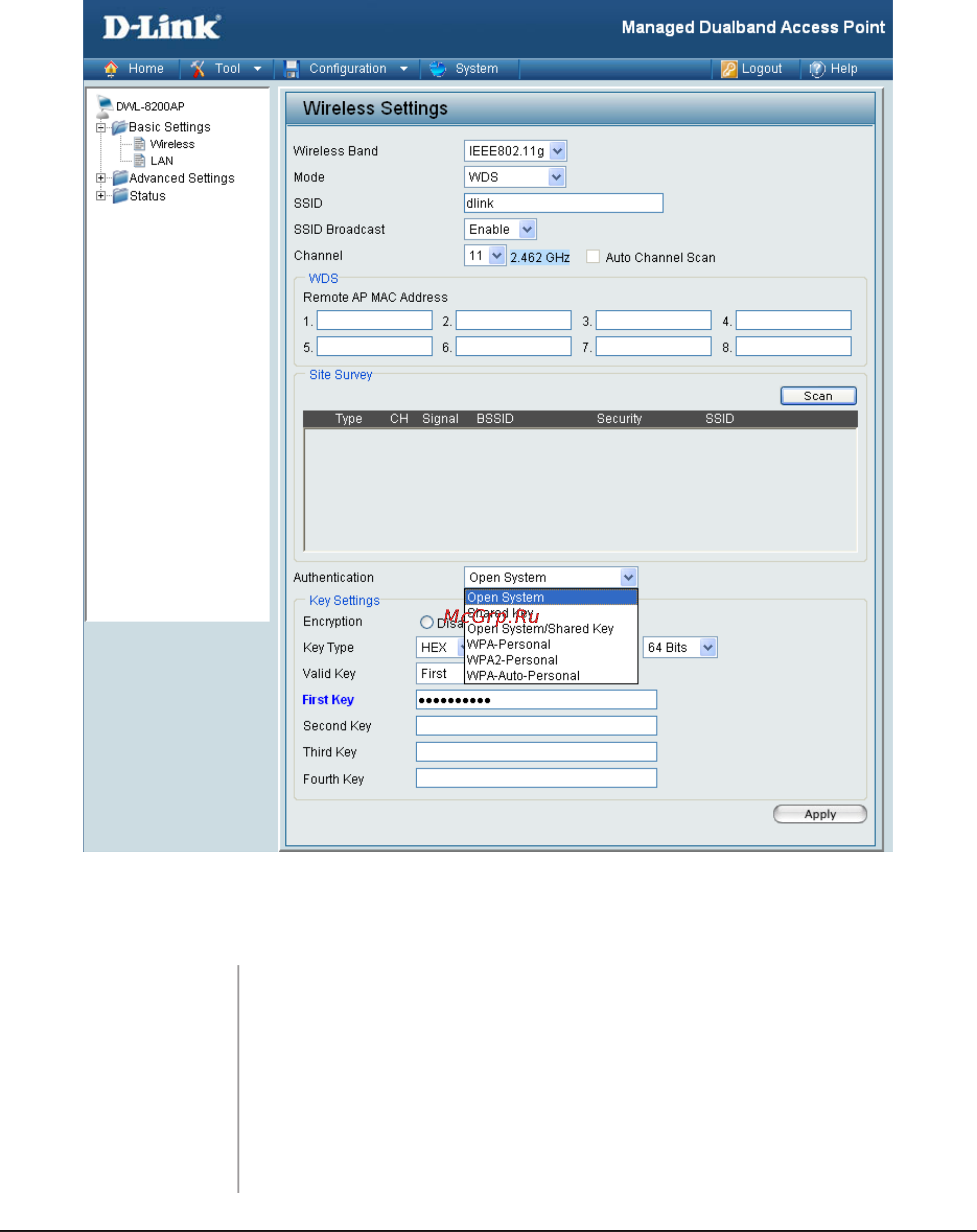

Home > Basic Settings > Wireless > WDS Mode
