64
D-Link DWL-8200AP User Manual

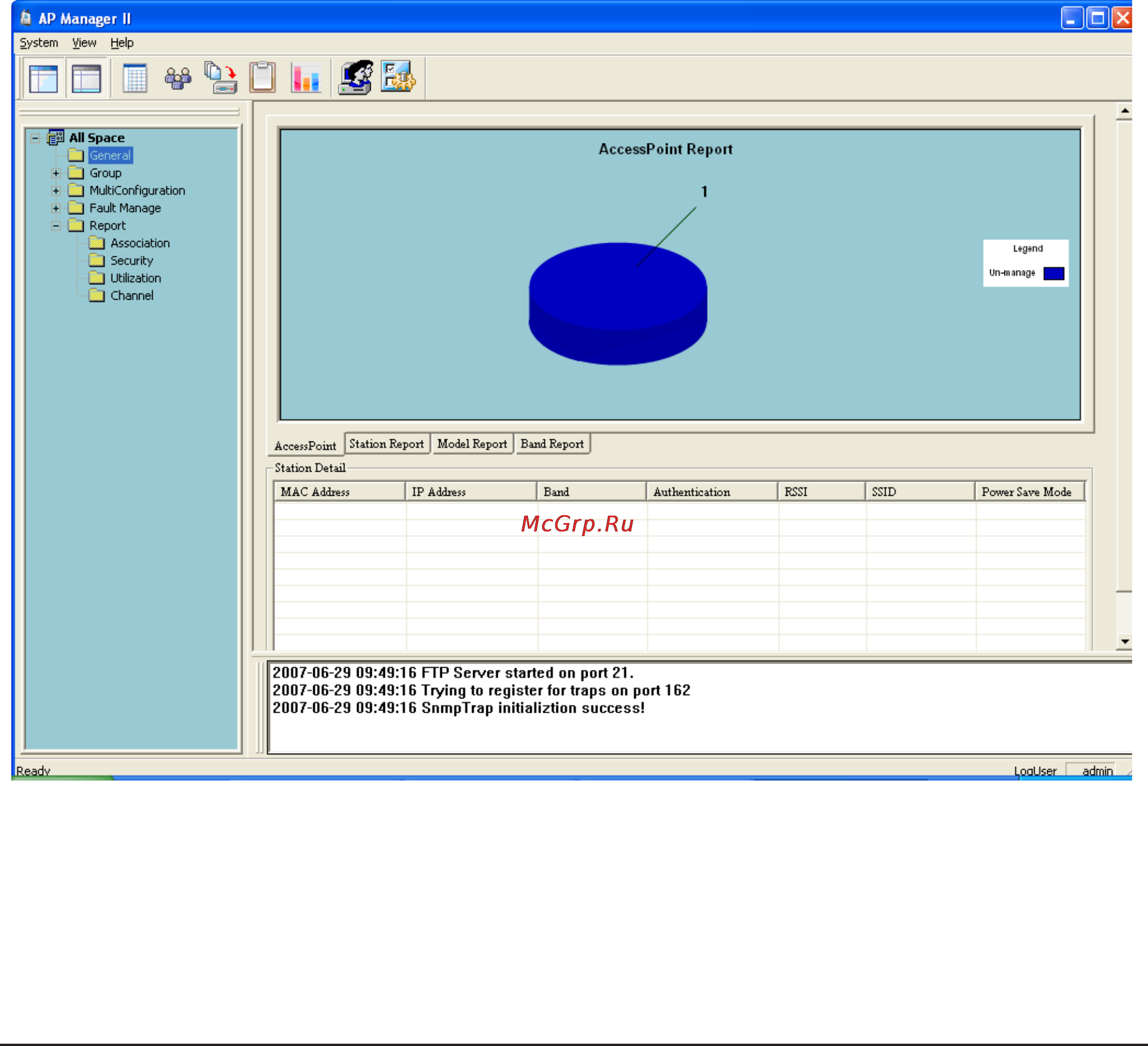

AP Manager II
AP Manager II is a convenient software tool used to manage the configuration of your wireless
network from a central computer. With AP Manager II there is no need to configure devices
individually.
AP Manager II allows you to configure AP settings, update the firmware, and organize and sort
your APs into manageable groups.
Please see the AP Manager II User Manual included on the CD for system requirements,
installation considerations, and information on the software functionality.
