D-Link DWL-8600AP [28/95] Wep encryption
![D-Link DWL-8600AP [28/95] Wep encryption](/views2/1044835/page28/bg1c.png)
28
D-Link DWL-8200AP User Manual
Select Disabled or Enabled. (Disabled is selected here).
Select HEX or ASCII.
Select 64-bit, 128-bit, or 152 bits.
Select the 1st through the 4th key to be the active key.
Input up to four keys for encryption. You will select one of these keys
in the valid key field.
Encryption:
Key Type:
Key Size:
Valid Key:
First through
Fourth keys:
* Hexadecimal digits consist of the numbers 0-9 and the letters A-F.
ASCII (American Standard Code for Information Interchange) is a code for representing English letters as numbers 0-127.

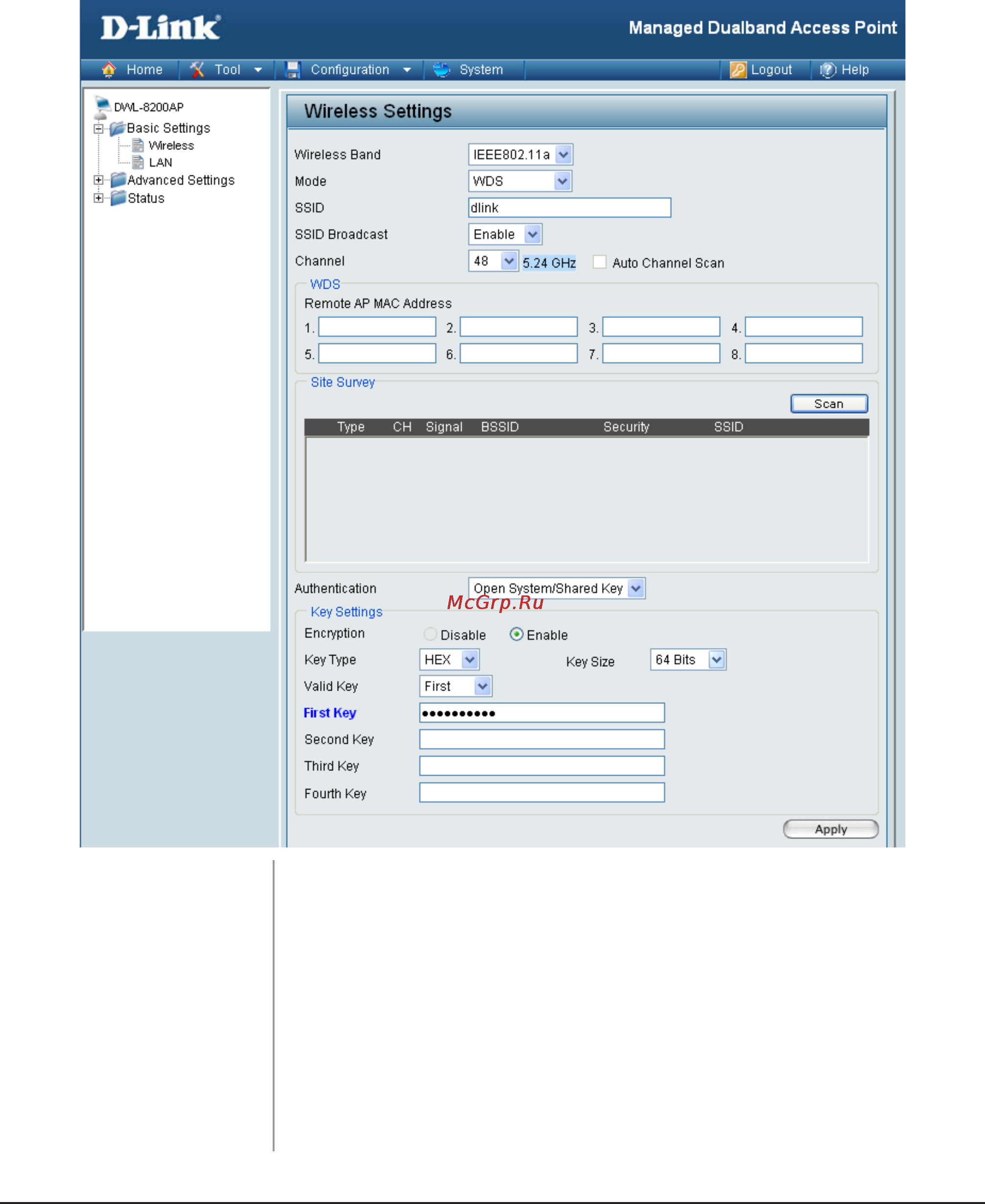

Home > Basic Settings > Wireless > WDS Mode >
WEP Encryption
