59
D-Link DWL-8200AP User Manual

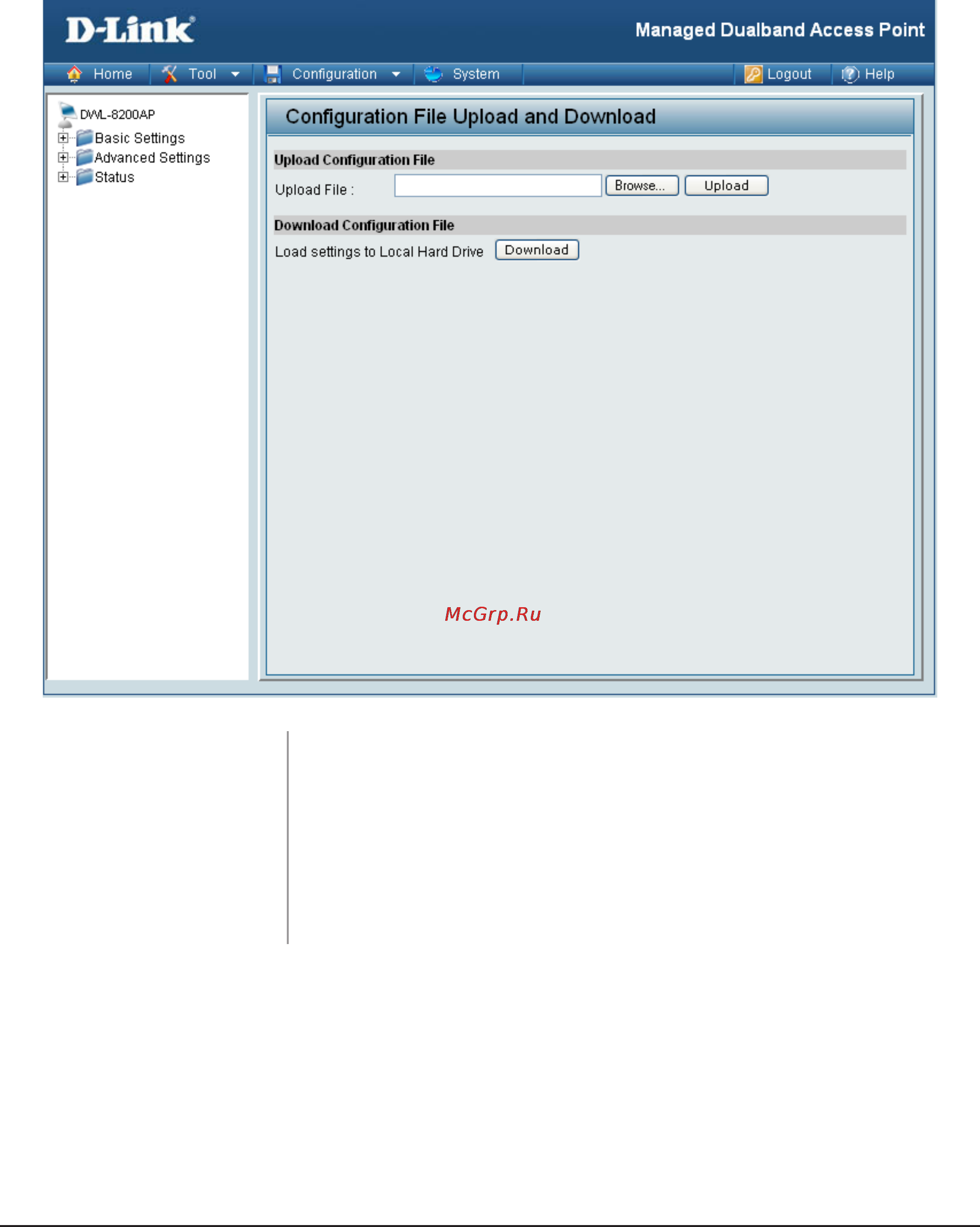

Tool > Configuration File Upload and Download
Download
Configuration File:
Click Download to save the current DWL-8200AP configuration
to your local computer.
Upload File:
Click Browse to locate a previously saved configuration file on
your local computer. After selecting the file, click Upload to apply
the configuration settings to the DWL-8200AP.
