21
D-Link DWL-8200AP User Manual
When you select WPA-Personal, WPA2-Personal, or WPA-Auto-Personal
,
you must select AUTO, AES, or TKIP from the pull-down menu.
Select the interval during which the group key will be valid. The default
value of 1800 is recommended.
When you select WPA-Personal, WPA2-Personal, or WPA-Auto-Personal
,
please enter a PassPhrase in the corresponding field.
Cipher Type:
Group Key Update
Interval:
PassPhrase:

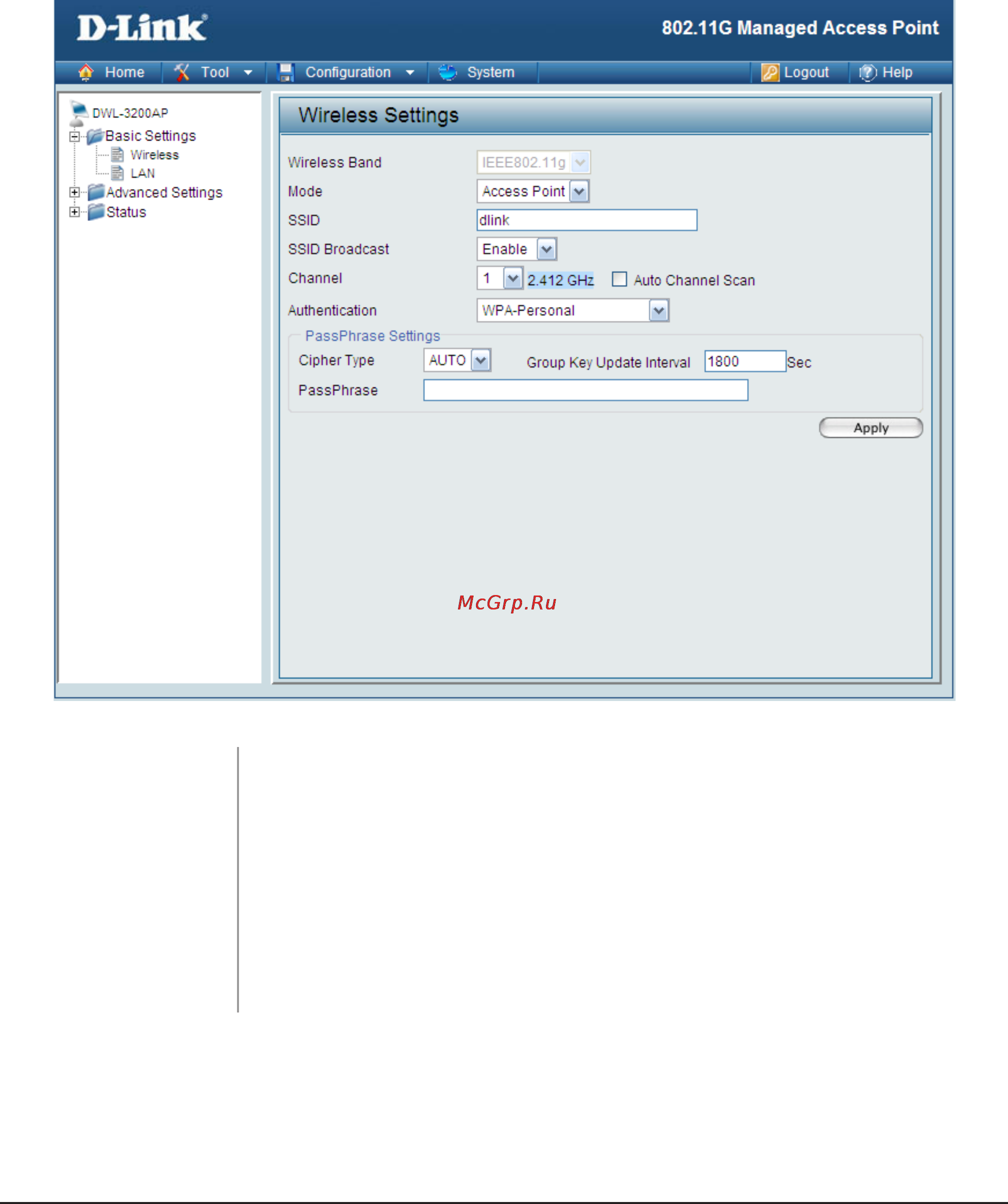

Home > Basic Settings > Wireless >
WPA-Personal, WPA2-Personal & WPA-Auto Personal
