49
D-Link DWL-8200AP User Manual
Home > Status > Client Information

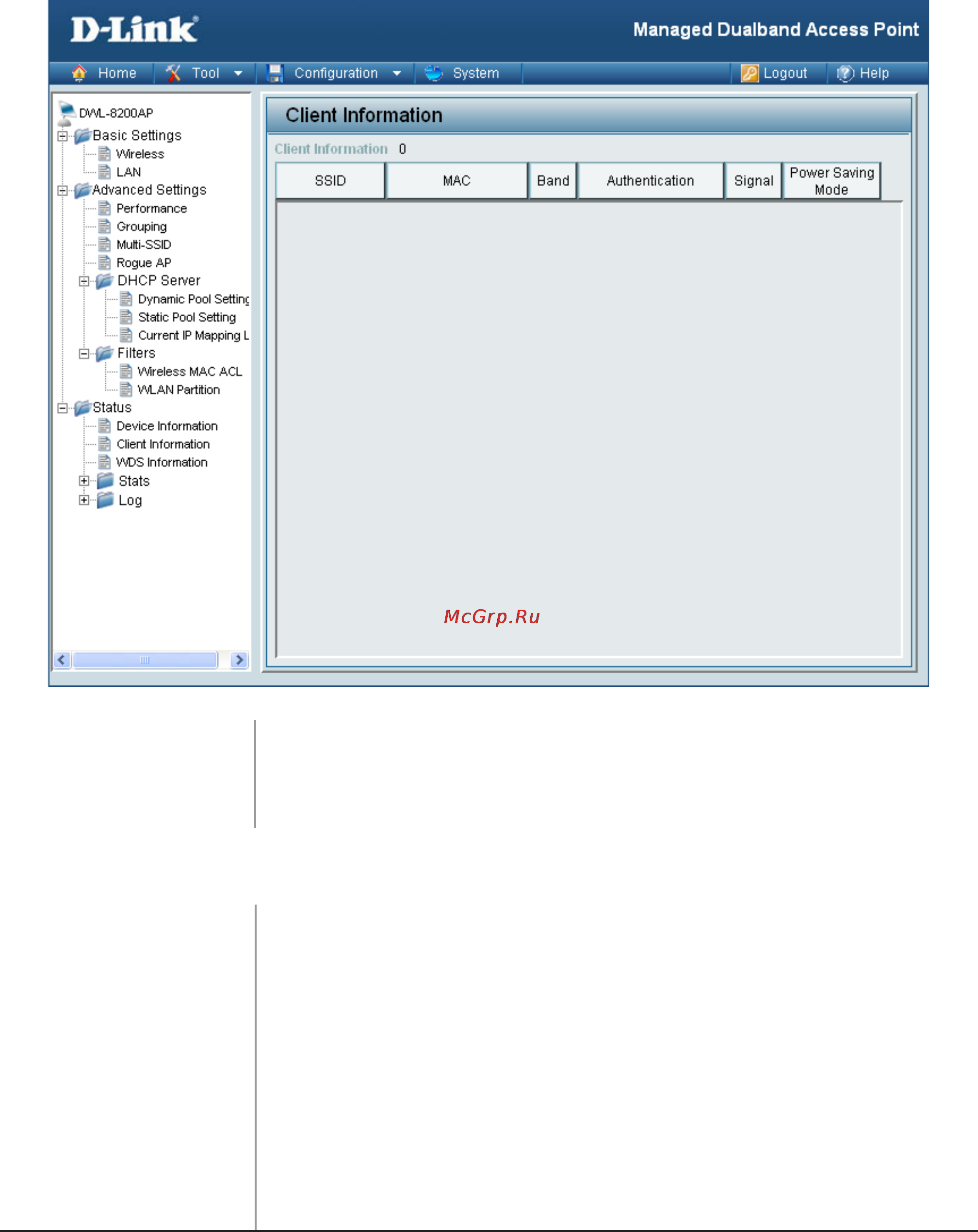

Client Information:
This window displays the wireless client information for clients
currently connected to the DWL-8200AP.
The following infor mation is available for each client communicating with the
DWL-8200AP.
Displays the MAC address of the client.
MAC:
Displays the wireless band the client is connected on.
Band:
Displays the type of authentication being used.
Authentication:
Displays the strength of the clients signal.
Signal:
Displays the status of the power saving feature.
Power Saving
Mode:
Displays the SSID the client is connected to.
SSID:
