40
D-Link DWL-8200AP User Manual

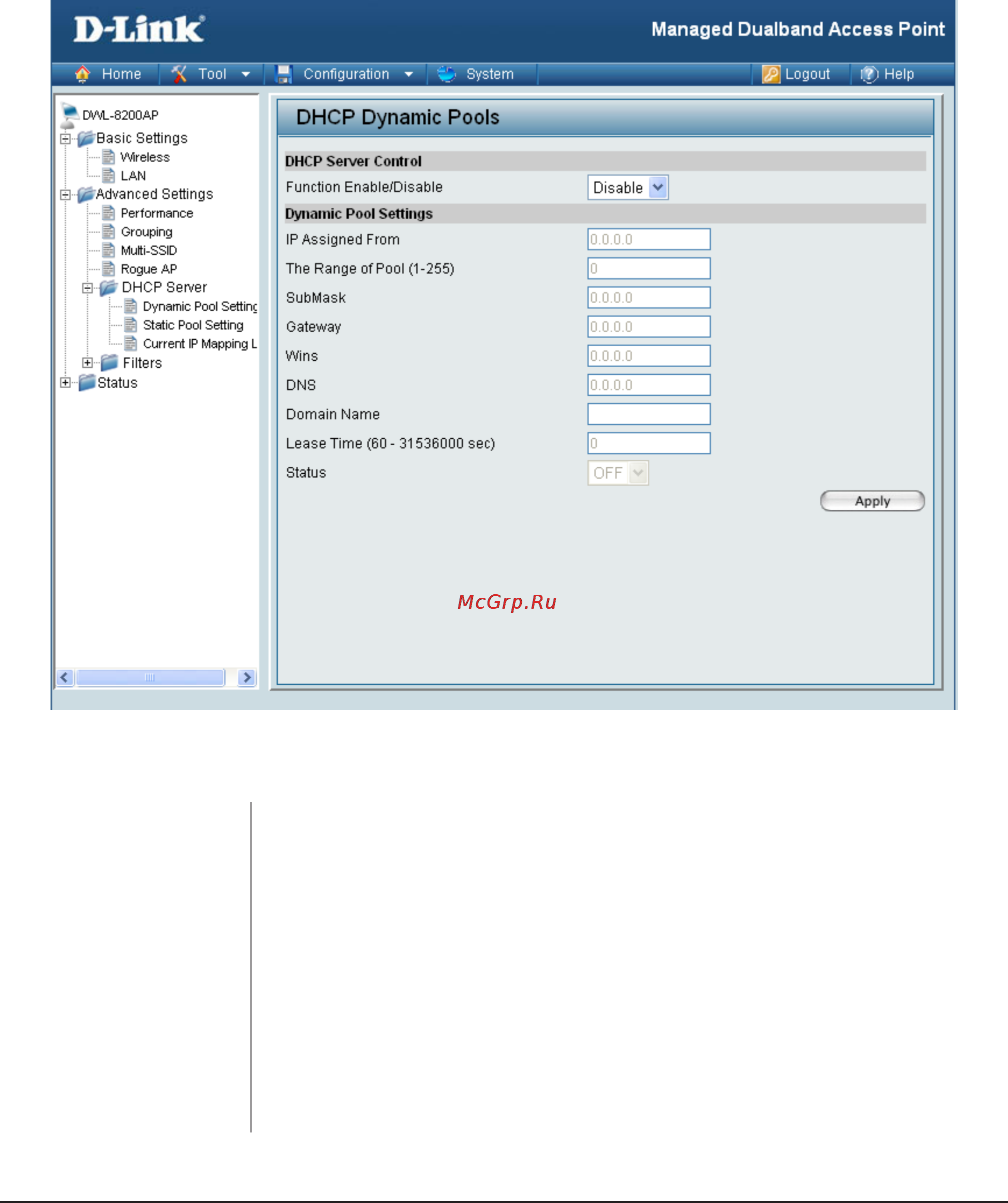

DHCP Server
Control:
IP Assigned From:
The Range of Pool
(1-255):
Dynamic Host Configuration Protocol assigns dynamic IP
addresses to devices on the network. This protocol simplifies
network management and allows new wireless devices to receive
IP addresses automatically without the need to manually assign
new IP addresses.
Select Enable to allow the DWL-8200AP to function as a DHCP
server.
Input the first IP address available for assignment in your network.
Enter the number of IP addresses available for assignment.
Home > Advanced Settings > DHCP Server >
Dynamic Pool Settings
