32
D-Link DWL-8200AP User Manual

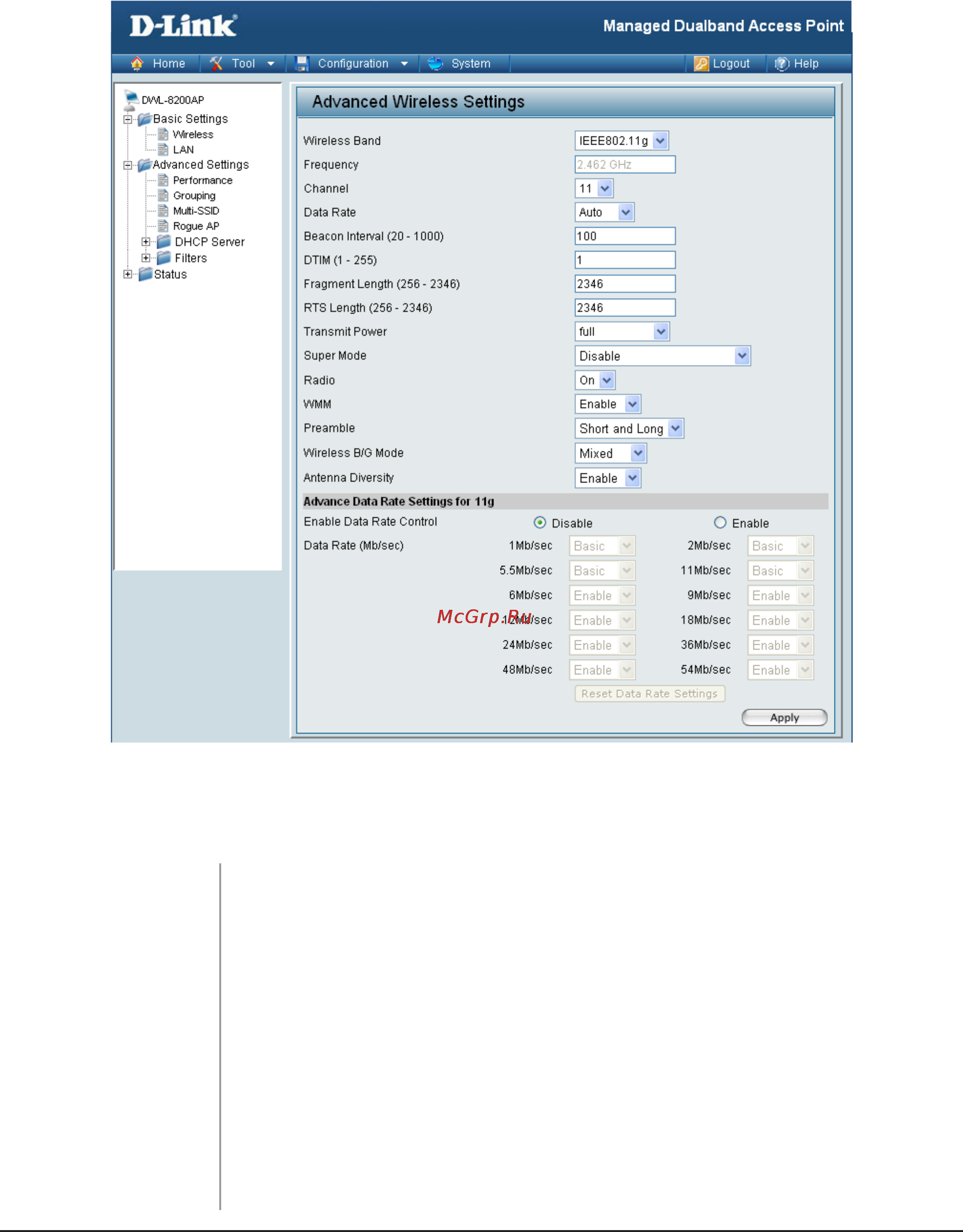

By changing radio parameters in the performance section, you can customize the radio network
to fit your needs. Performance functions are designed for more advanced users who are familiar
with 802.11 wireless networks and radio configuration.
Wireless Band:
Frequency:
Channel:
Select IEEE 802.11a or IEEE 802.11g from this pull-down menu.
Displays the current frequency for the wireless network. The frequency
reflects the choice of the wireless band.
Indicates the channel setting for the DWL-8200AP. The channel can be
changed to fit the channel setting for an existing wireless network or to
customize the wireless network. The channel of an 802.11a network may
not be set manually in certain regions (e.g. Europe and USA) in order to
comply with DFS (Dynamic Frequency Selection).
Channel
Home > Advanced Settings > Performance
