53
D-Link DWL-8200AP User Manual

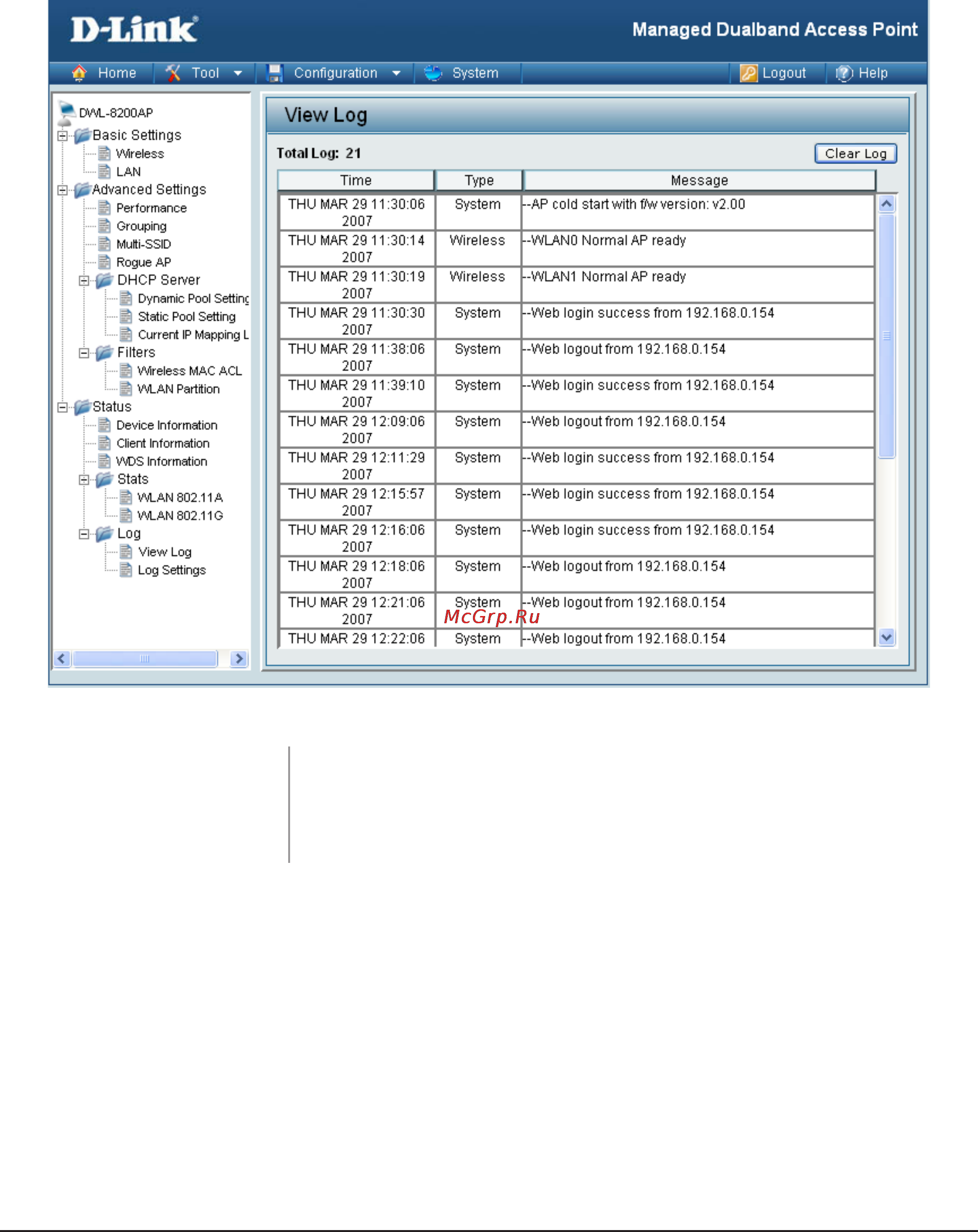

View Log:
The log displays system and network messages including a time
stamp and message type.
Home > Status > Log > View Log
