39
D-Link DWL-8200AP User Manual

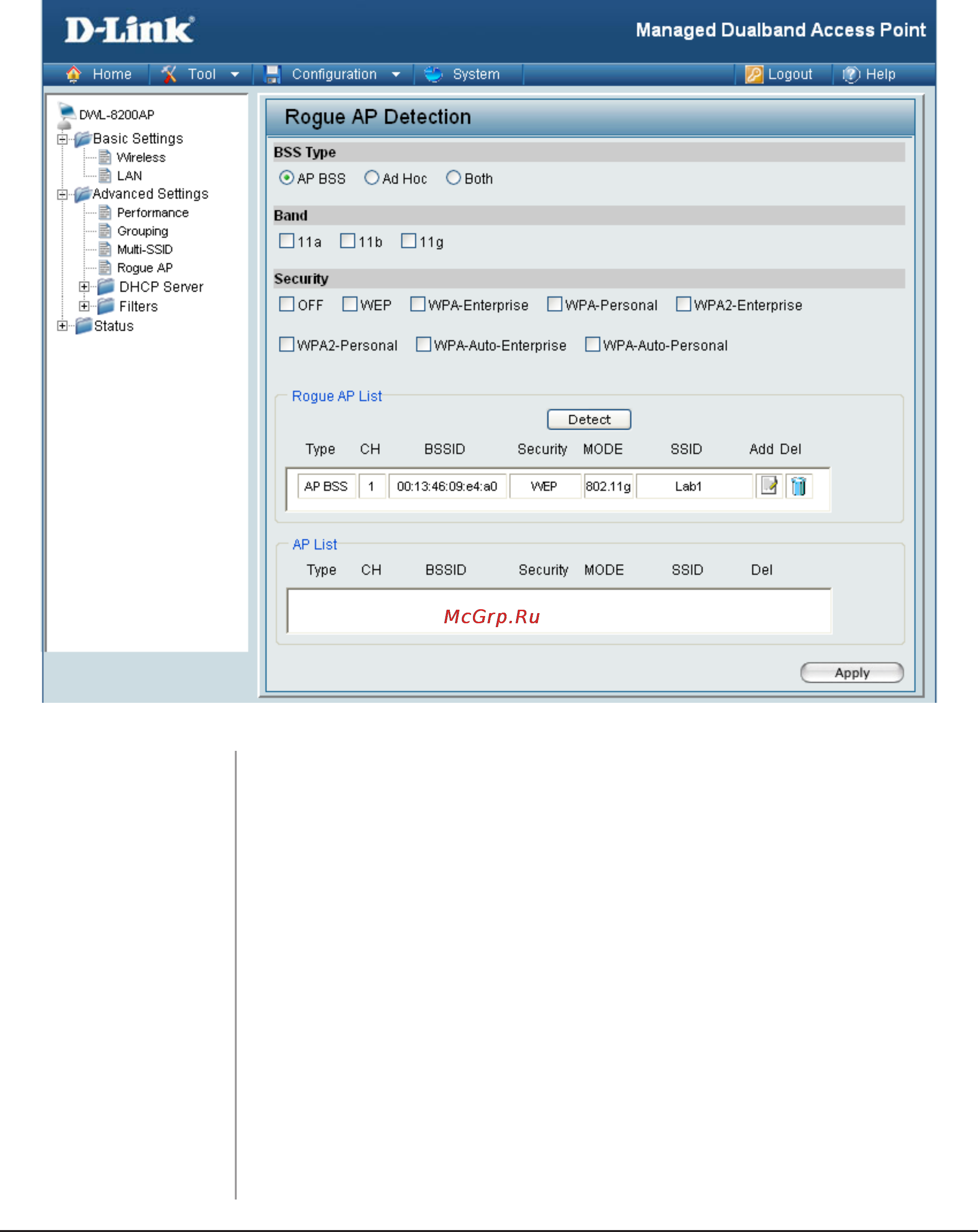

Home > Advanced Settings > Rogue AP
Select the Security type (Off, WEP, WPA, or WPA2) that you
would like to be consider during AP detection.
This window shows all of the neighbor APs detected, which is
based on your criteria from above (BSS Type, Band, and Security).
If the AP is in the same network, or if you know the AP, just click
on “Add” to save it to the AP list.
This window shows all of the APs that are allowed access on
the network.
Security:
Rogue AP List:
AP List:
The Basic Service Set Type allows you to select from AP BSS, Ad
Hoc, or Both.
Select the type of network (bands 11a, 11b, and 11g) that you would
like the AP detection to search on.
BSS Type:
Band:
