60
D-Link DWL-8200AP User Manual

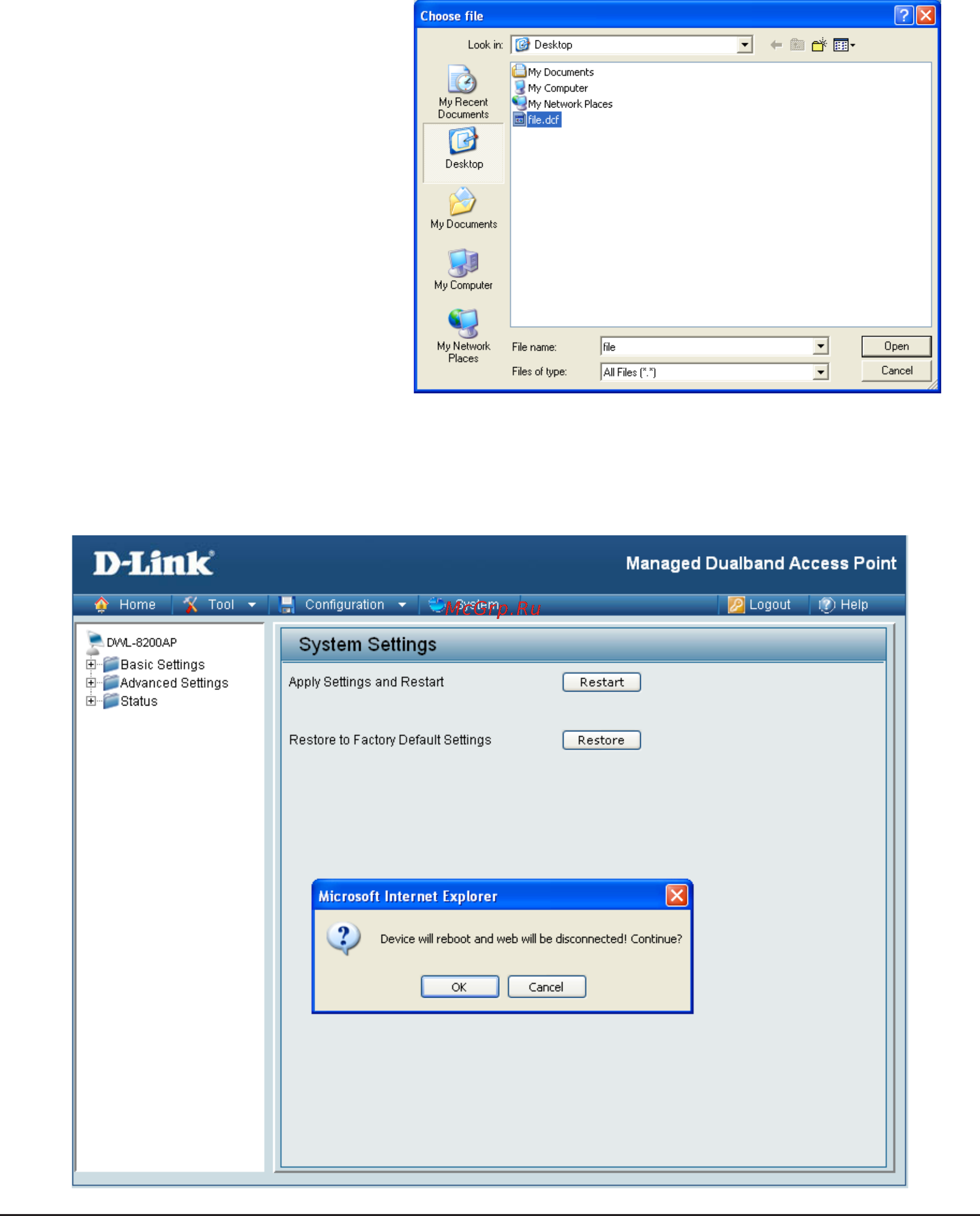

When you click Browse on the
Upload screen, a dialog box appears.
Select the file you wish to download
and click Open.
Tool > Configuration File > Upload
Click Restart for the settings to take effect. When prompted, click OK, and the device will restart.
Please wait for a few seconds.
