D-Link DWL-8600AP [75/95] Xp 2000
![D-Link DWL-8600AP [75/95] Xp 2000](/views2/1044835/page75/bg4b.png)
75
D-Link DWL-8200AP User Manual

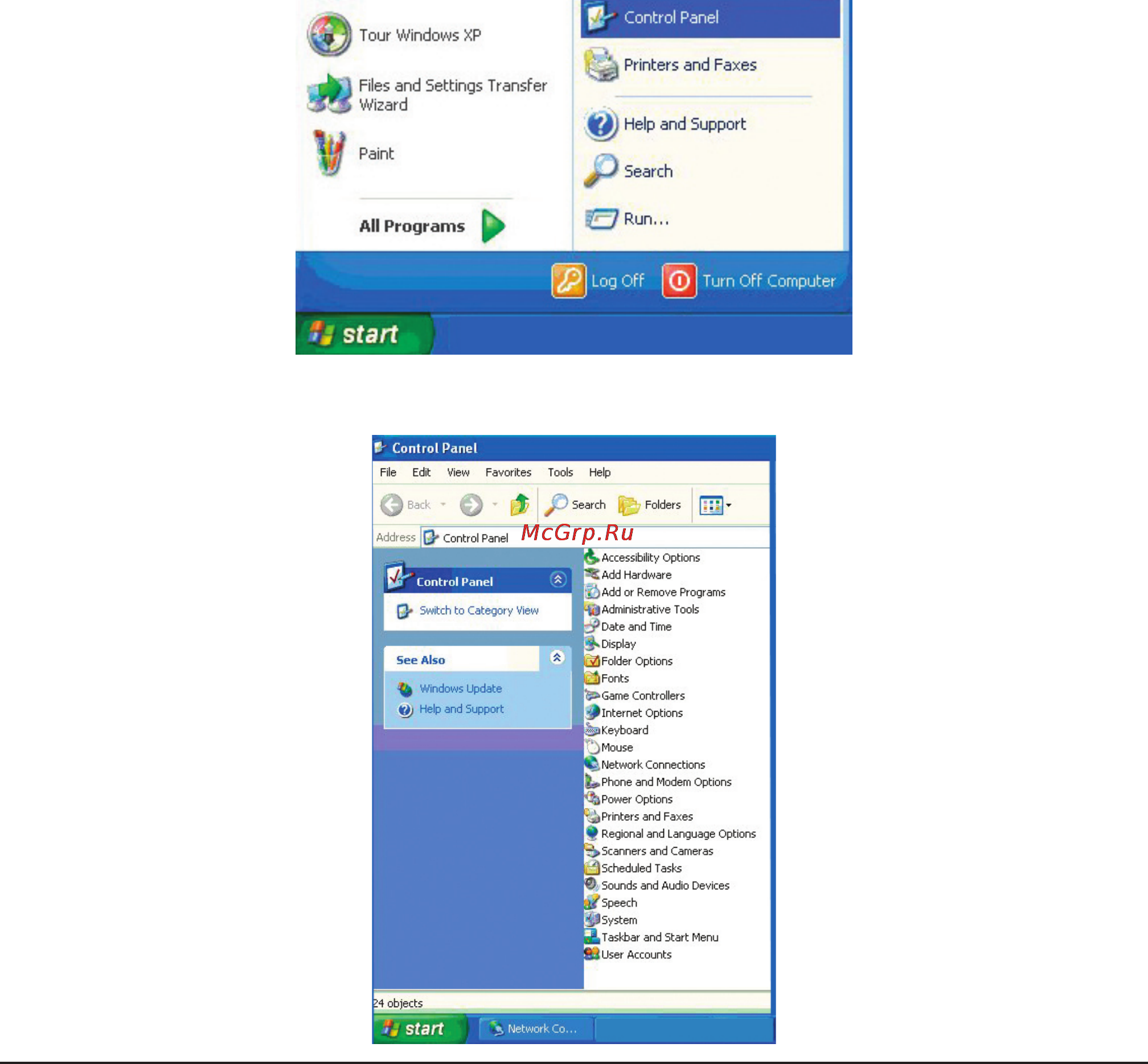

Go to Start.
Double-click on Control Panel.
Assigning a Static IP Address in Windows
®
XP/2000
Double-click on Network Connections.
Note: DHCP-enabled routers will automatically assign IP addresses to the computers on the
network, using DHCP (Dynamic Host Configuration Protocol) technology. If you are using a
DHCP-capable router you will not need to assign static IP addresses.
If you are not using a DHCP capable router, or you need to assign a static IP address, please
follow these instructions:
