62
D-Link DWL-8200AP User Manual

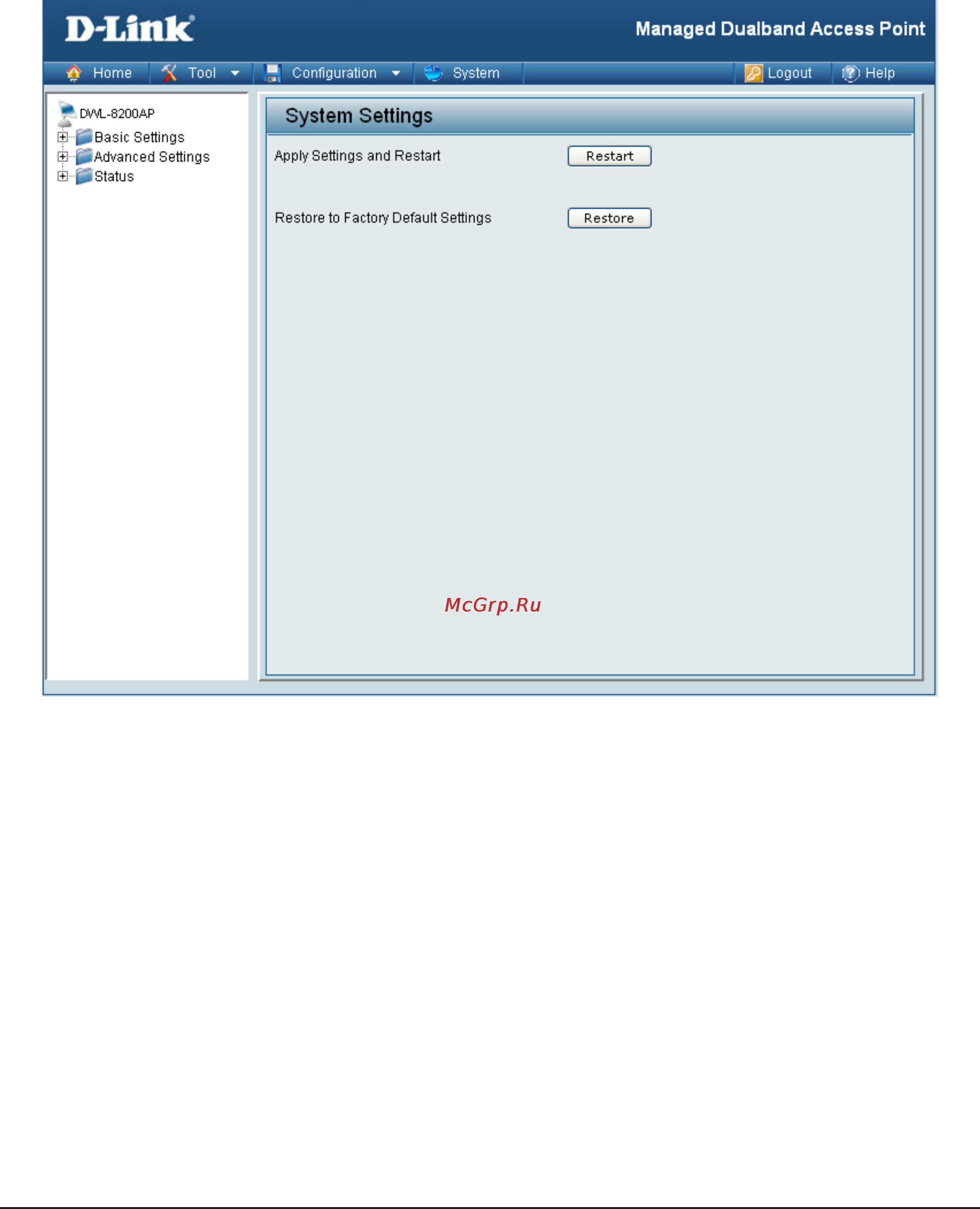

System > System Settings
Click Restart to restart the DWL-8200AP.
Click Restore to restore the DWL-8200AP back to factory default settings.
