65
D-Link DWL-8200AP User Manual
Using the Network Setup Wizard in Windows
®
XP
In this section you will learn how to establish a network at home or work, using Windows
®
XP.
Note: Please refer to websites such as http://www.homenethelp.com
and http://www.microsoft.com/windows2000 for information about networking computers using
Windows
®
2000.
Go to Start > Control Panel>Network Connections
Select Set up a home or small office network

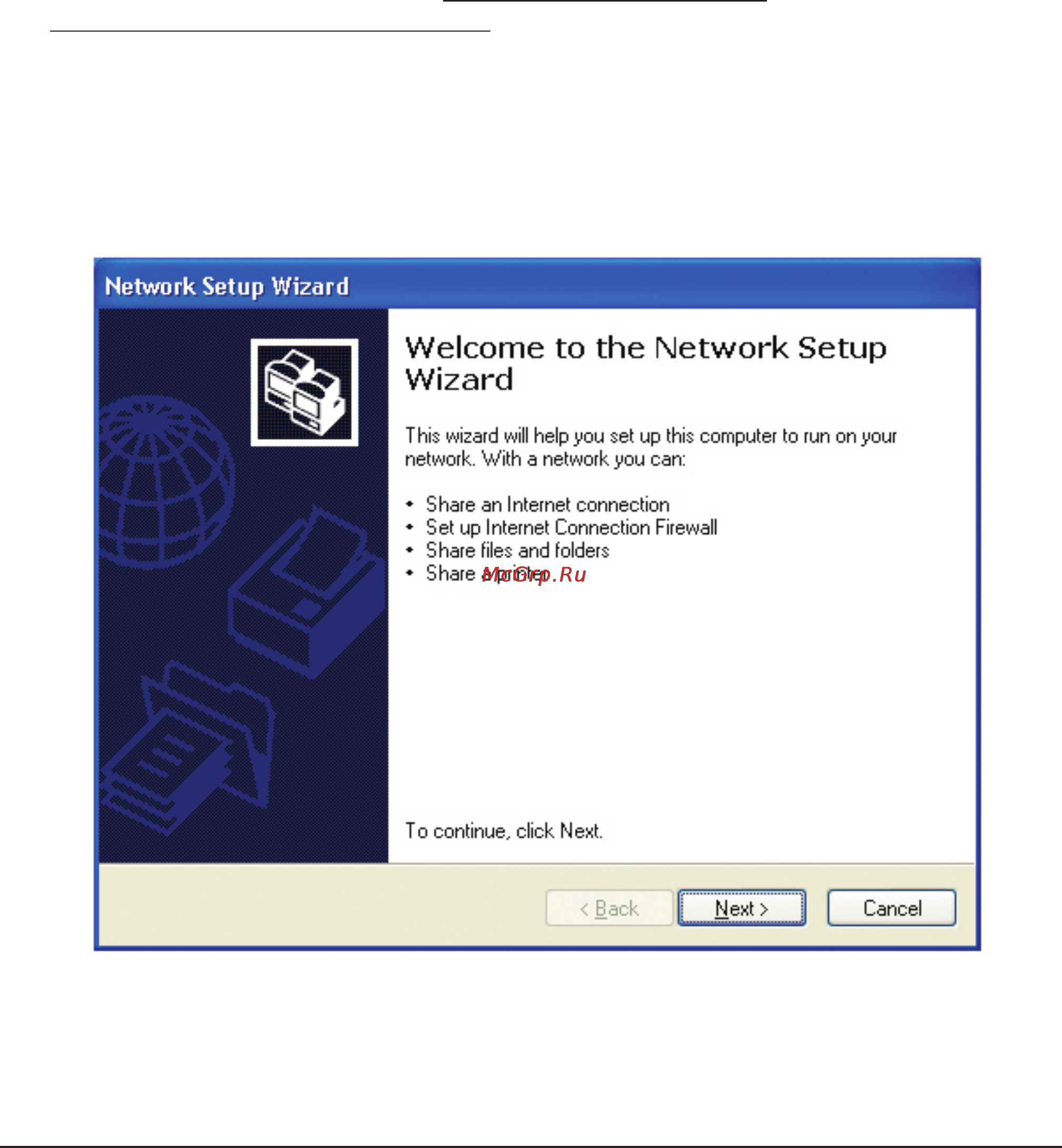

When this screen appears, click Next.
Networking Basics
